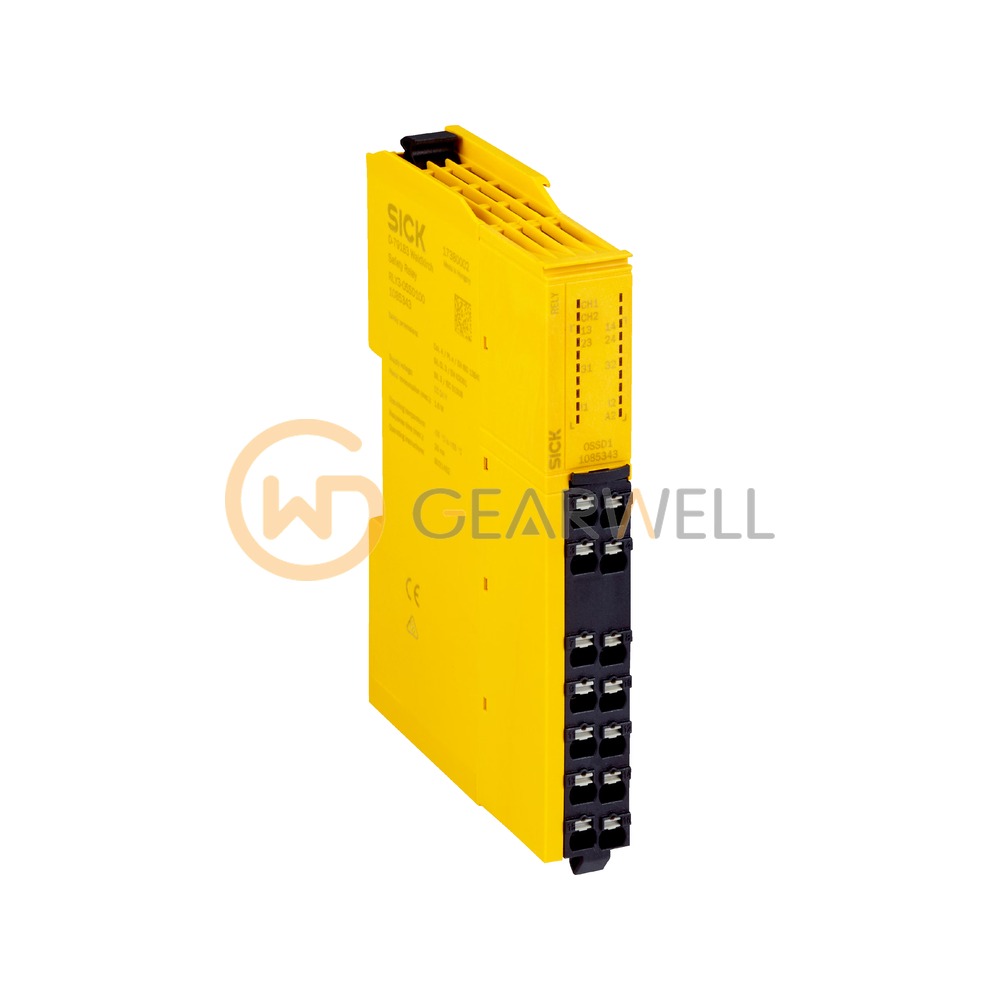

SICK 1085343 RLY3-OSSD100 Safety Relay Output Expansion Module
- Brand
- SICK
- Model
- 1085343
- GEARWELL SKU
- GWP-000009617
- Category
- Machine Safety & Vision
Key specifications
- Outputs
- 2 enabling current paths (safe), 1 feedback current path (for use as external device monitoring, not safe)
- Type code
- RLY3-OSSD100
- Applications
- Output expansion module for OSSDs
- Sensor types
- Safety sensors with OSSDs
- Housing width
- 18 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1085343 RLY3-OSSD100 Safety Relay Output Expansion Module |
|---|---|
| Brand | SICK |
| Model | 1085343 |
| Category | Machine Safety & Vision |
| Outputs | 2 enabling current paths (safe), 1 feedback current path (for use as external device monitoring, not safe) |
| Type code | RLY3-OSSD100 |
| Applications | Output expansion module for OSSDs |
| Sensor types | Safety sensors with OSSDs |
| Housing width | 18 mm |
| Connection type | Front connector with spring terminals |
| Restart interlock | no |
| External device monitoring (EDM) | Via path |
