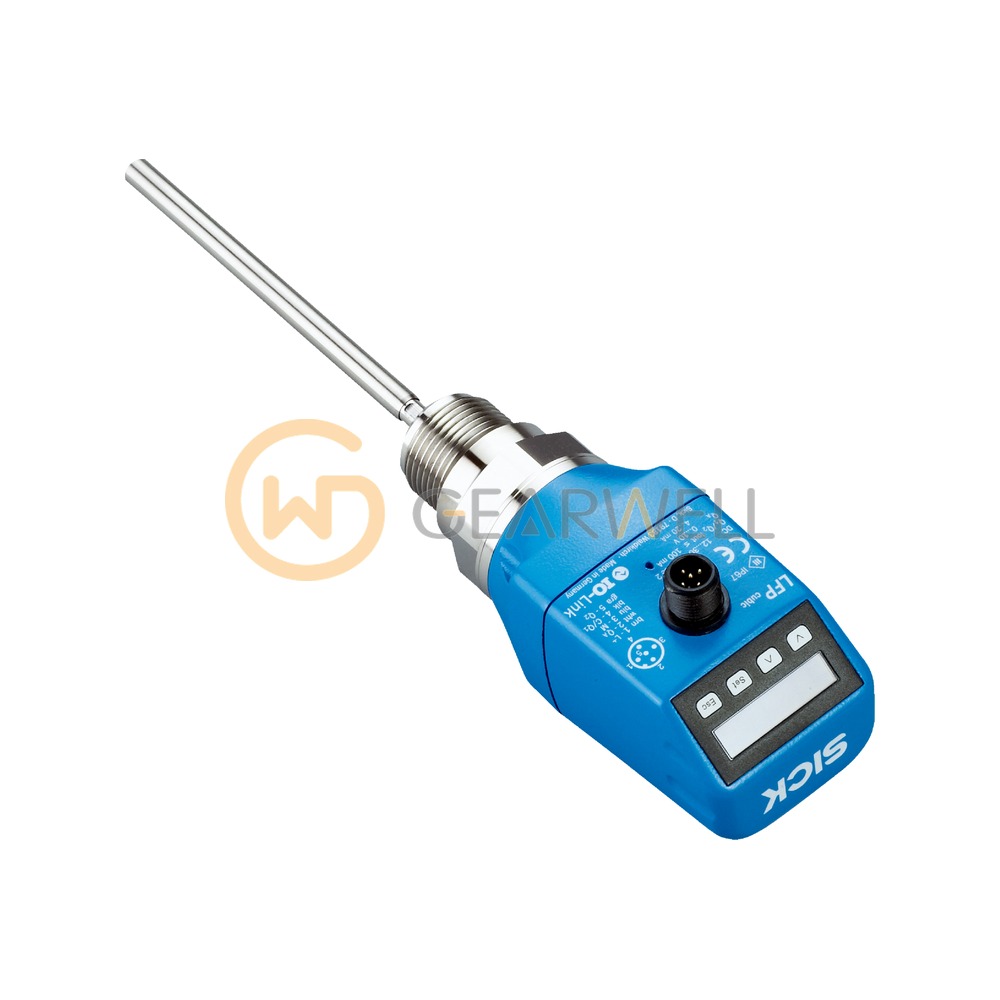

SICK 1080502 LFP1520-B5NMC LFP Cubic TDR Level Sensor
- Brand
- SICK
- Model
- 1080502
- GEARWELL SKU
- GWP-000013791
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Exchangeable probe 1.4404/316L
- Housing
- Plastic housing with display
- Probe length
- 1520 mm
- Analog output
- 4 ... 20 mA / 0 ... 10 V, switchable
- Article number
- 1080502
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1080502 LFP1520-B5NMC LFP Cubic TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1080502 |
| Category | Pressure, Flow & Temperature |
| Probe | Exchangeable probe 1.4404/316L |
| Housing | Plastic housing with display |
| Probe length | 1520 mm |
| Analog output | 4 ... 20 mA / 0 ... 10 V, switchable |
| Article number | 1080502 |
| Process rating | 100 °C, 10 bar |
| Connection type | Connector M12x1, 8-pin |
| Type designation | LFP1520-B5NMC |
| Switching outputs | Q1/Q2/Q3/Q4: PNP/NPN switchable |
| Process connection | 3/4" NPT |
