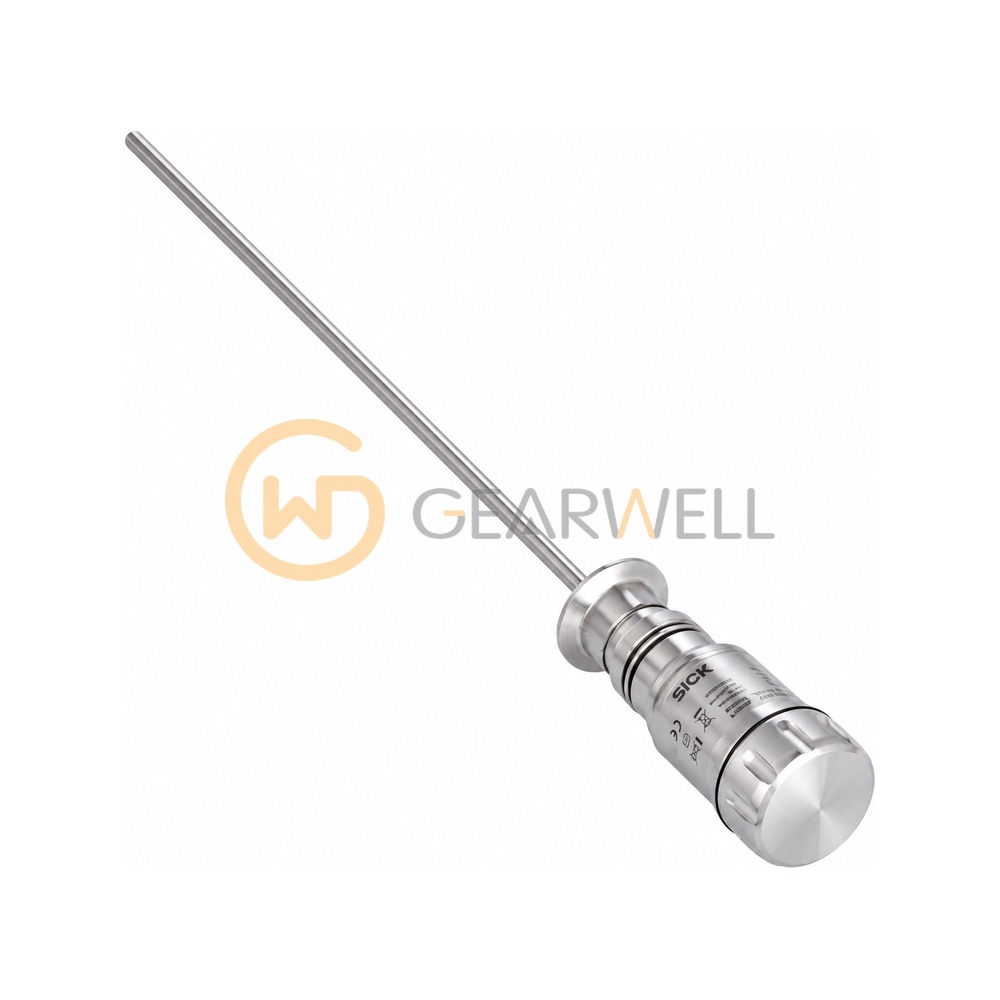

SICK 1073751 LFP2890-N1NMB LFP Inox TDR Level Sensor
- Brand
- SICK
- Model
- 1073751
- GEARWELL SKU
- GWP-000015179
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Mono probe 316L
- Housing
- Stainless steel housing with display, cover with window
- Probe length
- 2890 mm
- Analog output
- 4 ... 20 mA / 0 ... 10 V, switchable
- Article number
- 1073751
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1073751 LFP2890-N1NMB LFP Inox TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1073751 |
| Category | Pressure, Flow & Temperature |
| Probe | Mono probe 316L |
| Housing | Stainless steel housing with display, cover with window |
| Probe length | 2890 mm |
| Analog output | 4 ... 20 mA / 0 ... 10 V, switchable |
| Article number | 1073751 |
| Process rating | CIP/SIP suitable, 150 °C, 16 bar |
| Connection type | Connector M12x1, 5-pin |
| Type designation | LFP2890-N1NMB |
| Switching outputs | Q1: PNP fixed; Q2: PNP or NPN configurable |
| Process connection | 3/4" NPT |
