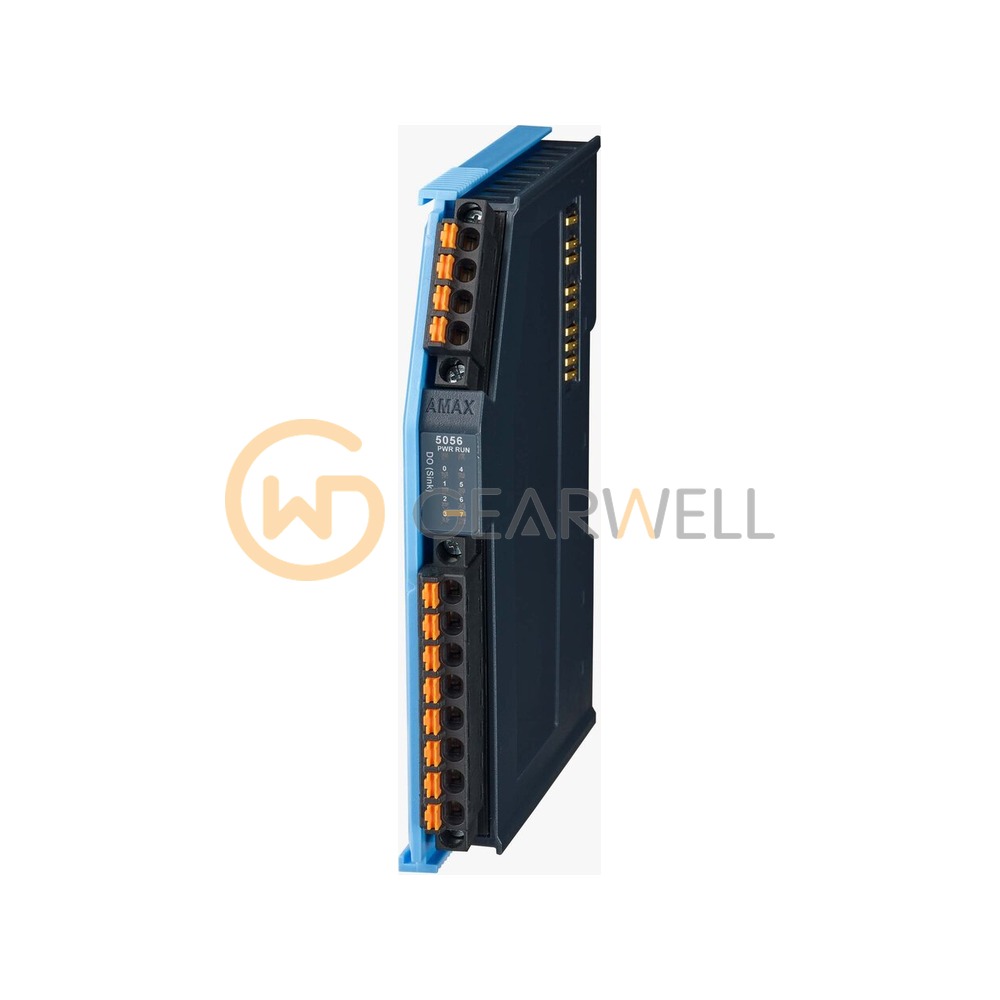

SALZ Automation SA-AMAX-5056-A AMAX 8-Ch Digital Output EtherCAT I/O
- Brand
- SALZ Automation
- Model
- SA-AMAX-5056-A
- GEARWELL SKU
- GWP-000012169
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 80 g
- Fieldbus
- EtherCAT, 100 Mbps
- Connector
- Pluggable 4-pole + 8-pole push-in terminal
- Isolation
- 2,000 VDC
- Rated voltage
- 10 ... 30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SALZ Automation SA-AMAX-5056-A AMAX 8-Ch Digital Output EtherCAT I/O |
|---|---|
| Brand | SALZ Automation |
| Model | SA-AMAX-5056-A |
| Category | PLCs & I/O |
| Weight | approx. 80 g |
| Fieldbus | EtherCAT, 100 Mbps |
| Connector | Pluggable 4-pole + 8-pole push-in terminal |
| Isolation | 2,000 VDC |
| Rated voltage | 10 ... 30 VDC |
| Output current | 0.3 A per channel |
| Output channels | 8 (sink, NPN, GND switching) |
| Ambient temperature | -25 ... 60 °C |
| Dimensions (W x H x D) | 12 x 106 x 95 mm |
| Power consumption (max.) | 2 W @ 24 VDC |
