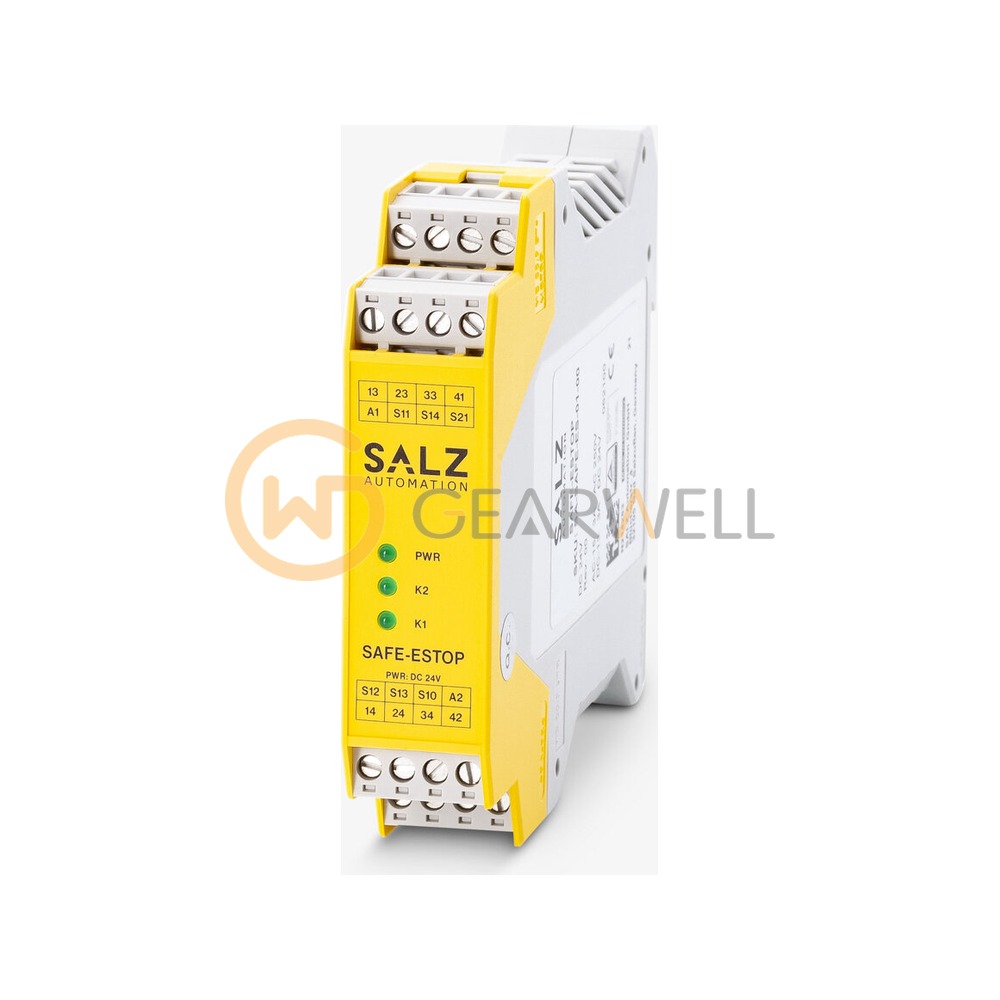

SALZ Automation SAFE-ESTOP Emergency Stop Safety Relay
- Brand
- SALZ Automation
- Model
- SAFE-ESTOP
- GEARWELL SKU
- GWP-000009597
- Category
- Machine Safety & Vision
Key specifications
- Safety rating
- SIL CL 3, PL e, Category 4
- Safety contacts
- 3 NO
- Auxiliary contacts
- 1 NC
- Dimensions (W x H x D)
- 22.5 x 99 x 114 mm
- Operating temperature
- -15 ... +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SALZ Automation SAFE-ESTOP Emergency Stop Safety Relay |
|---|---|
| Brand | SALZ Automation |
| Model | SAFE-ESTOP |
| Category | Machine Safety & Vision |
| Safety rating | SIL CL 3, PL e, Category 4 |
| Safety contacts | 3 NO |
| Auxiliary contacts | 1 NC |
| Dimensions (W x H x D) | 22.5 x 99 x 114 mm |
| Operating temperature | -15 ... +55 °C |
| Switching voltage (max.) | 250 V AC |
| Nominal operating voltage | 24 V DC |
| Contact rating 230 V AC-15 | 3 A |
