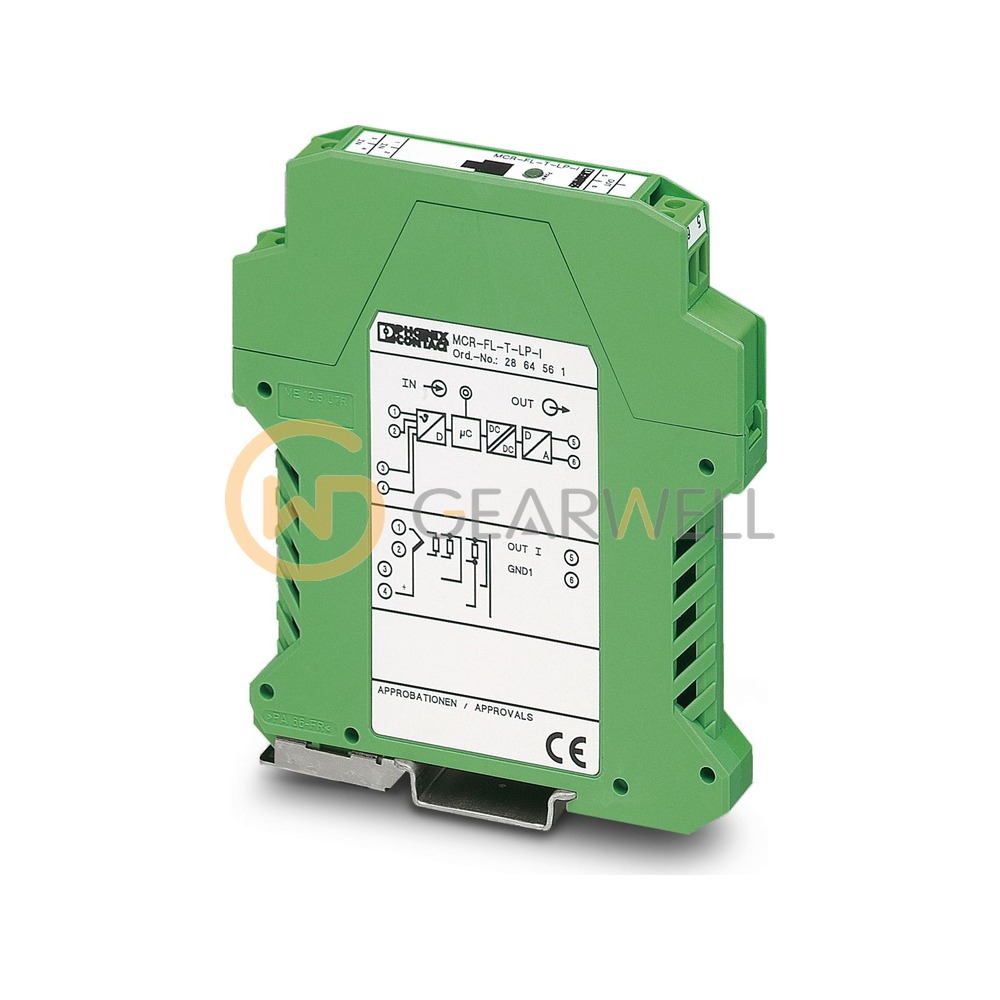

Phoenix Contact 2864561 MCR-FL-T-LP-I Temperature Transducer
- Brand
- Phoenix Contact
- Model
- 2864561
- GEARWELL SKU
- GWP-000017061
- Category
- Pressure, Flow & Temperature
Key specifications
- Order number
- 2864561
- Product type
- Temperature transmitter
- Type designation
- MCR-FL-T-LP-I
- Code as collected
- MCR-FL-T-LP-I PHOENIX CONTACT 菲尼克斯 温湿度产品
- Number of outputs
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2864561 MCR-FL-T-LP-I Temperature Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2864561 |
| Category | Pressure, Flow & Temperature |
| Order number | 2864561 |
| Product type | Temperature transmitter |
| Type designation | MCR-FL-T-LP-I |
| Code as collected | MCR-FL-T-LP-I PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Number of outputs | 1 |
| Supply voltage range | 12 V DC ... 35 V DC |
| Current output signal | 4 mA ... 20 mA |
| Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T, U; minimum measurement range 50 K/500 K |
| Sensor types (RTD) that can be used | Pt, Ni (100, 500, 1000); min. measurement range 10 K |
| Temperature measuring range: Pt 100 | -200 °C ... 850 °C (freely adjustable) |
