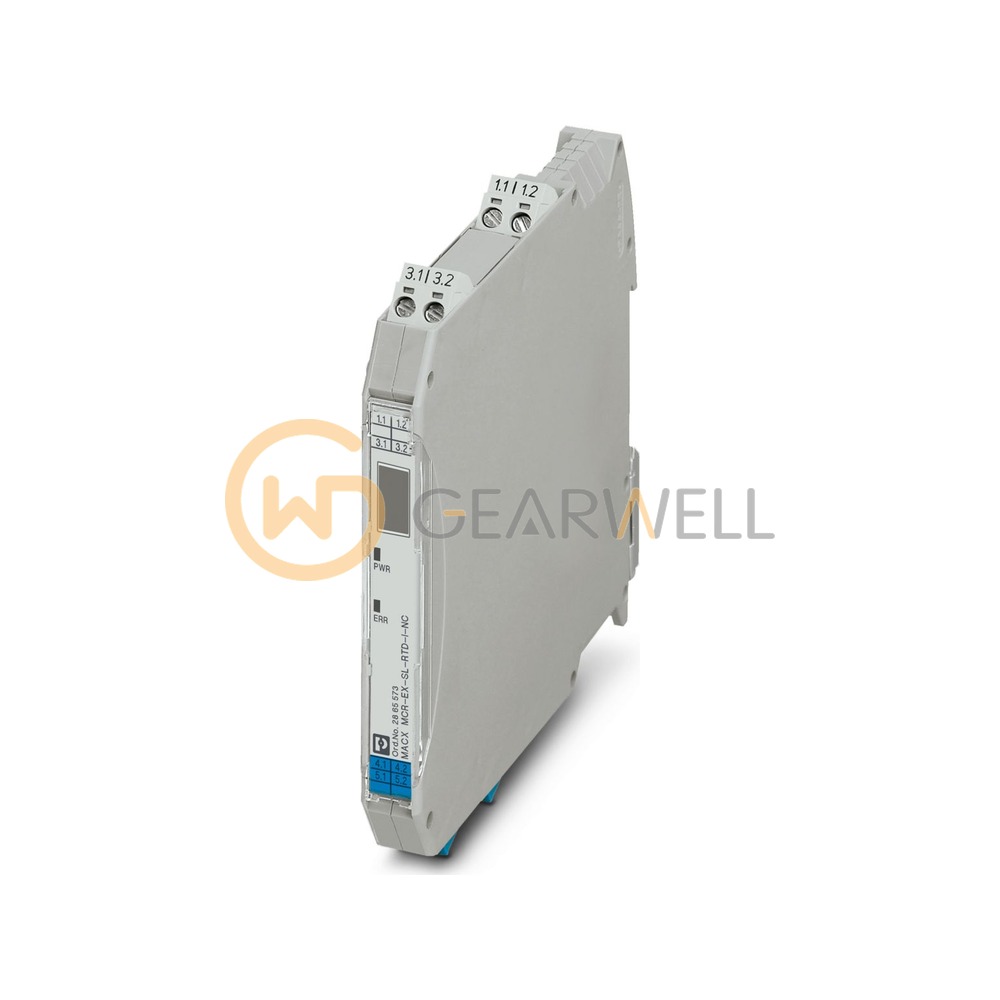

Phoenix Contact 2865573 MACX MCR-EX-SL-RTD-I-NC Temperature Transducer
- Brand
- Phoenix Contact
- Model
- 2865573
- GEARWELL SKU
- GWP-000017063
- Category
- Pressure, Flow & Temperature
Key specifications
- Order number
- 2865573
- Product type
- Temperature transmitter
- Type designation
- MACX MCR-EX-SL-RTD-I-NC
- Code as collected
- MACX MCR-EX-SL-RTD-I-NC PHOENIX CONTACT 菲尼克斯 温湿度产品
- Connection method
- Screw connection
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2865573 MACX MCR-EX-SL-RTD-I-NC Temperature Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2865573 |
| Category | Pressure, Flow & Temperature |
| Order number | 2865573 |
| Product type | Temperature transmitter |
| Type designation | MACX MCR-EX-SL-RTD-I-NC |
| Code as collected | MACX MCR-EX-SL-RTD-I-NC PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Connection method | Screw connection |
| Number of outputs | 1 |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Current output signal | 0 mA ... 20 mA |
| Temperature measuring range | -200 °C ... 850 °C (Range depending on the sensor type) |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors: 2, 3, 4-wire |
