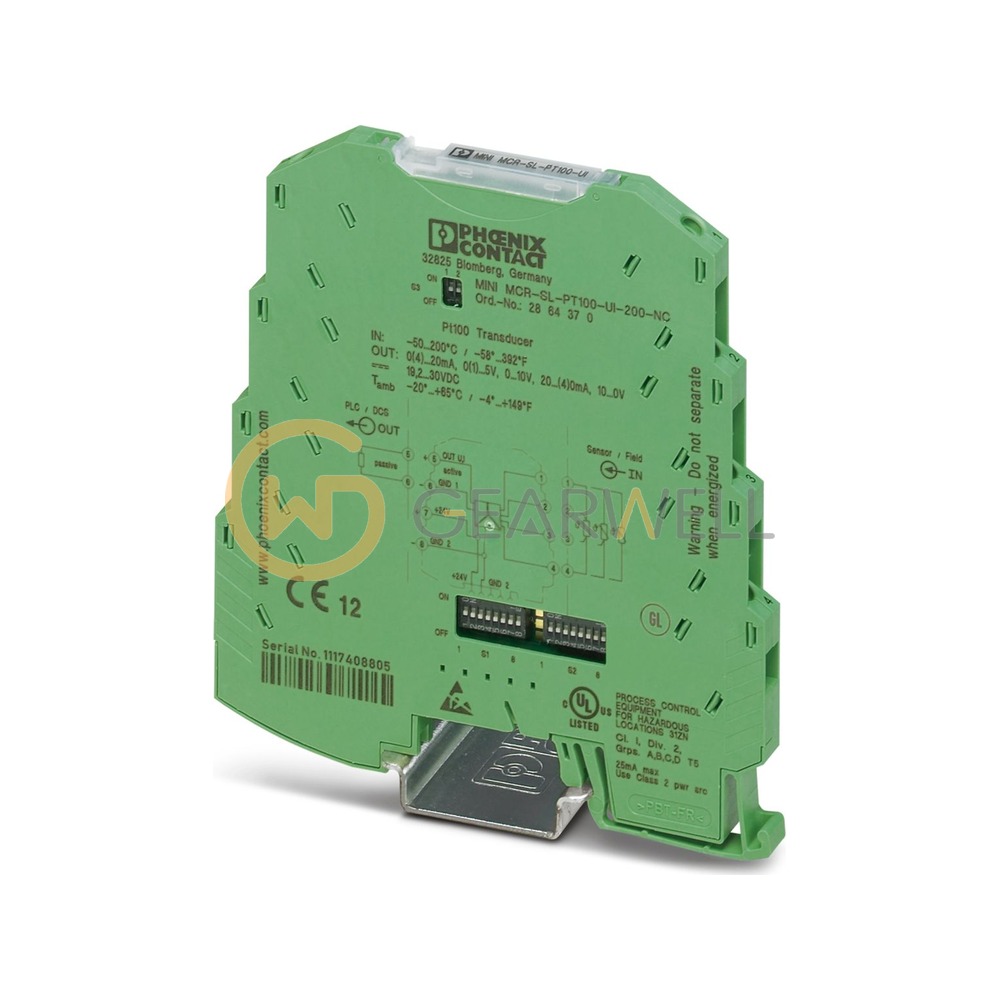

Phoenix Contact 2864370 MINI MCR-SL-PT100-UI-200-NC Transducer
- Brand
- Phoenix Contact
- Model
- 2864370
- GEARWELL SKU
- GWP-000017059
- Category
- Pressure, Flow & Temperature
Key specifications
- Order number
- 2864370
- Product type
- Temperature transmitter
- Product family
- MINI Analog
- Type designation
- MINI MCR-SL-PT100-UI-200-NC
- Code as collected
- MINI MCR-SL-PT100-UI-200-NC PHOENIX CONTACT 菲尼克斯 温湿度产品
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2864370 MINI MCR-SL-PT100-UI-200-NC Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2864370 |
| Category | Pressure, Flow & Temperature |
| Order number | 2864370 |
| Product type | Temperature transmitter |
| Product family | MINI Analog |
| Type designation | MINI MCR-SL-PT100-UI-200-NC |
| Code as collected | MINI MCR-SL-PT100-UI-200-NC PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Current output signal | 0 mA ... 20 mA |
| Temperature measuring range | min. 50 K |
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) |
| Temperature measuring range: Pt 100 | -50 °C ... 200 °C (configurable) |
