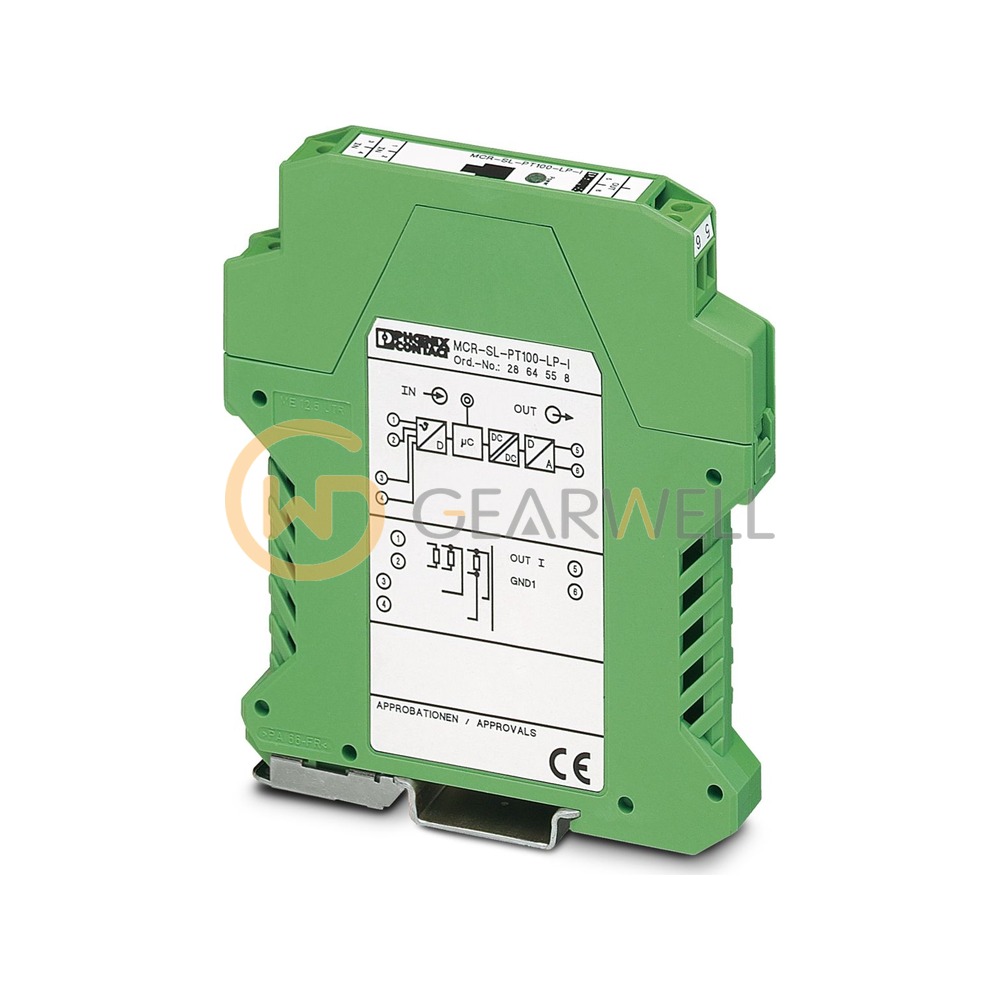

Phoenix Contact 2864558 MCR-SL-PT100-LP-I Temperature Transducer
- Brand
- Phoenix Contact
- Model
- 2864558
- GEARWELL SKU
- GWP-000017060
- Category
- Pressure, Flow & Temperature
Key specifications
- Width
- 12.5 mm
- Order number
- 2864558
- Product type
- Temperature transmitter
- Type designation
- MCR-SL-PT100-LP-I
- Code as collected
- MCR-SL-PT100-LP-I PHOENIX CONTACT 菲尼克斯 温湿度产品
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2864558 MCR-SL-PT100-LP-I Temperature Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2864558 |
| Category | Pressure, Flow & Temperature |
| Width | 12.5 mm |
| Order number | 2864558 |
| Product type | Temperature transmitter |
| Type designation | MCR-SL-PT100-LP-I |
| Code as collected | MCR-SL-PT100-LP-I PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Connection method | Pluggable screw connection |
| Supply voltage range | 12 V DC ... 35 V DC |
| Current output signal | 4 mA ... 20 mA |
| Sensor types (RTD) that can be used | Pt 100, minimum measurement range 10 K |
| Temperature measuring range: Pt 100 | -200 °C ... 850 °C (freely adjustable) |
