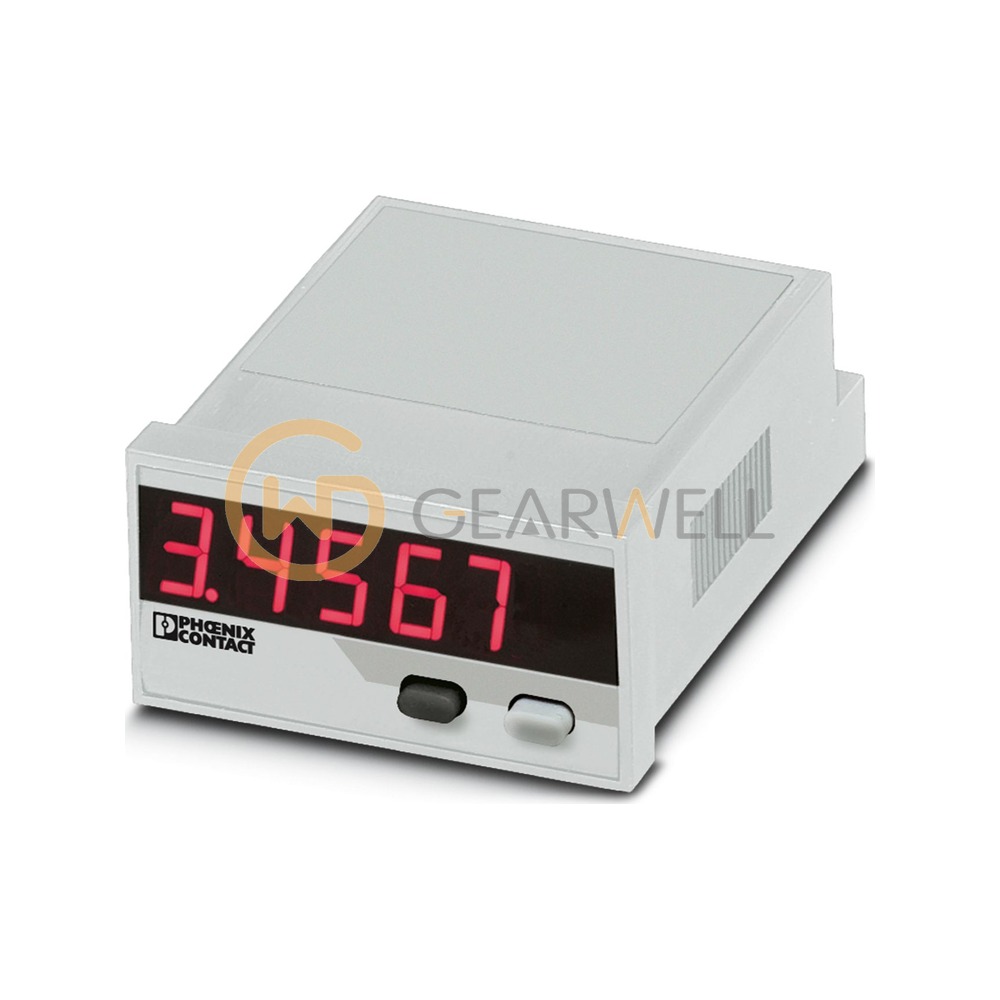

Phoenix Contact 2864011 MCR-SL-D-U-I Digital Display
- Brand
- Phoenix Contact
- Model
- 2864011
- GEARWELL SKU
- GWP-000017037
- Category
- Test & Measurement
Key specifications
- Display
- 5 digits, 7-segment LED, 8 mm, red
- Order number
- 2864011
- Type designation
- MCR-SL-D-U-I
- Current input signal
- 0 mA ... 20 mA / 4 mA ... 20 mA
- Degree of protection
- IP65 (front)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2864011 MCR-SL-D-U-I Digital Display |
|---|---|
| Brand | Phoenix Contact |
| Model | 2864011 |
| Category | Test & Measurement |
| Display | 5 digits, 7-segment LED, 8 mm, red |
| Order number | 2864011 |
| Type designation | MCR-SL-D-U-I |
| Current input signal | 0 mA ... 20 mA / 4 mA ... 20 mA |
| Degree of protection | IP65 (front) |
| Dimensions (W x H x D) | 48 x 24 x 68 mm |
| Supply voltage range | 10 V DC ... 30 V DC |
| Voltage input signal | 0 V ... 10 V / 2 V ... 10 V |
| Maximum transmission error | ± 0.1 % (of final value) |
