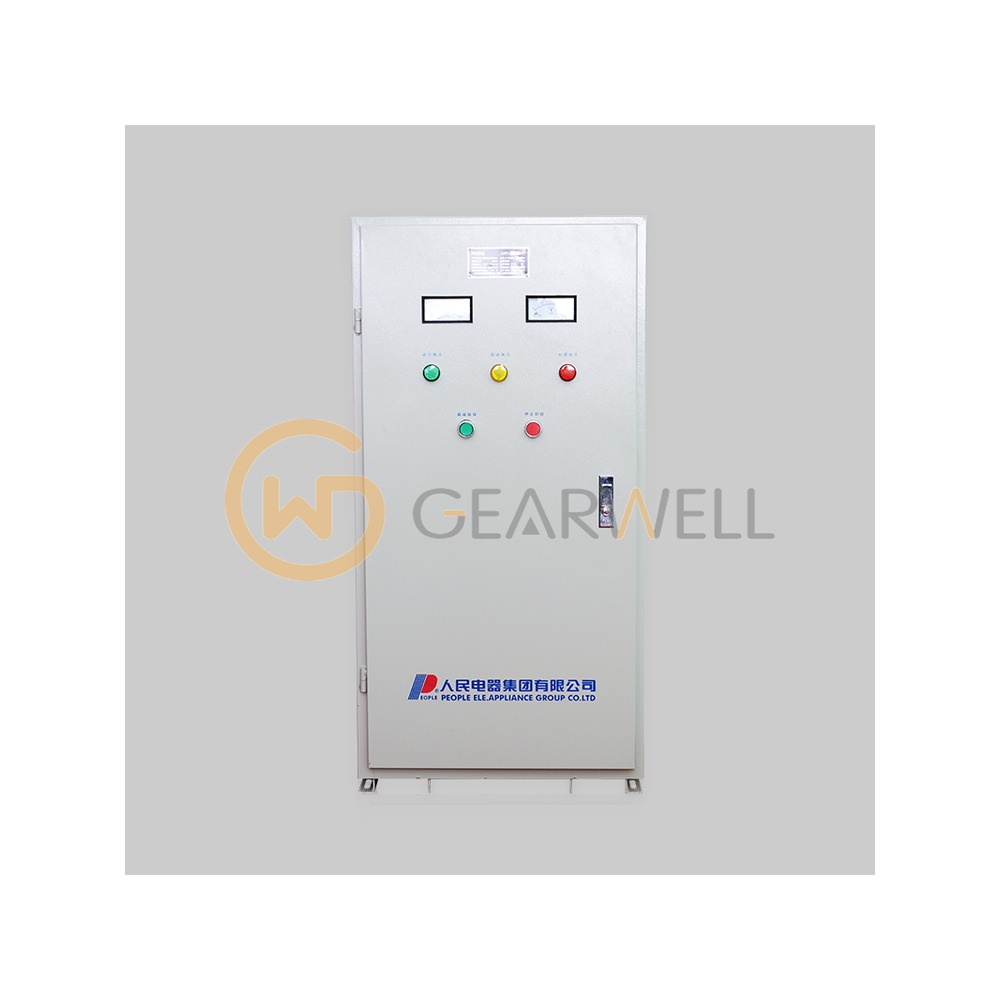

People Electric XJ01-260kW Autotransformer Starter, Copper Busbar
- Brand
- People Electric
- Model
- XJ01-260kW
- GEARWELL SKU
- GWP-000013757
- Category
- Contactors & Starters
Key specifications
- Code suffix "铜 铜排"
- as collected (copper winding, copper busbar); not listed in the official XJ01 model table
- Control mode
- manual and automatic
- Material number
- 101020002010094
- Autotransformer taps
- 65 % / 80 % of rated voltage
- Controlled motor power
- 260 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric XJ01-260kW Autotransformer Starter, Copper Busbar |
|---|---|
| Brand | People Electric |
| Model | XJ01-260kW |
| Category | Contactors & Starters |
| Code suffix "铜 铜排" | as collected (copper winding, copper busbar); not listed in the official XJ01 model table |
| Control mode | manual and automatic |
| Material number | 101020002010094 |
| Autotransformer taps | 65 % / 80 % of rated voltage |
| Controlled motor power | 260 kW |
| Starting time (adjustable) | 1~15 s |
| Current transformer ratio | 800/5 |
| Rated operational voltage | AC 380 V |
| Maximum operating current Ie | 480 A |
