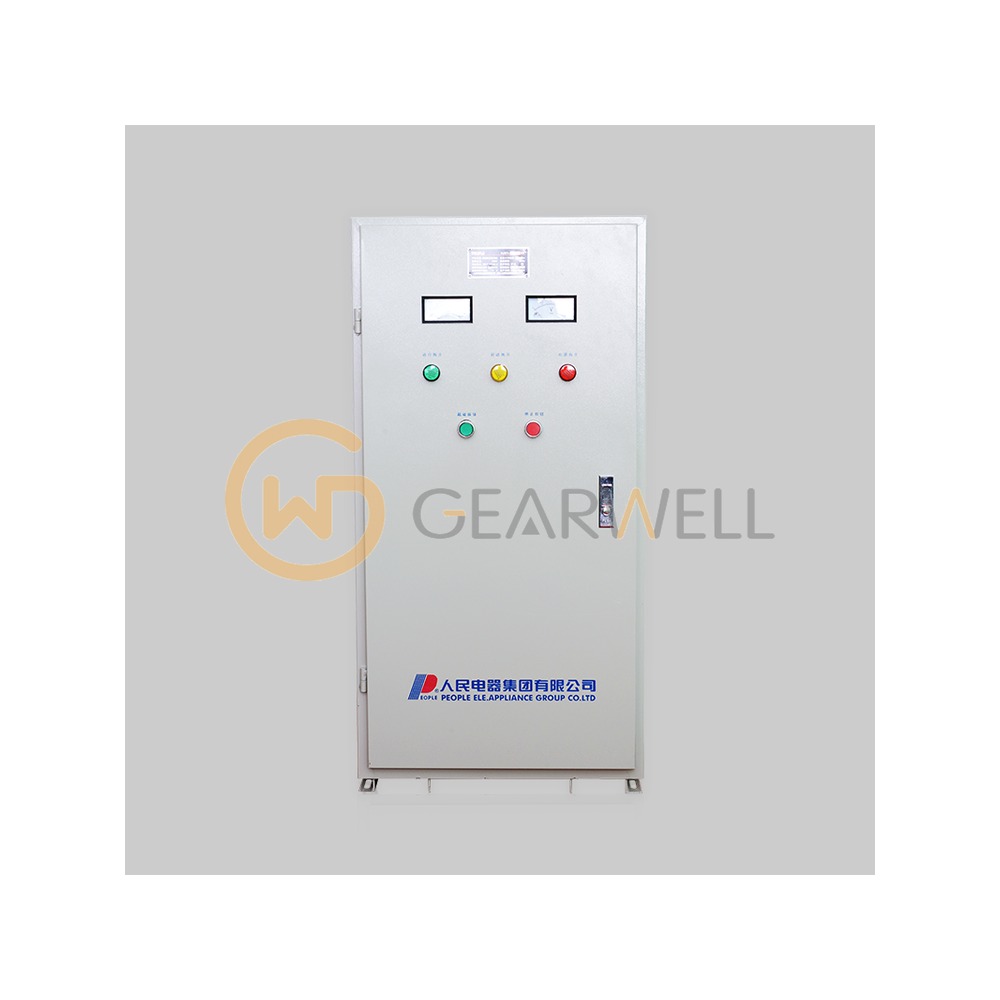

People Electric XJ01-225kW 660V/220V XJ01 Autotransformer Starter
- Brand
- People Electric
- Model
- XJ01-225kW 660V/220V
- GEARWELL SKU
- GWP-000013751
- Category
- Contactors & Starters
Key specifications
- Control mode
- manual and automatic
- Material number
- 101020002010045
- Autotransformer taps
- 65 % / 80 % of rated voltage
- Code suffix "660V/220V"
- as collected (660 V main / 220 V control version); official catalogue lists 380 V
- Controlled motor power
- 225 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric XJ01-225kW 660V/220V XJ01 Autotransformer Starter |
|---|---|
| Brand | People Electric |
| Model | XJ01-225kW 660V/220V |
| Category | Contactors & Starters |
| Control mode | manual and automatic |
| Material number | 101020002010045 |
| Autotransformer taps | 65 % / 80 % of rated voltage |
| Code suffix "660V/220V" | as collected (660 V main / 220 V control version); official catalogue lists 380 V |
| Controlled motor power | 225 kW |
| Starting time (adjustable) | 1~15 s |
| Current transformer ratio | 800/5 |
| Rated operational voltage | AC 380 V |
| Maximum operating current Ie | 410 A |
