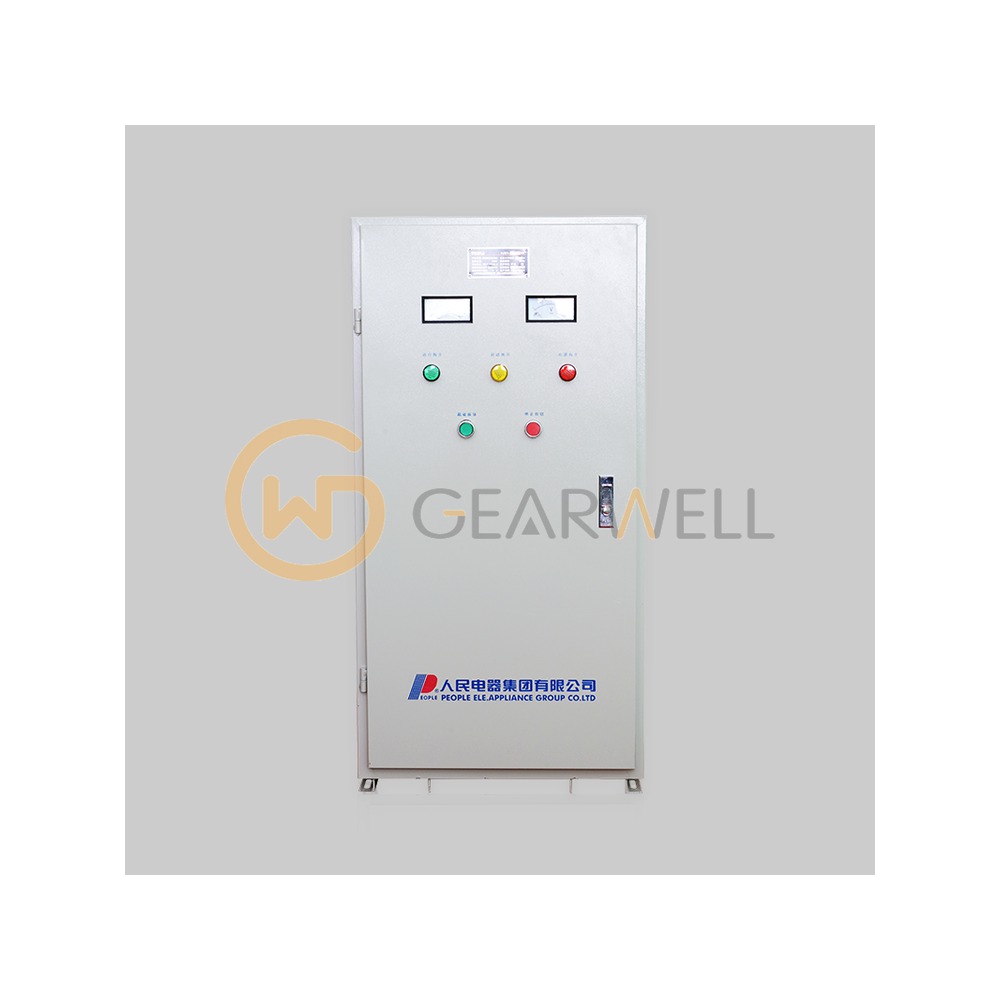

People Electric XJ01-75kW D1 XJ01 Autotransformer Starter
- Brand
- People Electric
- Model
- XJ01-75kW D1
- GEARWELL SKU
- GWP-000013752
- Category
- Contactors & Starters
Key specifications
- Control mode
- automatic
- Code suffix "D1"
- as collected; not listed in the official XJ01 model table
- Material number
- 101020002010046
- Autotransformer taps
- 65 % / 80 % of rated voltage
- Controlled motor power
- 75 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric XJ01-75kW D1 XJ01 Autotransformer Starter |
|---|---|
| Brand | People Electric |
| Model | XJ01-75kW D1 |
| Category | Contactors & Starters |
| Control mode | automatic |
| Code suffix "D1" | as collected; not listed in the official XJ01 model table |
| Material number | 101020002010046 |
| Autotransformer taps | 65 % / 80 % of rated voltage |
| Controlled motor power | 75 kW |
| Starting time (adjustable) | 1~15 s |
| Current transformer ratio | 200/5 |
| Rated operational voltage | AC 380 V |
| Maximum operating current Ie | 142 A |
