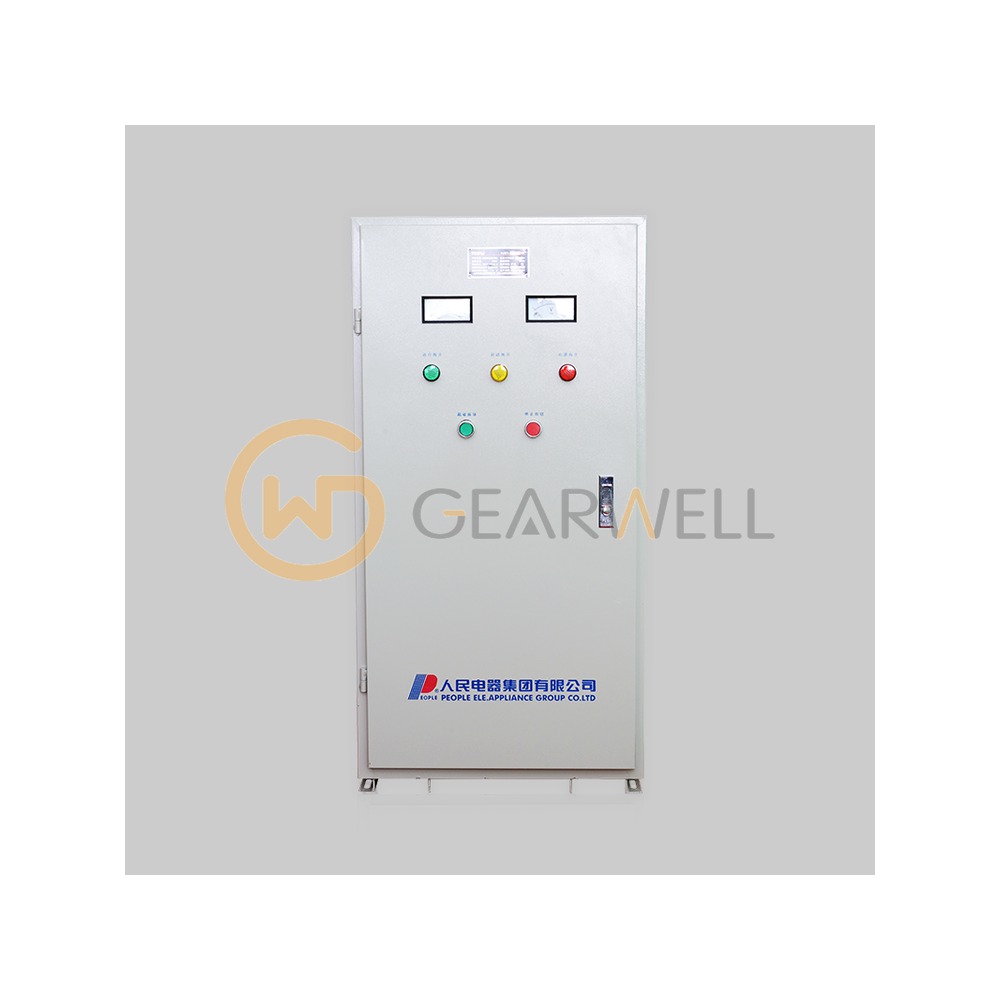

People Electric XJ01-40kW (RDM1) XJ01 Autotransformer Starter
- Brand
- People Electric
- Model
- XJ01-40kW (RDM1)
- GEARWELL SKU
- GWP-000013750
- Category
- Contactors & Starters
Key specifications
- Control mode
- automatic
- Material number
- 101020002010033
- Code suffix "(RDM1)"
- as collected (fitted with RDM1 moulded-case circuit breaker); not listed in the official XJ01 model table
- Autotransformer taps
- 65 % / 80 % of rated voltage
- Controlled motor power
- 40 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric XJ01-40kW (RDM1) XJ01 Autotransformer Starter |
|---|---|
| Brand | People Electric |
| Model | XJ01-40kW (RDM1) |
| Category | Contactors & Starters |
| Control mode | automatic |
| Material number | 101020002010033 |
| Code suffix "(RDM1)" | as collected (fitted with RDM1 moulded-case circuit breaker); not listed in the official XJ01 model table |
| Autotransformer taps | 65 % / 80 % of rated voltage |
| Controlled motor power | 40 kW |
| Starting time (adjustable) | 1~15 s |
| Current transformer ratio | 100/5 |
| Rated operational voltage | AC 380 V |
| Maximum operating current Ie | 77 A |
