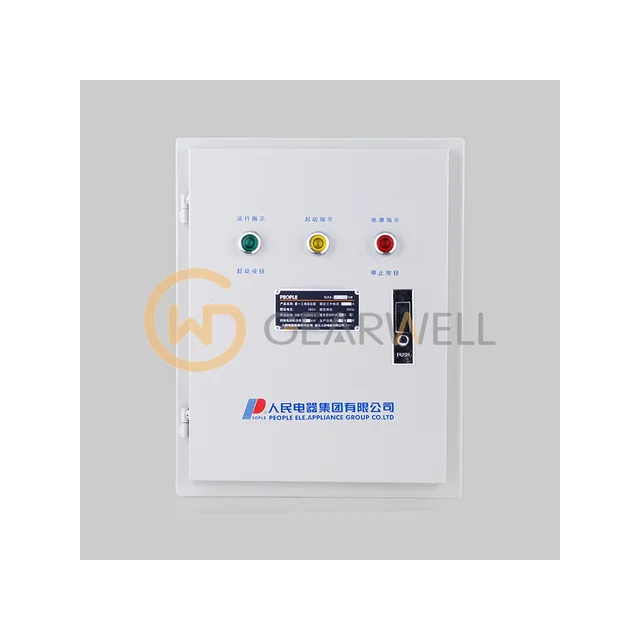

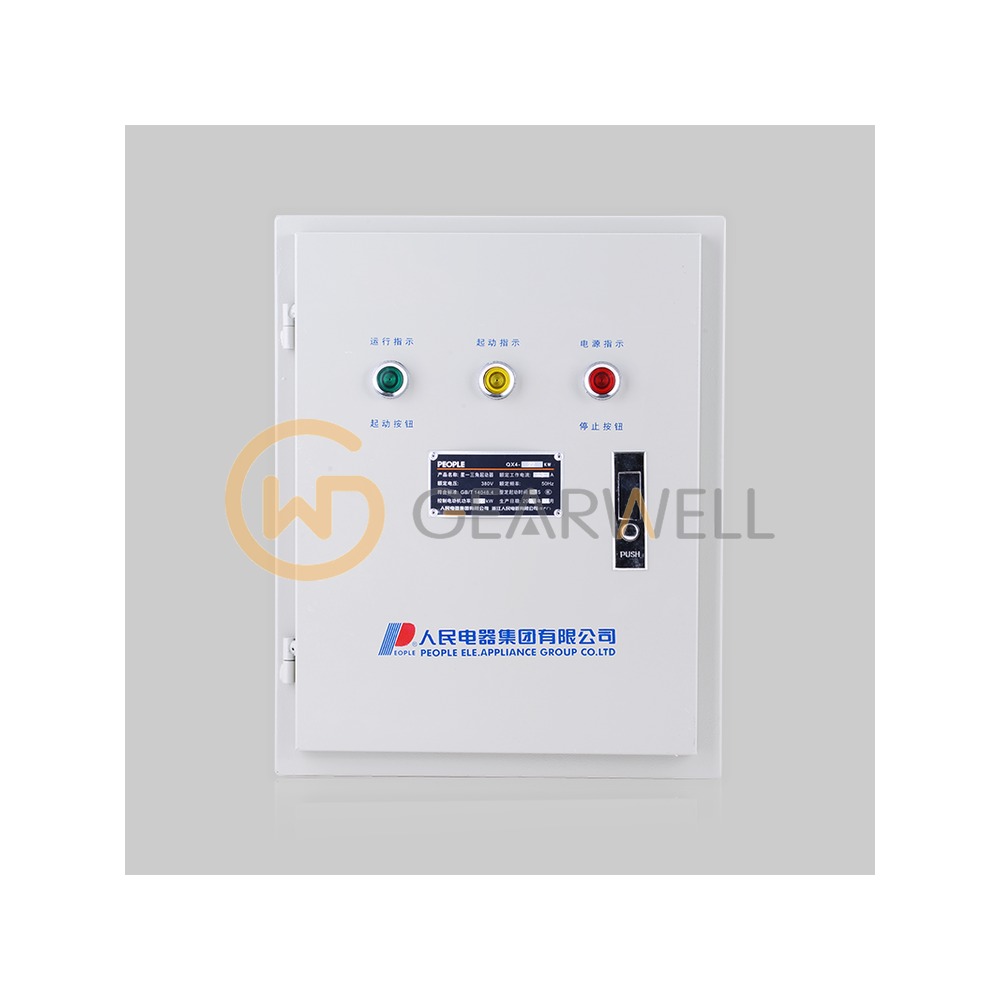

People Electric QX4-22kW QX4 Automatic Star-Delta Starter
- Brand
- People Electric
- Model
- QX4-22kW
- GEARWELL SKU
- GWP-000013759
- Category
- Contactors & Starters
Key specifications
- Options "保护器 指针表 软线"
- as collected (with motor protector, analogue ammeter, flexible wiring); not listed in the official model table
- Standard
- GB/T 14048.4
- Thermal relay
- JR36-63/3 (22 A)
- Material number
- 101020010020040
- Rated phase current
- 25 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric QX4-22kW QX4 Automatic Star-Delta Starter |
|---|---|
| Brand | People Electric |
| Model | QX4-22kW |
| Category | Contactors & Starters |
| Options "保护器 指针表 软线" | as collected (with motor protector, analogue ammeter, flexible wiring); not listed in the official model table |
| Standard | GB/T 14048.4 |
| Thermal relay | JR36-63/3 (22 A) |
| Material number | 101020010020040 |
| Rated phase current | 25 A |
| Controlled motor power | 22 kW |
| Rated operational current Ie | 43 A |
| Rated operational voltage Ue | 380 V |
| Star-delta changeover time setting (approx.) | <= 16 s |
