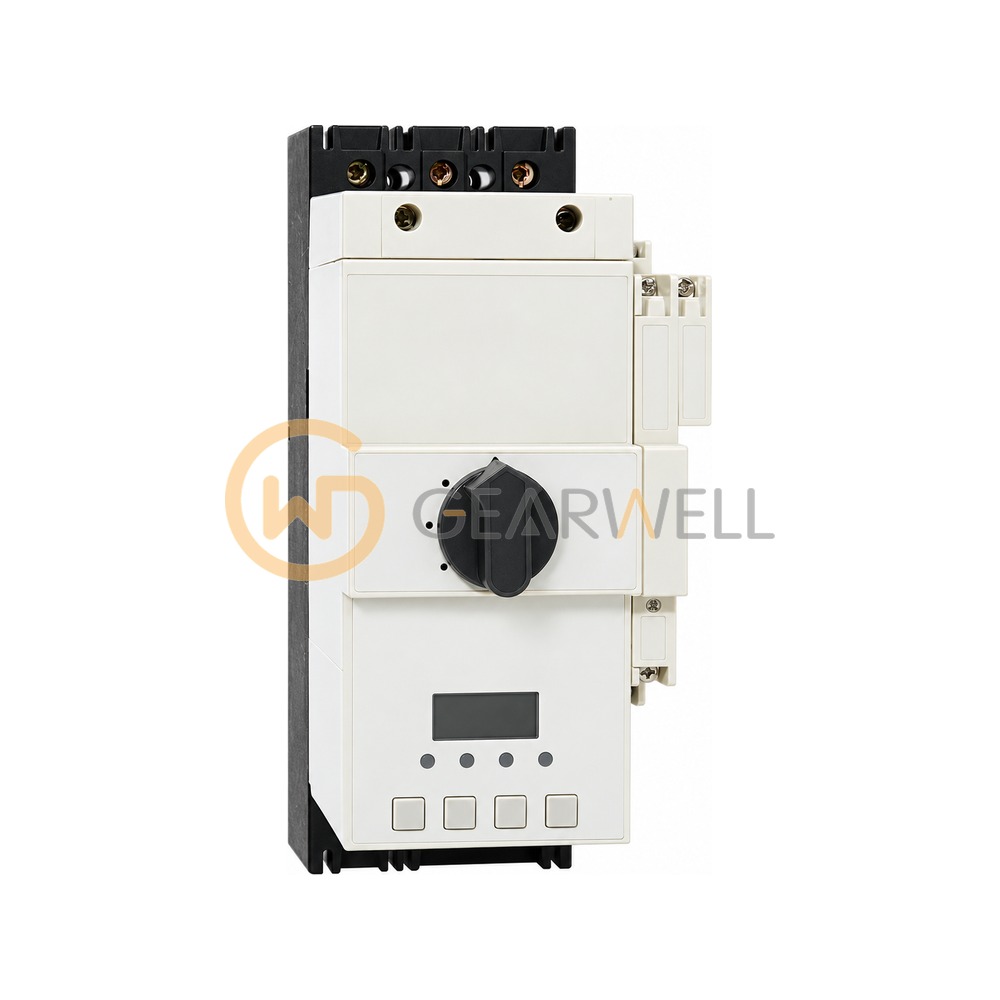

People Electric RDCPS-125C/M50/06MG CPS Switching Device
- Brand
- People Electric
- Model
- RDCPS-125C/M50/06MG
- GEARWELL SKU
- GWP-000015173
- Category
- Contactors & Starters
Key specifications
- Controller
- M (economy type intelligent controller)
- Derived code
- G (isolation type)
- Material number
- 101002012011999
- Frame (shell) current
- 125 A
- Motor power at 380 V
- 14~21 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric RDCPS-125C/M50/06MG CPS Switching Device |
|---|---|
| Brand | People Electric |
| Model | RDCPS-125C/M50/06MG |
| Category | Contactors & Starters |
| Controller | M (economy type intelligent controller) |
| Derived code | G (isolation type) |
| Material number | 101002012011999 |
| Frame (shell) current | 125 A |
| Motor power at 380 V | 14~21 kW |
| Auxiliary contact code | 06 (3 NO + 3 NC + short-circuit signal + fault signal contact) |
| Control supply voltage | AC 220 (code M) V |
| Breaking capacity class | C (Ics 12 kA) |
| Long-delay setting current Ir | 17~50 A |
| Intelligent controller rated current Ie | 50 A |
