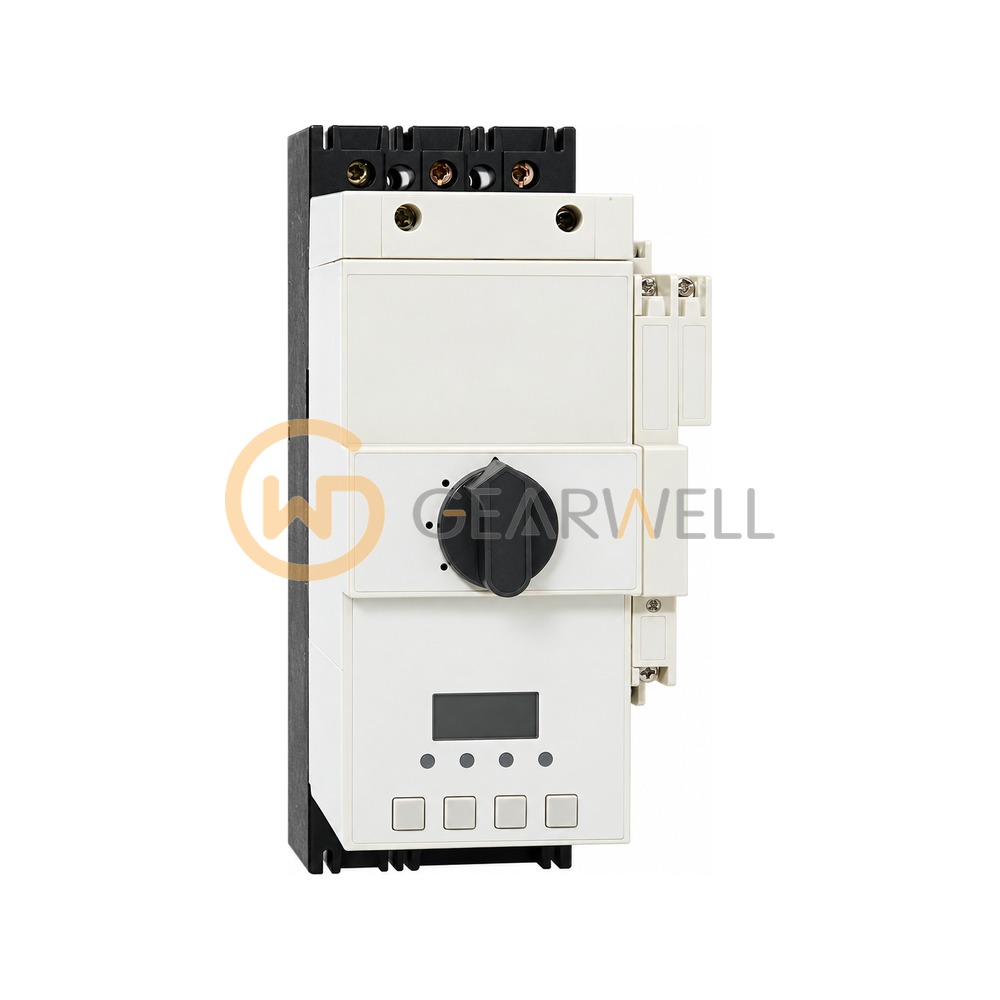

People Electric RDCPS-125C/M45/06M RDCPS Control and Protective Switch

Key specifications

Controller: M (economy type intelligent controller)
Material number: 101002012012000
Frame (shell) current: 125 A
Motor power at 380 V: 12~20 kW
Auxiliary contact code: 06 (3 NO + 3 NC + short-circuit signal + fault signal contact)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	People Electric RDCPS-125C/M45/06M RDCPS Control and Protective Switch
Brand	People Electric
Model	RDCPS-125C/M45/06M
Category	Contactors & Starters
Controller	M (economy type intelligent controller)
Material number	101002012012000
Frame (shell) current	125 A
Motor power at 380 V	12~20 kW
Auxiliary contact code	06 (3 NO + 3 NC + short-circuit signal + fault signal contact)
Control supply voltage	AC 220 (code M) V
Breaking capacity class	C (Ics 12 kA)
Rated insulation voltage Ui	690 V
Long-delay setting current Ir	15~45 A
Intelligent controller rated current Ie	45 A
