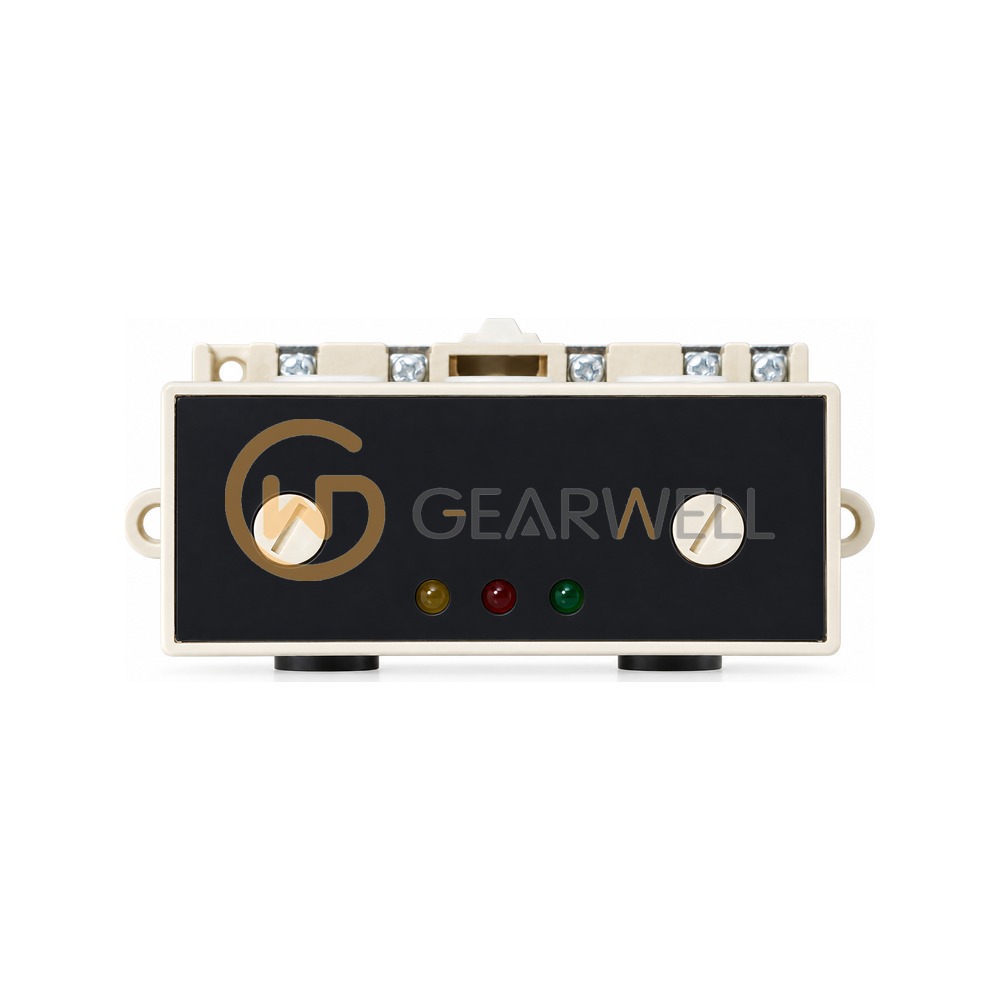

People Electric JD-5B-80/AC220V JD-5(B) Motor Protector
- Brand
- People Electric
- Model
- JD-5B-80/AC220V
- GEARWELL SKU
- GWP-000015176
- Category
- Circuit Protection
Key specifications
- Standard
- GB/T 14048.4
- Trip class
- 10
- Material number
- 101005003010005
- Specification code
- 80
- Additional function
- B (buzzer alarm)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric JD-5B-80/AC220V JD-5(B) Motor Protector |
|---|---|
| Brand | People Electric |
| Model | JD-5B-80/AC220V |
| Category | Circuit Protection |
| Standard | GB/T 14048.4 |
| Trip class | 10 |
| Material number | 101005003010005 |
| Specification code | 80 |
| Additional function | B (buzzer alarm) |
| Suitable motor power | 10~40 kW |
| Setting current range | 20~80 A |
| Designation as collected | JD-5B 20-80A 220V |
| Relative delay (adjustable) | 3~60 s |
| Rated control supply voltage | AC 220 V |
