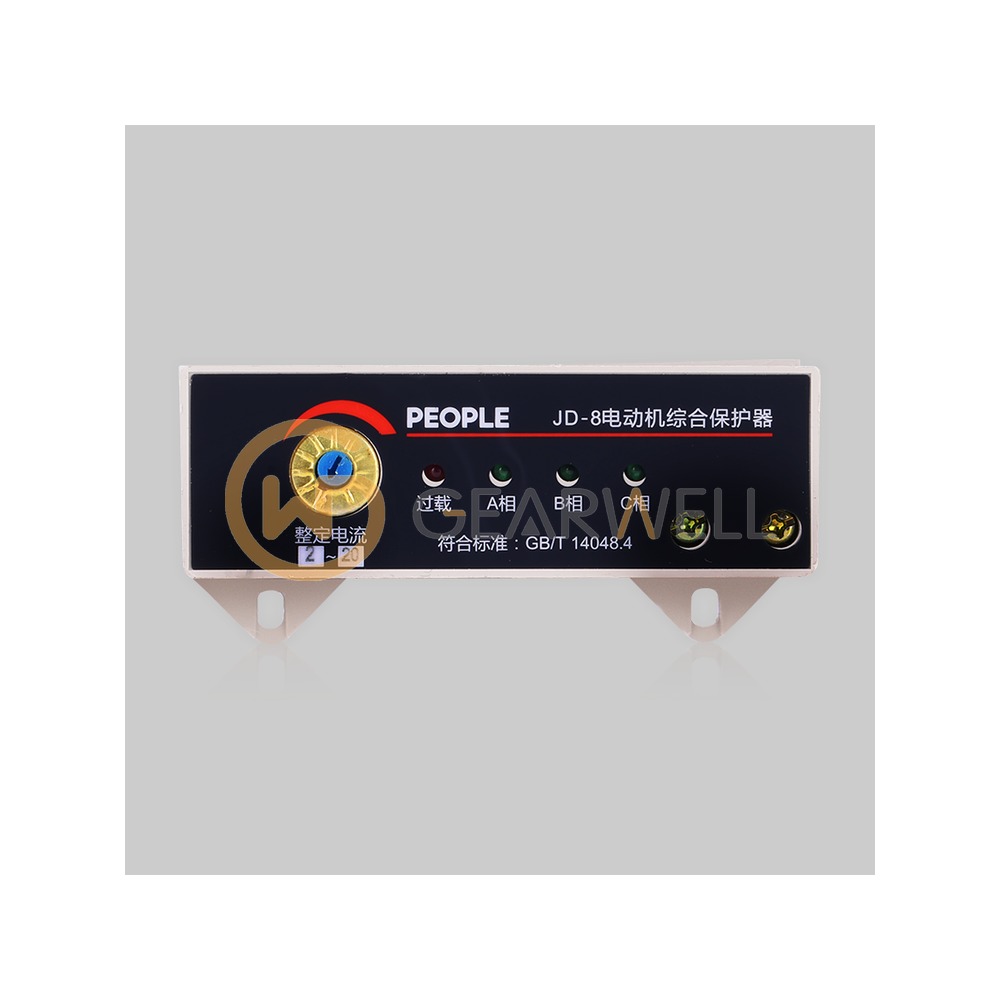

People Electric JD-8/20 JD-8 Motor Protection Relay

People Electric JD-8/20 JD-8 Motor Protection Relay

Model
JD-8/20
GEARWELL SKU
GWP-000013747
Category
Circuit Protection

Key specifications

Standard
GB/T 14048.4
Trip class
30
Control contact
AC 380 V, 1 A (AC-15)
Material number
101005003010017
Phase-loss trip time
<= 5 s
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Technical reference

Product namePeople Electric JD-8/20 JD-8 Motor Protection Relay
BrandPeople Electric
ModelJD-8/20
CategoryCircuit Protection
StandardGB/T 14048.4
Trip class30
Control contactAC 380 V, 1 A (AC-15)
Material number101005003010017
Phase-loss trip time<= 5 s
Suitable motor power1~10 kW
Setting current range2~20 A
Rated operational current20 A
Rated operational voltageAC 380 V
Main circuit rated insulation voltage690 V
