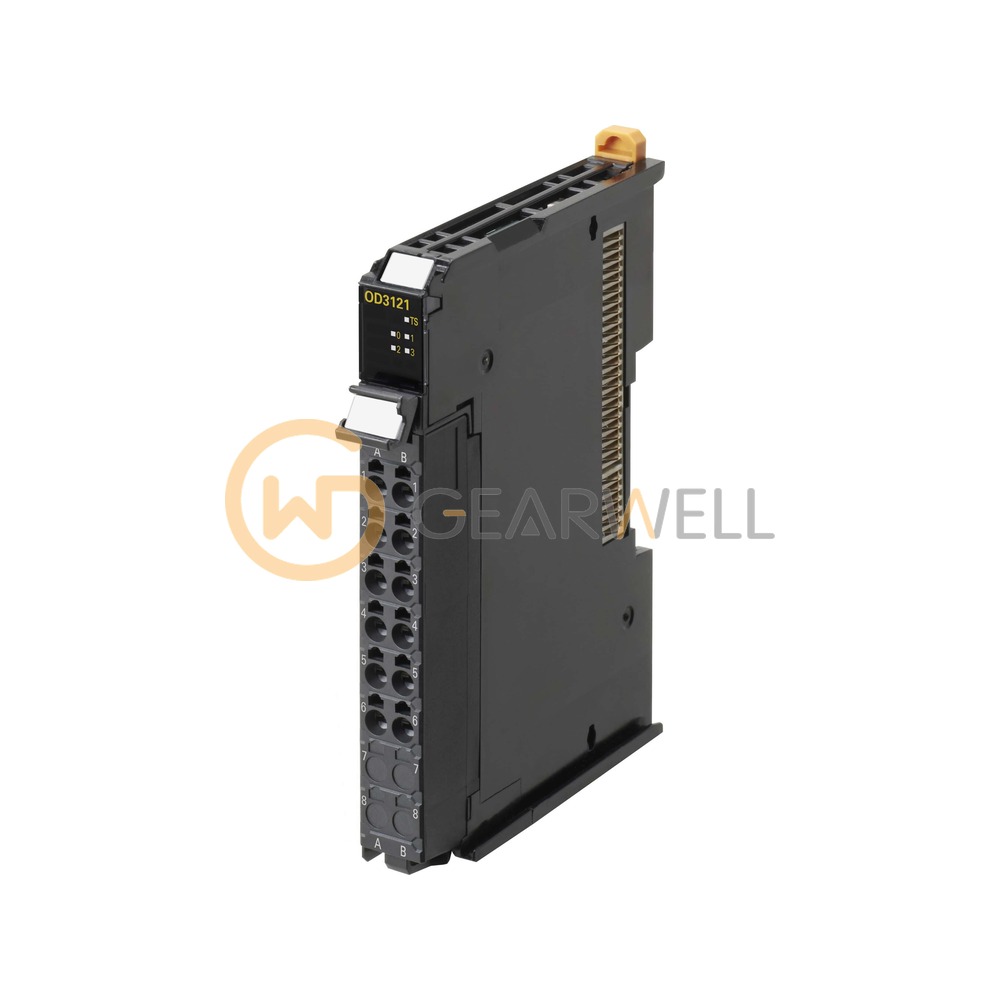

OMRON NX-OD3121 NX I/O Digital Output Unit
- Brand
- OMRON
- Model
- NX-OD3121
- GEARWELL SKU
- GWP-000007828
- Category
- PLCs & I/O
Key specifications
- Connection
- Push-in
- Output type
- NPN
- Output current
- 0.5 A/point, 2 A/unit
- Output voltage
- 10.2 to 28.8 V DC
- Number of outputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX-OD3121 is an NX-series transistor output unit with 4 NPN outputs for 12 to 24 VDC (10.2 to 28.8 VDC), 0.5 A/point and 2 A/Unit. The ON/OFF response time is 0.1 ms max./0.8 ms max. It has a screwless clamping terminal block (12 terminals), photocoupler isolation, measures 12 (W) x 100 (H) x 71 (D) mm and weighs 70 g max.
Technical reference
| Product name | OMRON NX-OD3121 NX I/O Digital Output Unit |
|---|---|
| Brand | OMRON |
| Model | NX-OD3121 |
| Category | PLCs & I/O |
| Connection | Push-in |
| Output type | NPN |
| Output current | 0.5 A/point, 2 A/unit |
| Output voltage | 10.2 to 28.8 V DC |
| Number of outputs | 4 |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 104.5 x 12 x 80.1 mm |
