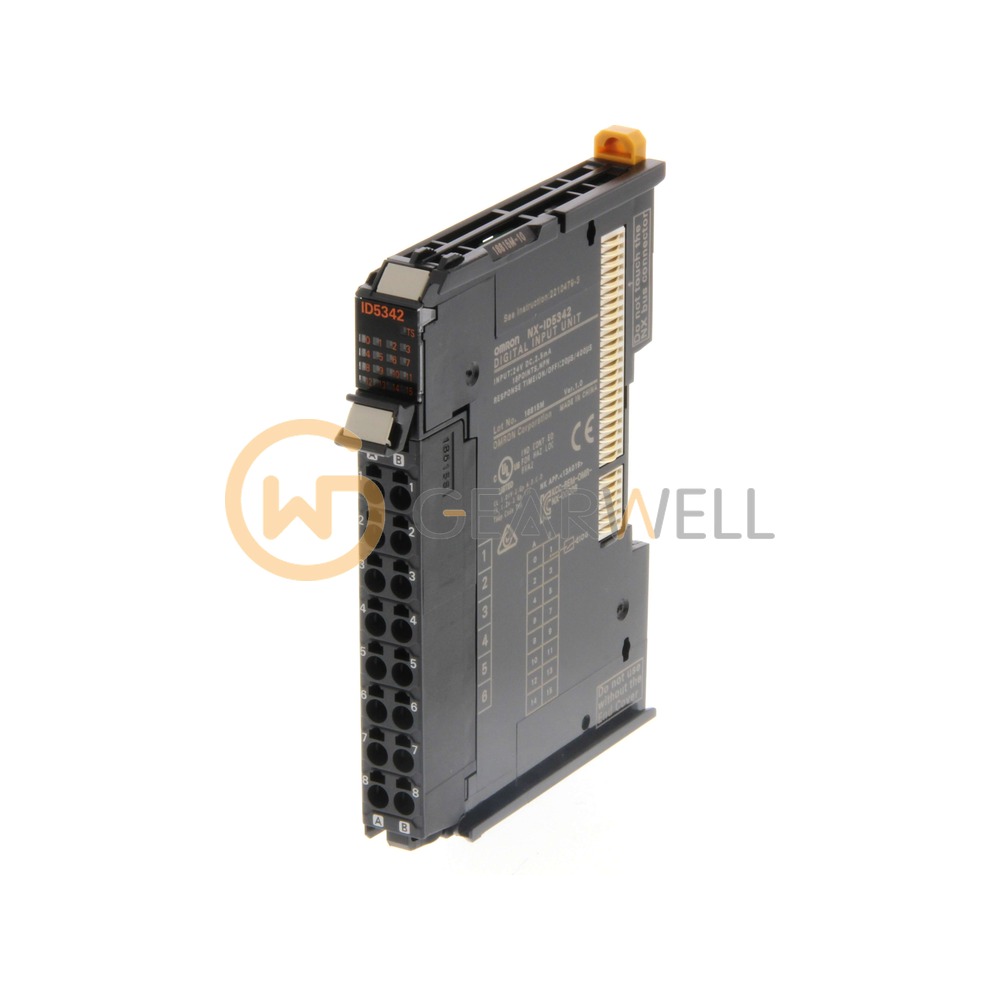

OMRON NX-ID5342 16-Point NPN Digital Input Unit
- Brand
- OMRON
- Model
- NX-ID5342
- GEARWELL SKU
- GWP-000006727
- Category
- PLCs & I/O
Key specifications
- Input type
- NPN
- Digital inputs
- 16
- Rated input voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX-ID5342 is an NX-series DC input unit with 16 NPN inputs for 24 VDC (15 to 28.8 VDC), 2.5 mA typical input current and an ON/OFF response time of 20 μs max./400 μs max. The input filter time can be set from no filter up to 256 ms, and Synchronous I/O refreshing or Free-Run refreshing is selectable. It has a screwless clamping terminal block (16 terminals), photocoupler isolation, measures 12 (W) x 100 (H) x 71 (D) mm and weighs 65 g max.
Technical reference
| Product name | OMRON NX-ID5342 16-Point NPN Digital Input Unit |
|---|---|
| Brand | OMRON |
| Model | NX-ID5342 |
| Category | PLCs & I/O |
| Input type | NPN |
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
