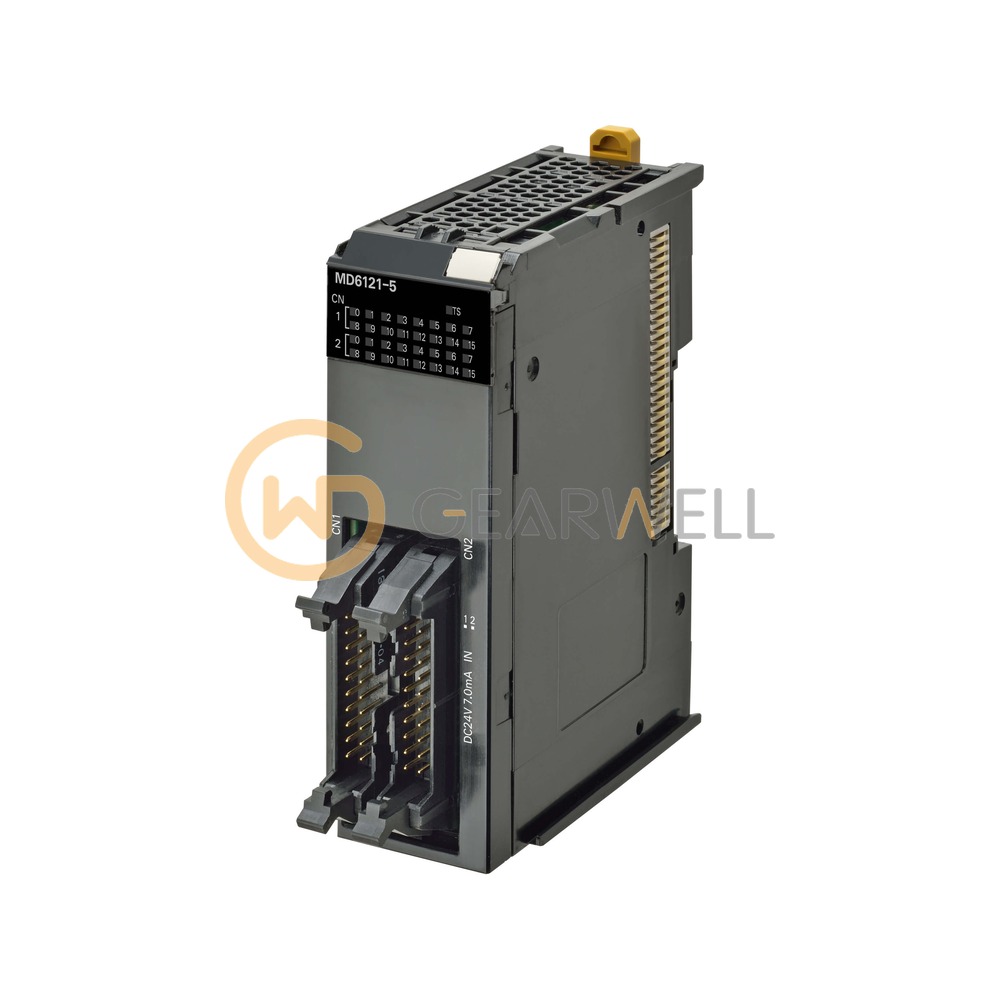

OMRON NX-MD6121-5 NX I/O Digital I/O Unit
- Brand
- OMRON
- Model
- NX-MD6121-5
- GEARWELL SKU
- GWP-000011582
- Category
- PLCs & I/O
Key specifications
- Weight
- 155 g
- Input voltage
- 15 to 28.8 VDC
- Digital inputs
- 16 (NPN/PNP)
- I/O connection
- 2 x MIL connector
- Output voltage
- 10.2 to 28.8 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX-MD6121-5 is an NX-series DC input/transistor output unit, 30 mm wide, with 16 inputs and 16 outputs on 2 MIL connectors (20 terminals). The outputs are NPN for 12 to 24 VDC, 0.5 A/point and 2 A/Unit; the inputs take 24 VDC (15 to 28.8 VDC) for NPN or PNP devices at 7 mA typical. It measures 30 (W) x 100 (H) x 71 (D) mm and weighs 105 g max.
Technical reference
| Product name | OMRON NX-MD6121-5 NX I/O Digital I/O Unit |
|---|---|
| Brand | OMRON |
| Model | NX-MD6121-5 |
| Category | PLCs & I/O |
| Weight | 155 g |
| Input voltage | 15 to 28.8 VDC |
| Digital inputs | 16 (NPN/PNP) |
| I/O connection | 2 x MIL connector |
| Output voltage | 10.2 to 28.8 VDC |
| Digital outputs | 16 (NPN), 0.5 A |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 100 x 30 x 89.52 mm |
