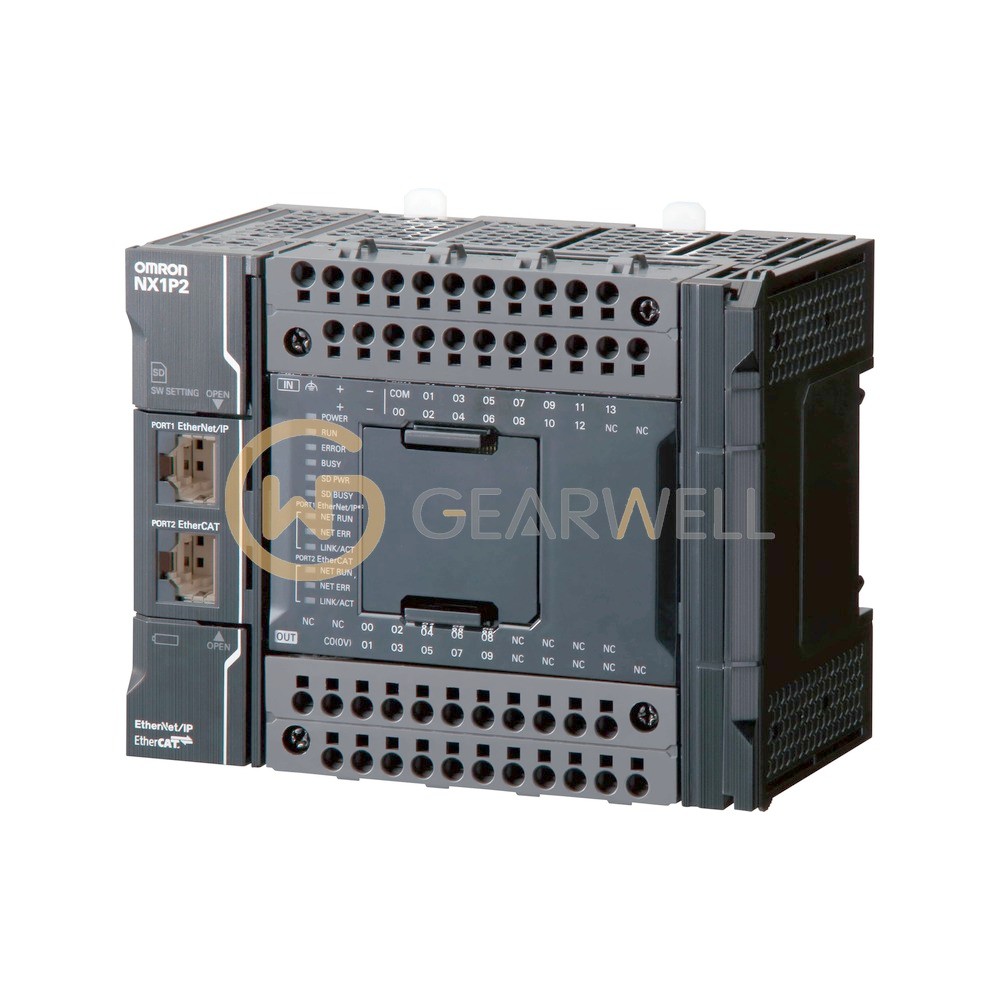

OMRON NX1P2-9024DT NX1P Machine Automation Controller
- Brand
- OMRON
- Model
- NX1P2-9024DT
- GEARWELL SKU
- GWP-000007827
- Category
- PLCs & I/O
Key specifications
- PTP axes
- 4
- Digital inputs
- 14
- Program memory
- 1.5 MB
- Supply voltage
- 20.4 to 28.8 V DC
- Digital outputs
- 10 (NPN)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX1P2-9024DT is an NX1P2 CPU Unit, a compact machine automation controller for sequence and motion control with built-in EtherCAT and EtherNet/IP ports. It has 24 built-in I/O points: 14 inputs and 10 NPN transistor outputs, and controls up to 4 single-axis position control servo axes. Program capacity is 1.5 MB. It runs on 24 VDC (20.4 to 28.8 VDC) at 6.70 W, takes up to 8 NX Units and 1 option board, measures 130 × 100 × 71 mm (W×H×D) and weighs 590 g.
Technical reference
| Product name | OMRON NX1P2-9024DT NX1P Machine Automation Controller |
|---|---|
| Brand | OMRON |
| Model | NX1P2-9024DT |
| Category | PLCs & I/O |
| PTP axes | 4 |
| Digital inputs | 14 |
| Program memory | 1.5 MB |
| Supply voltage | 20.4 to 28.8 V DC |
| Digital outputs | 10 (NPN) |
| Communication ports | EtherCAT master, EtherNet/IP |
| Max. expansion units | 8 |
| Dimensions (H x W x D) | 100 x 124 x 71 mm |
