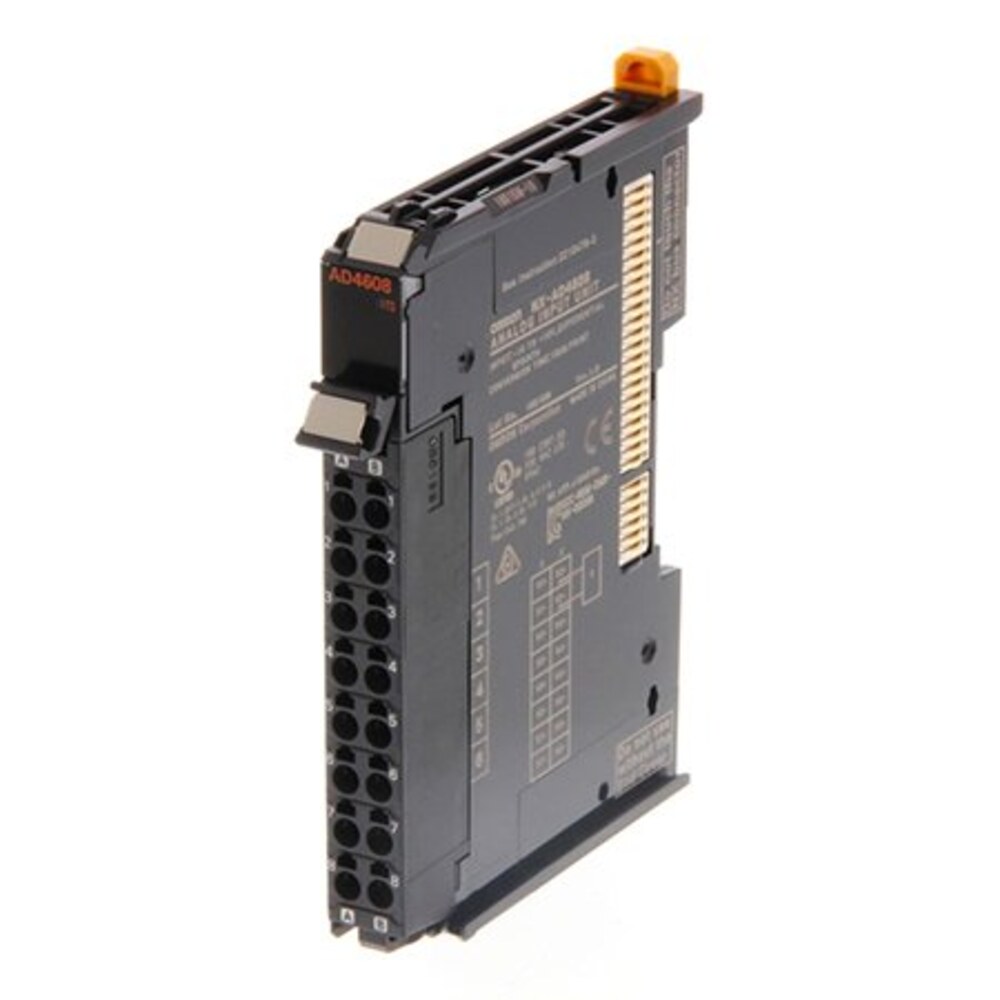

OMRON NX-AD4608 Input Module
- Brand
- OMRON
- Model
- NX-AD4608
- GEARWELL SKU
- GWP-000000262
- Category
- Industrial Automation Parts
Key specifications
- Overall accuracy
- ±0.1% full scale at 25 °C
- Dimensions
- 12 × 100 × 71 mm (W × H × D)
- Resolution
- 1/30000 full scale
- Input range
- -10 to +10 V
- Input method
- Differential input
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX-AD4608 is an NX-series high-speed analog input unit with 8 differential voltage inputs for -10 to +10 V. Resolution is 1/30000 (full scale), conversion time 10 μs/point, selectable Synchronous I/O refreshing or Free-Run refreshing, and overall accuracy ±0.1% (full scale) at 25°C. It has a screwless clamping terminal block (16 terminals), measures 12 (W) x 100 (H) x 71 (D) mm and weighs 70 g max.
Technical reference
| Product name | OMRON NX-AD4608 Input Module |
|---|---|
| Brand | OMRON |
| Model | NX-AD4608 |
| Category | Industrial Automation Parts |
| Overall accuracy | ±0.1% full scale at 25 °C |
| Dimensions | 12 × 100 × 71 mm (W × H × D) |
| Resolution | 1/30000 full scale |
| Input range | -10 to +10 V |
| Input method | Differential input |
| Input points | 8 points |
| Product type | Analog Input Unit (voltage input type) |
| Conversion time | 10 μs/point |
