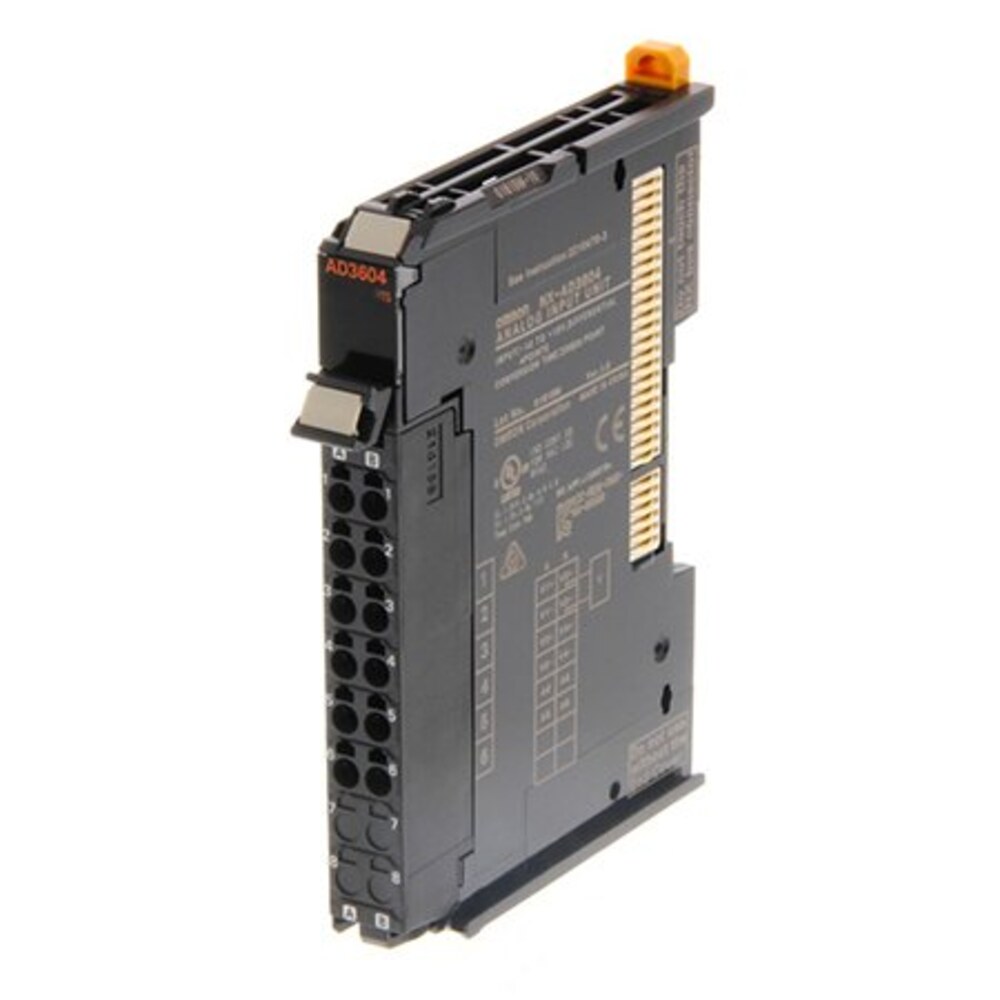

OMRON NX-AD3604 Analogue Input Module
- Brand
- OMRON
- Model
- NX-AD3604
- GEARWELL SKU
- GWP-000002775
- Category
- Industrial Automation Parts
Key specifications
- Resolution
- 1/8000 full scale
- Input range
- -10 to +10 V
- Input method
- Differential input
- Input points
- 4 points
- Product type
- Analog input unit (voltage input type)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NX-AD3604 is an NX-series analog input unit with 4 differential voltage inputs for -10 to +10 V. Resolution is 1/8000 (full scale), conversion time 250 μs/point with Free-Run refreshing, and overall accuracy ±0.2% (full scale) at 25°C. Input impedance is 1 MΩ min. It has a screwless clamping terminal block (12 terminals), measures 12 (W) x 100 (H) x 71 (D) mm and weighs 70 g max.
Technical reference
| Product name | OMRON NX-AD3604 Analogue Input Module |
|---|---|
| Brand | OMRON |
| Model | NX-AD3604 |
| Category | Industrial Automation Parts |
| Resolution | 1/8000 full scale |
| Input range | -10 to +10 V |
| Input method | Differential input |
| Input points | 4 points |
| Product type | Analog input unit (voltage input type) |
| External terminals | Screwless clamping terminal block, 12 terminals |
| Input impedance | 1 MΩ minimum |
| I/O refreshing method | Free-Run refreshing |
