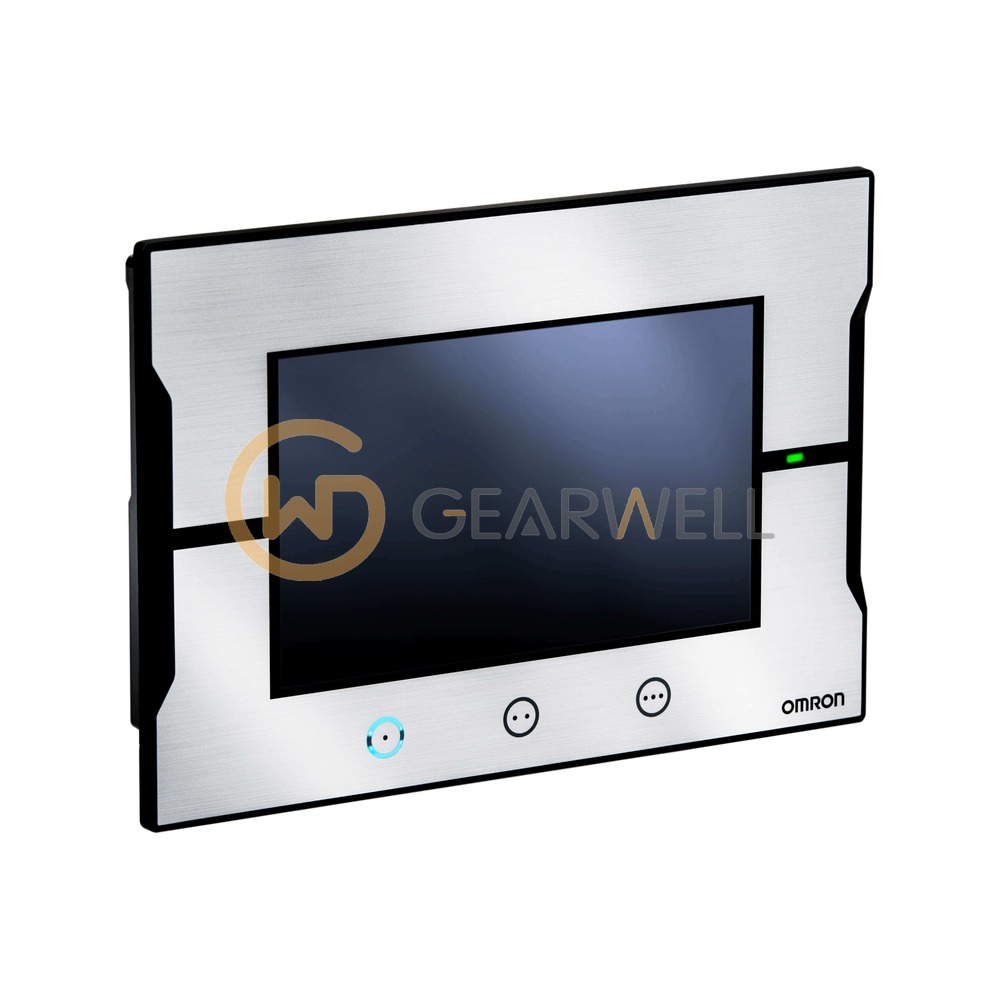

OMRON NA5-7W001S-V1 NA5 HMI Touch Panel
- Brand
- OMRON
- Model
- NA5-7W001S-V1
- GEARWELL SKU
- GWP-000011606
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- 1300 g
- USB ports
- 3
- Resolution
- 800 x 480 pixels
- Frame color
- Silver
- Display type
- TFT, 16.7 million colors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NA5-7W001S-V1 is an NA5 programmable terminal (Sysmac machine interface) with a 7 inch wide screen, 800 × 480 dots, silver frame and metal case. It has a TFT LCD with 16,770,000 colors (24 bit full colors), an analog resistive membrane touch panel, 3 function keys and 256 MB of user data capacity, 2 Ethernet ports (up to 1000Base-T), 2 USB host ports, 1 USB slave port, an RS-232C serial port and an SD Memory Card slot. It runs on 24 VDC (19.2 to 28.8 VDC) and works from 0 to 50°C. Power consumption is 19 W max.; it measures 236 × 165 × 69 mm (W × H × D) and weighs 1.4 kg max.
Technical reference
| Product name | OMRON NA5-7W001S-V1 NA5 HMI Touch Panel |
|---|---|
| Brand | OMRON |
| Model | NA5-7W001S-V1 |
| Category | HMIs & Industrial PCs |
| Weight | 1300 g |
| USB ports | 3 |
| Resolution | 800 x 480 pixels |
| Frame color | Silver |
| Display type | TFT, 16.7 million colors |
| RS-232 ports | 1 |
| Ethernet ports | 2 |
| Screen diagonal | 7 in |
| Front protection | IP65 |
| Panel cutout (W x H) | 196 x 140 mm |
