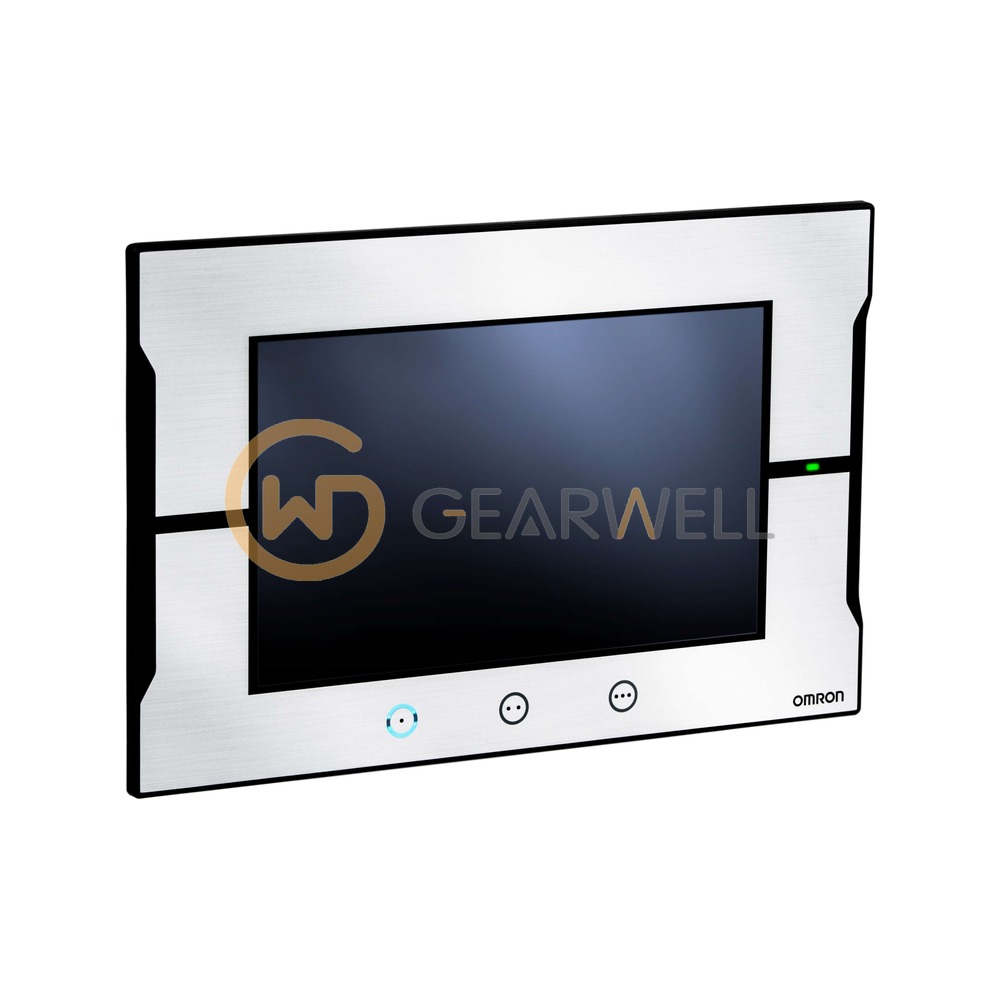

OMRON NA5-9W001S-V2 NA5 HMI Touch Panel
- Brand
- OMRON
- Model
- NA5-9W001S-V2
- GEARWELL SKU
- GWP-000011608
- Category
- HMIs & Industrial PCs
Key specifications
- USB ports
- 3
- Resolution
- 800 x 480 pixels
- Frame color
- Silver
- Display type
- TFT, 16.7 million colors
- RS-232 ports
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON NA5-9W001S-V2 is an NA5-V2 programmable terminal (Sysmac machine interface) with a 9 inch wide TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, silver frame and plastic case. It has 3 function keys, 256 MB of user data capacity and 2 Ethernet ports (up to 1000Base-T), and it needs no battery: the RTC runs for max 10 days after power-OFF. It runs on 24 VDC, uses 23 W max., measures 283 × 185 × 69 mm (W × H × D) and weighs 1.3 kg max.
Technical reference
| Product name | OMRON NA5-9W001S-V2 NA5 HMI Touch Panel |
|---|---|
| Brand | OMRON |
| Model | NA5-9W001S-V2 |
| Category | HMIs & Industrial PCs |
| USB ports | 3 |
| Resolution | 800 x 480 pixels |
| Frame color | Silver |
| Display type | TFT, 16.7 million colors |
| RS-232 ports | 1 |
| Ethernet ports | 2 |
| Screen diagonal | 9 in |
| Front protection | IP65 |
| Panel cutout (W x H) | 260 x 165 mm |
