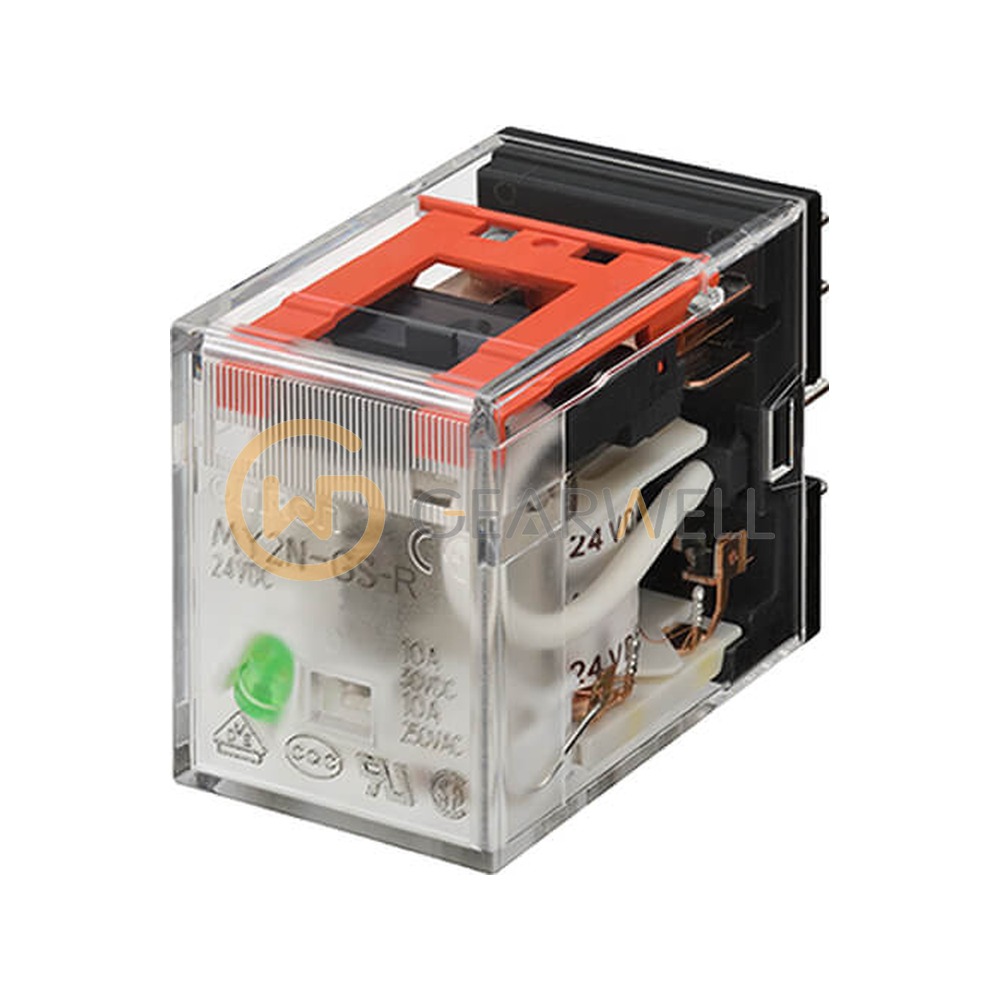

OMRON MY2N-GS-R DC24 BY OMZ MY-GS General-purpose plug-in relay
- Brand
- OMRON
- Model
- MY2N-GS-R DC24 BY OMZ
- GEARWELL SKU
- GWP-000013882
- Category
- Relays & Controllers
Key specifications
- Poles
- 2
- Features
- LED, transparent case, mechanical indicator
- Coil voltage
- 24 VDC
- Contact form
- DPDT
- Terminal type
- Plug-in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON MY2N-GS-R DC24 is an MY-GS-R miniature power relay with 2 poles (DPDT), single Ag contacts, plug-in (octal pins) terminals and LED plus mechanical operation indicators, ordered here with a 24 VDC coil (DC24). Each contact is rated 10 A at 250 VAC and 10 A at 30 VDC (resistive load), with a rated carry current of 10 A. With the LED indicator the 24 VDC coil draws 37.7 mA at a coil resistance of 636 Ω, about 0.9 W. It weighs approx. 35 g and the LED models work from −40 to 70°C.
Technical reference
| Product name | OMRON MY2N-GS-R DC24 BY OMZ MY-GS General-purpose plug-in relay |
|---|---|
| Brand | OMRON |
| Model | MY2N-GS-R DC24 BY OMZ |
| Category | Relays & Controllers |
| Poles | 2 |
| Features | LED, transparent case, mechanical indicator |
| Coil voltage | 24 VDC |
| Contact form | DPDT |
| Terminal type | Plug-in |
| Contact material | Ag |
| Rated carry current | 10 A |
