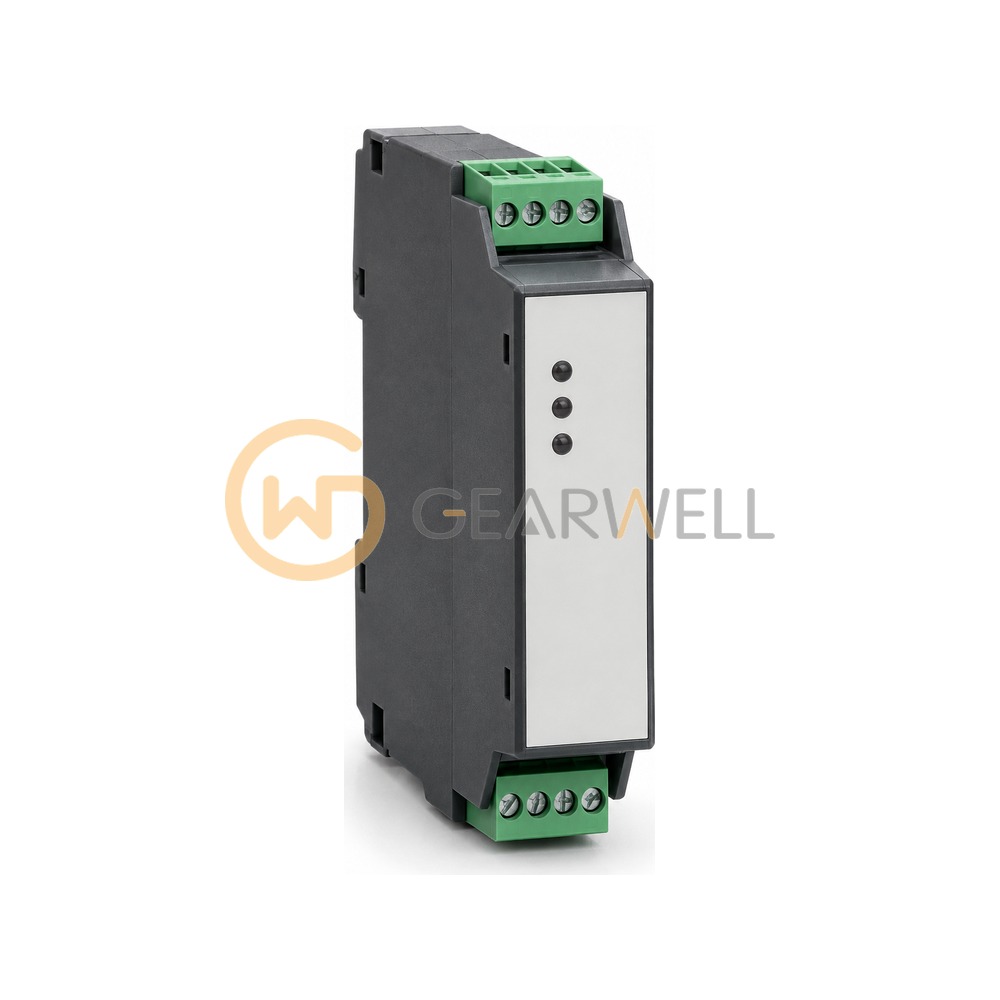

OMRON G9SX-NS202-RT G9SX-NS Non-Contact Door Switch Controller
- Brand
- OMRON
- Model
- G9SX-NS202-RT
- GEARWELL SKU
- GWP-000013401
- Category
- Machine Safety & Vision
Key specifications
- Terminal block
- Screw terminals
- Auxiliary outputs
- 2 (PNP transistor, 100 mA max.)
- Rated supply voltage
- 24 V DC
- Rated power consumption
- 3 W max.
- Response time (D40A connected)
- 20 ms max.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON G9SX-NS202-RT is a G9SX-NS controller for D40A non-contact door switches, with screw terminals, and up to 30 switches can be connected to a single controller. It has 2 instantaneous safety outputs (P channel MOS FET, 0.8 A DC max. load current), 0 OFF-delayed outputs and 2 auxiliary outputs (PNP transistor, 100 mA max.), plus logical AND connection to other G9SX units. It runs on 24 VDC with 3 W max. power consumption, works from −10 to 55°C and weighs approx. 125 g.
Technical reference
| Product name | OMRON G9SX-NS202-RT G9SX-NS Non-Contact Door Switch Controller |
|---|---|
| Brand | OMRON |
| Model | G9SX-NS202-RT |
| Category | Machine Safety & Vision |
| Terminal block | Screw terminals |
| Auxiliary outputs | 2 (PNP transistor, 100 mA max.) |
| Rated supply voltage | 24 V DC |
| Rated power consumption | 3 W max. |
| Response time (D40A connected) | 20 ms max. |
| Safety outputs (instantaneous) | 2 (P-channel MOS FET, 0.8 A DC max.) |
