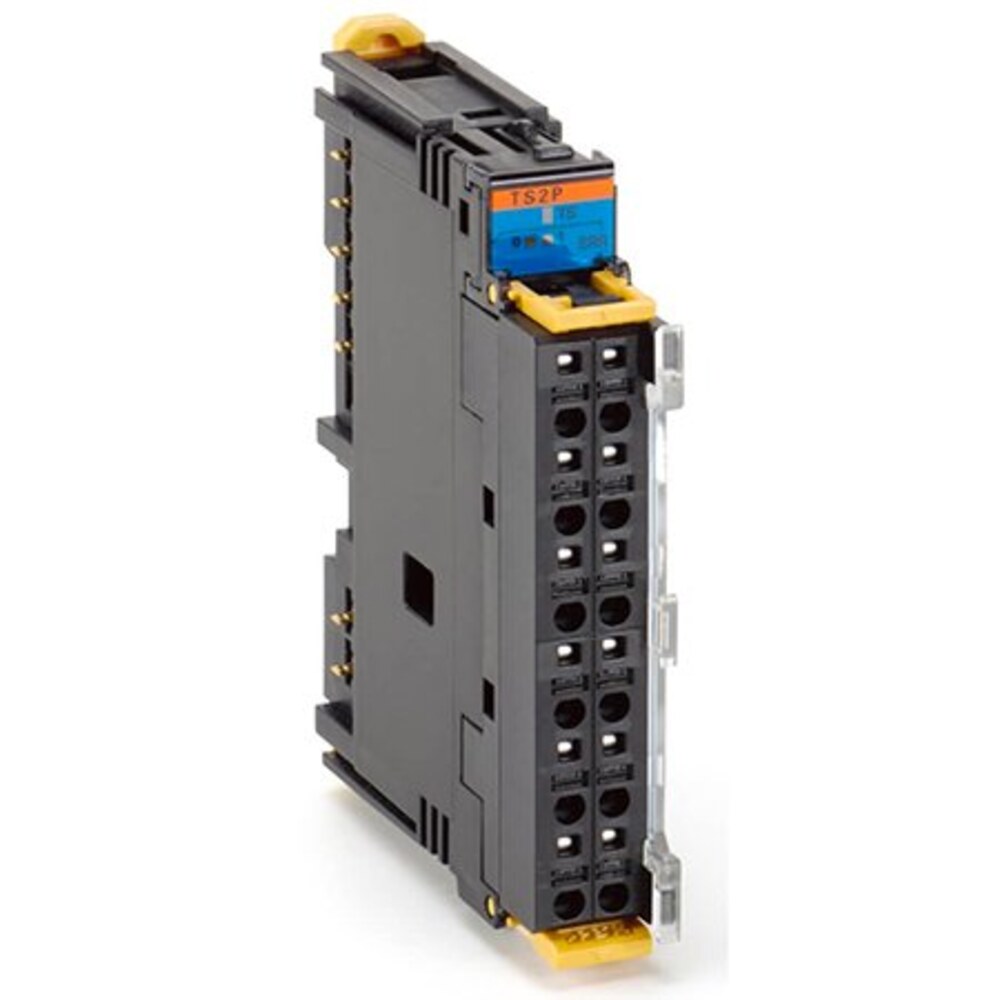

OMRON GRT1-TS2P Temperature Input Module
- Brand
- OMRON
- Model
- GRT1-TS2P
- GEARWELL SKU
- GWP-000001607
- Category
- Industrial Automation Parts
Key specifications
- Applicable standards
- UC1, CE, L
- Sensor type
- Pt100 resistance thermometer
- Product type
- SmartSlice temperature input unit
- Temperature inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON GRT1-TS2P is a SmartSlice I/O Unit with 2 Pt100 temperature inputs for 2-wire or 3-wire connection. It has indication ranges of −200 to +200 °C or −200 to +850 °C and an accuracy of ±0.3% of PV or ±0.8 °C, whichever is larger, ±1 digit max. Conversion takes 250 ms for 2 points. The unit uses screwless push-in connection and measures 84x15x74 mm.
Technical reference
| Product name | OMRON GRT1-TS2P Temperature Input Module |
|---|---|
| Brand | OMRON |
| Model | GRT1-TS2P |
| Category | Industrial Automation Parts |
| Applicable standards | UC1, CE, L |
| Sensor type | Pt100 resistance thermometer |
| Product type | SmartSlice temperature input unit |
| Temperature inputs | 2 |
