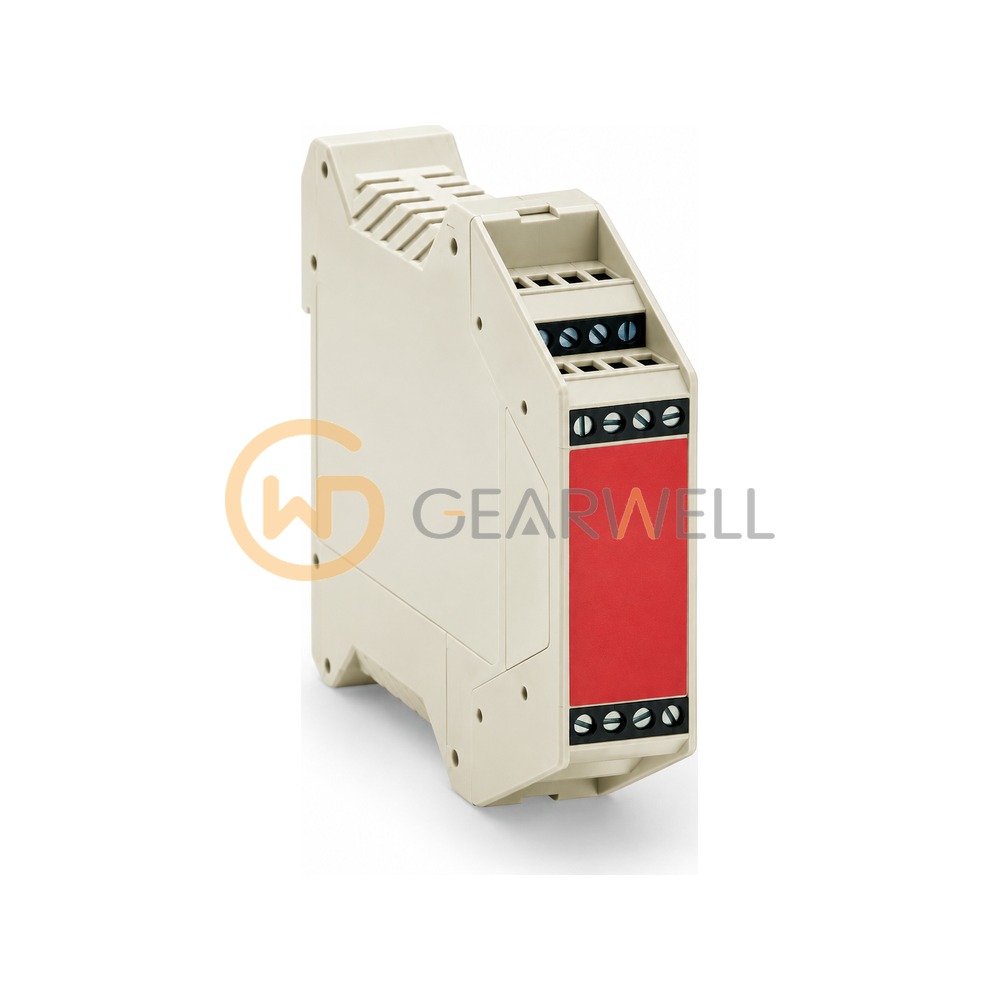

OMRON G9SB-3012-C G9SB Safety Relay Unit 24 VAC/VDC
- Brand
- OMRON
- Model
- G9SB-3012-C
- GEARWELL SKU
- GWP-000013400
- Category
- Machine Safety & Vision
Key specifications
- Reset mode
- Manual reset
- Main contacts
- 3PST-NO
- Rated voltage
- 24 VAC/VDC
- Input channels
- 2 (inverse input)
- Auxiliary contact
- SPST-NC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON G9SB-3012-C is an ultra slim G9SB safety relay unit for emergency stop circuits, with 3PST-NO safety output contacts (13-14, 23-24, 33-34) and an SPST-NC auxiliary contact (41-42). It takes a 2-channel inverse input with manual reset and runs on 24 VAC/VDC (3.6 VA/1.7 W max.). The contacts are rated 250 VAC, 5 A and 30 VDC, 5 A (resistive load), the response time is 10 ms max., and it is rated IP20, mounts on DIN track and weighs approx. 120 g. OMRON states it can be applied to PLe/Safety Category 4.
Technical reference
| Product name | OMRON G9SB-3012-C G9SB Safety Relay Unit 24 VAC/VDC |
|---|---|
| Brand | OMRON |
| Model | G9SB-3012-C |
| Category | Machine Safety & Vision |
| Reset mode | Manual reset |
| Main contacts | 3PST-NO |
| Rated voltage | 24 VAC/VDC |
| Input channels | 2 (inverse input) |
| Auxiliary contact | SPST-NC |
