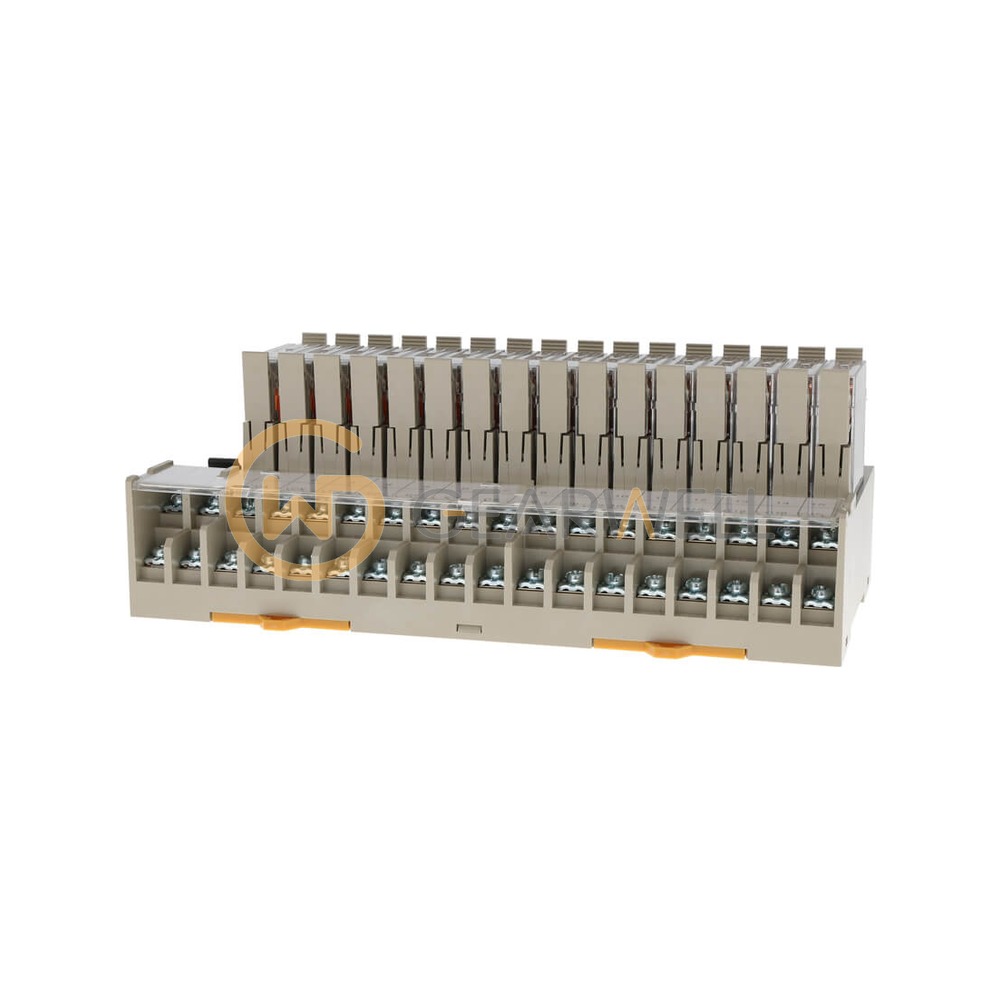

OMRON G7TC-OC16 G7TC I/O Relay Terminal
- Brand
- OMRON
- Model
- G7TC-OC16
- GEARWELL SKU
- GWP-000011576
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 670 g
- Mounting
- DIN track
- I/O points
- 16 outputs
- Contact form
- SPST-NO x 16
- Mounted relay
- G7T
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON G7TC-OC16 is a G7TC I/O relay terminal for output signals, with 16 G7T I/O relays (SPST-NO × 16) on a P7TF socket, NPN (+ common) internal I/O common, and a single connector cable to the PLC. It is ordered with a rated coil voltage of 12 VDC or 24 VDC added to the model number. The output relays have a rated carry current of 5A and a maximum switching voltage of 250 VAC, 125 VDC, with AgInSn contacts and a diode coil surge absorber. It mounts on DIN track, measures 182 (W) × 85 (D) × 68 (H) mm, works at 0 to 55°C and weighs approx. 670 g.
Technical reference
| Product name | OMRON G7TC-OC16 G7TC I/O Relay Terminal |
|---|---|
| Brand | OMRON |
| Model | G7TC-OC16 |
| Category | PLCs & I/O |
| Weight | approx. 670 g |
| Mounting | DIN track |
| I/O points | 16 outputs |
| Contact form | SPST-NO x 16 |
| Mounted relay | G7T |
| Internal common | NPN (+ common) |
| Contact rated load | 24 VDC 5 A; 220 VAC 2 A (resistive) |
| Coil voltage options | 12 VDC / 24 VDC (specify on order) |
