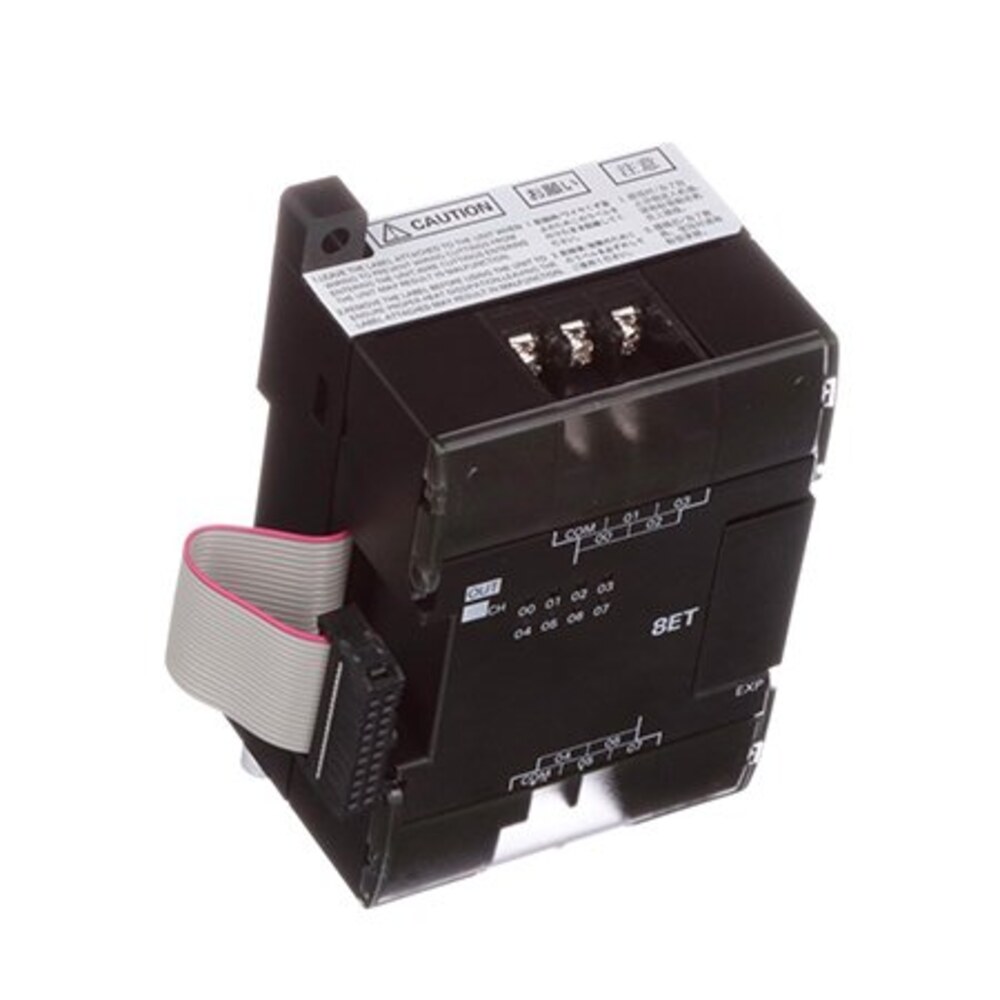

OMRON CP1W-8ET Digital Expansion Unit
- Brand
- OMRON
- Model
- CP1W-8ET
- GEARWELL SKU
- GWP-000000457
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 250 g
- OFF delay
- 1 ms max. at 24 VDC
- Output type
- Transistor, sinking (NPN)
- Product type
- PLC digital output expansion unit
- Output points
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CP1W-8ET is a CP1W Expansion I/O Unit with 8 transistor outputs, sinking type. The outputs work from 4.5 to 30 VDC and switch 0.3 A per output, 0.9 A per common and 1.8 A per Unit, with 0.1 mA max. leakage current and 1.5 V max. residual voltage. ON response time is 0.1 ms max. and OFF response time 1 ms max. It draws 0.075 A at 5 V.
Technical reference
| Product name | OMRON CP1W-8ET Digital Expansion Unit |
|---|---|
| Brand | OMRON |
| Model | CP1W-8ET |
| Category | Industrial Automation Parts |
| Weight | 250 g |
| OFF delay | 1 ms max. at 24 VDC |
| Output type | Transistor, sinking (NPN) |
| Product type | PLC digital output expansion unit |
| Output points | 8 |
| Residual voltage | 1.5 V maximum |
| Maximum switching capacity | 4.5 to 30 VDC, 0.3 A/point |
| 5 V current consumption | 0.075 A |
