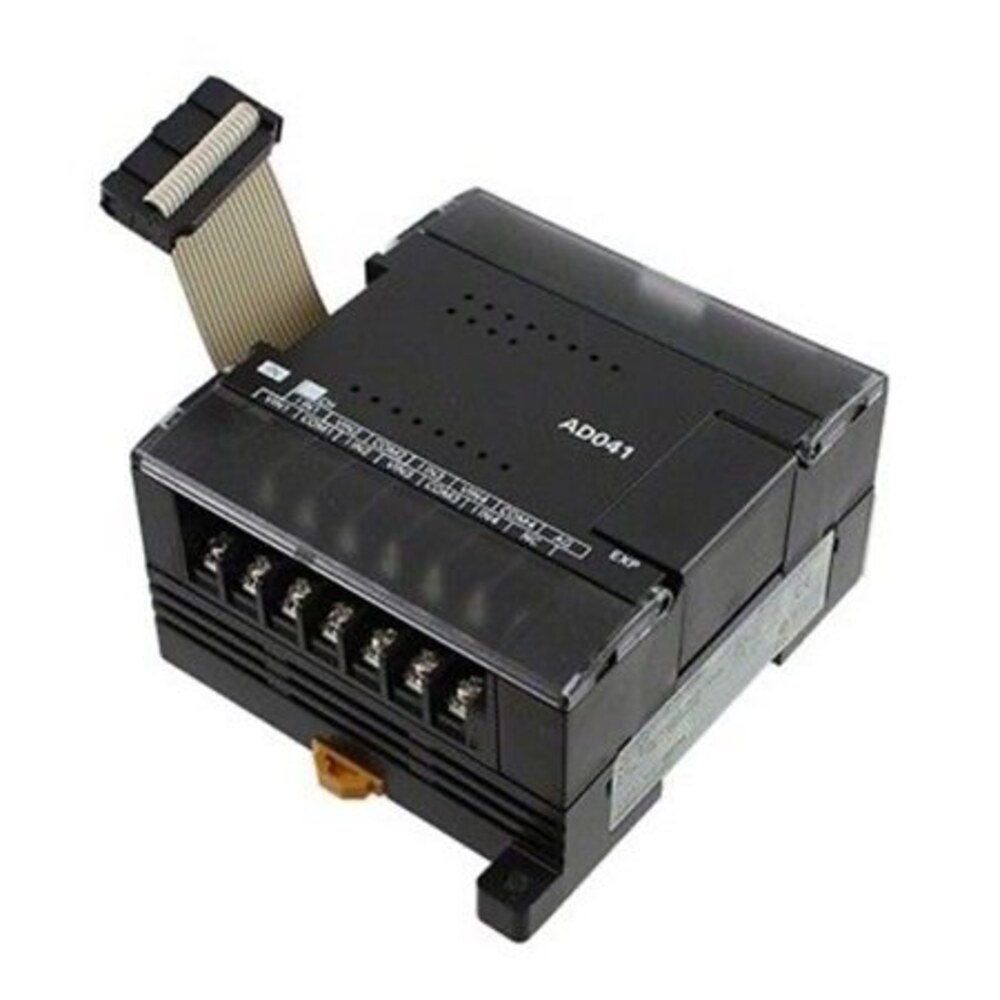

OMRON CP1W-DA041 Analogue Expansion Unit
- Brand
- OMRON
- Model
- CP1W-DA041
- GEARWELL SKU
- GWP-000000485
- Category
- Industrial Automation Parts
Key specifications
- Overall accuracy
- 0.4% full scale at 25 °C; 0.8% from 0 to 55 °C
- Resolution
- 1/6000 full scale
- Product type
- Analog output unit
- Analog output points
- 4
- Output ranges
- 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CP1W-DA041 is a CP1W Expansion Unit with 4 analog outputs, set to 1 to 5 V, 0 to 10 V, −10 to 10 V, 0 to 20 mA or 4 to 20 mA. Resolution is 1/6000 (full scale) and conversion takes 2 ms per point (8 ms for all points), with an overall accuracy of 0.4% full scale at 25°C. Voltage outputs need a load of 2 kΩ min. and current outputs a load of 350 Ω max.; outputs are isolated from the internal circuits by photocouplers. It draws 80 mA max. at 5 VDC and 124 mA max. at 24 VDC.
Technical reference
| Product name | OMRON CP1W-DA041 Analogue Expansion Unit |
|---|---|
| Brand | OMRON |
| Model | CP1W-DA041 |
| Category | Industrial Automation Parts |
| Overall accuracy | 0.4% full scale at 25 °C; 0.8% from 0 to 55 °C |
| Resolution | 1/6000 full scale |
| Product type | Analog output unit |
| Analog output points | 4 |
| Output ranges | 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA |
| Allowable load | 2 kΩ min. (voltage); 350 Ω max. (current) |
| Conversion time | 2 ms/point; 8 ms/all points |
| Current consumption | 80 mA at 5 VDC; 124 mA at 24 VDC |
