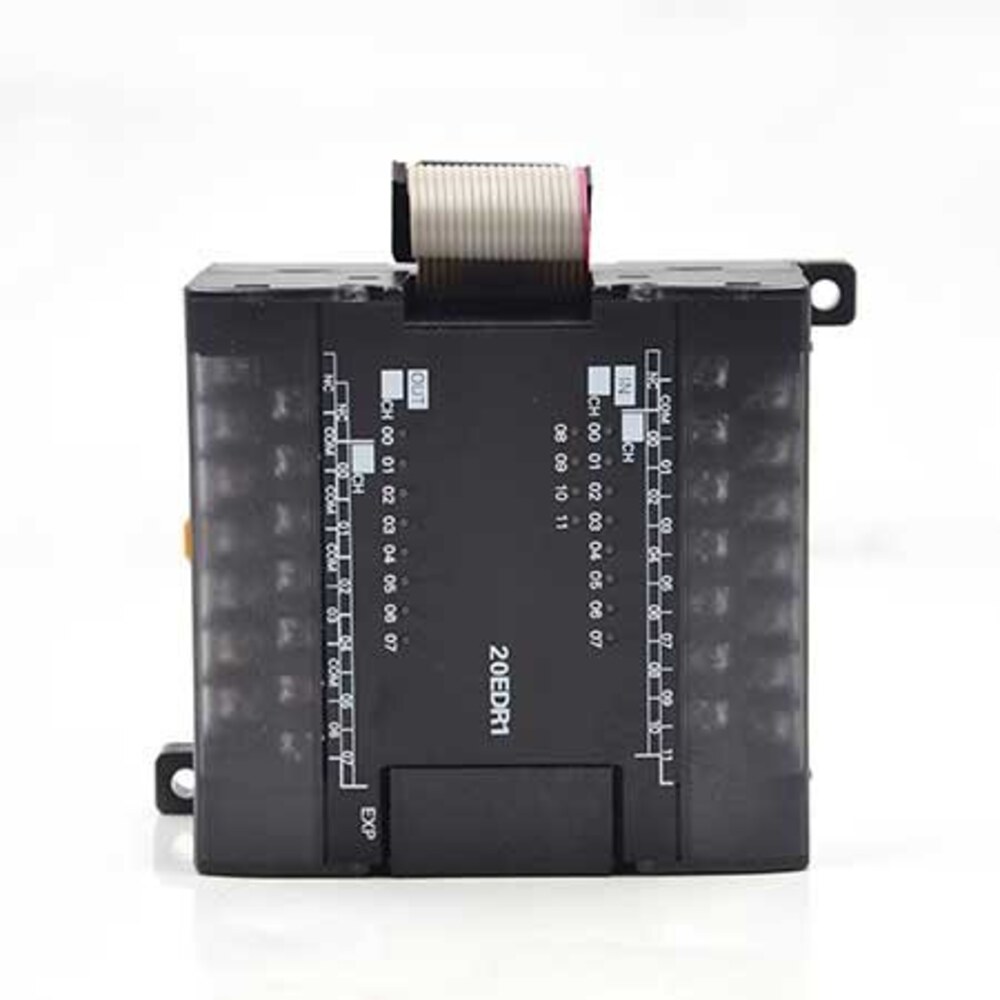

OMRON CP1W-20EDR1 Expansion I/O Unit
- Brand
- OMRON
- Model
- CP1W-20EDR1
- GEARWELL SKU
- GWP-000001096
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 300 g
- Output type
- Relay
- Input points
- 12
- Product type
- Expansion I/O unit
- Input voltage
- 24 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CP1W-20EDR1 is a CP1W Expansion I/O Unit with 12 inputs at 24 VDC and 8 relay outputs. The inputs take 5 mA typical at an input impedance of 4.7 kΩ, with an ON voltage of 14.4 VDC min. The relay outputs switch 2 A at 250 VAC or 24 VDC (4 A per common), with 15 ms max. ON and OFF response times and an electrical life of 150,000 operations at 24 VDC resistive load. It draws 0.103 A at 5 V and 0.044 A at 24 V.
Technical reference
| Product name | OMRON CP1W-20EDR1 Expansion I/O Unit |
|---|---|
| Brand | OMRON |
| Model | CP1W-20EDR1 |
| Category | Industrial Automation Parts |
| Weight | 300 g |
| Output type | Relay |
| Input points | 12 |
| Product type | Expansion I/O unit |
| Input voltage | 24 VDC |
| Output points | 8 |
| 5 V current consumption | 0.103 A |
| 24 V current consumption | 0.044 A |
