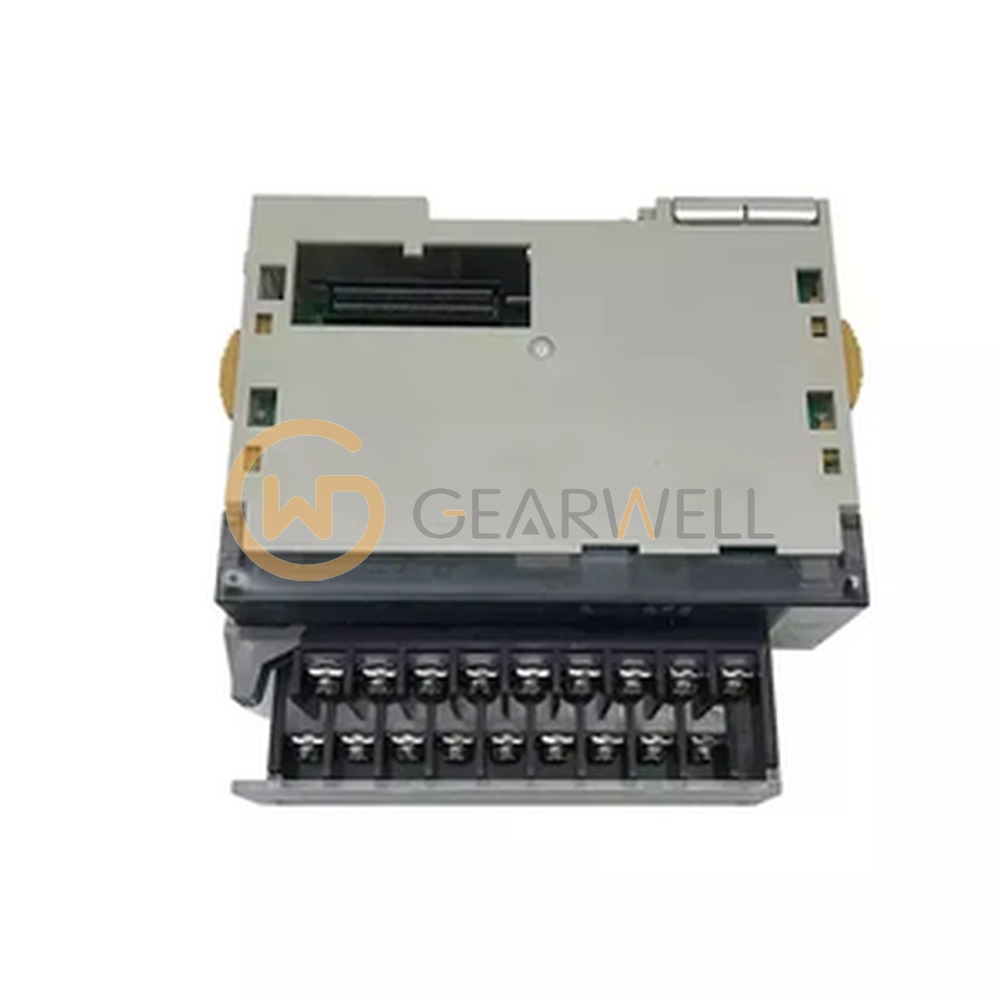

OMRON CJ1W-MAD42 Analog I/O Unit

Product overview

The OMRON CJ1W-MAD42 is a CJ-series Special I/O Unit with 4 analog inputs and 2 analog outputs, each set separately to 1 to 5 V, 0 to 5 V, 0 to 10 V, −10 to 10 V or 4 to 20 mA. Resolution is 4,000/8,000 with a conversion period of 1.0 ms or 500 μs per point; accuracy at 25°C is ±0.2% of F.S. for inputs and ±0.3% of F.S. for outputs. Besides mean value processing, peak hold, disconnection detection and output hold, it has a ratio conversion function. It draws 580 mA max. at 5 V DC, uses an 18-point detachable terminal block (M3 screws), measures 31 × 90 × 65 mm and weighs 150 g max.
