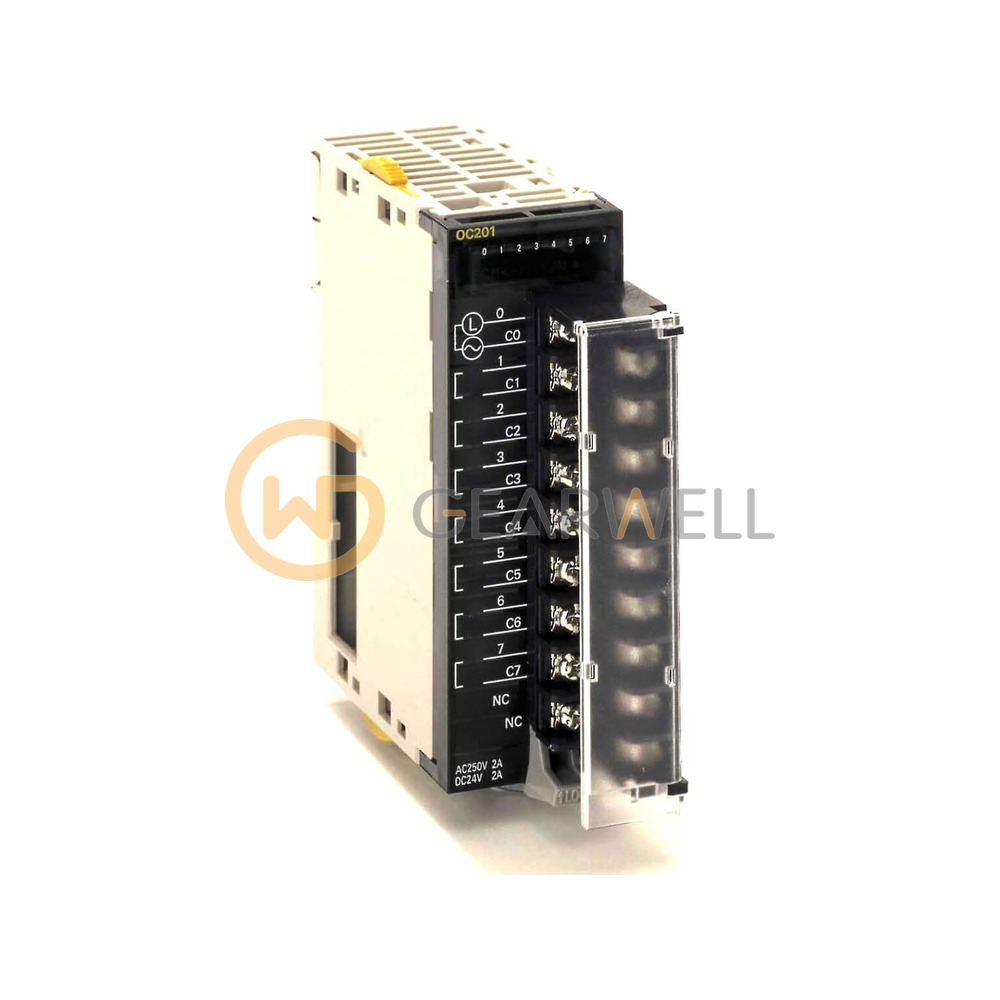

OMRON CJ1W-OC201 CJ-Series Relay Output Unit
- Brand
- OMRON
- Model
- CJ1W-OC201
- GEARWELL SKU
- GWP-000006726
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8
- Rated load
- 250 V AC or 24 V DC, 2 A
- Output type
- Relay
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-OC201 is a CJ-series basic I/O unit with 8 relay contact outputs as independent contacts, wired through a removable terminal block. Each output switches up to 2 A at 250 VAC or 24 VDC (16 A per Unit), with a minimum switching capacity of 1 mA at 5 VDC. Relay electrical life is 150,000 operations at 24 VDC resistive load and mechanical life 20,000,000 operations; ON and OFF response times are 15 ms max. The relays cannot be replaced. It draws 90 mA at 5 VDC and up to 48 mA at 24 VDC and weighs 140 g max.
Technical reference
| Product name | OMRON CJ1W-OC201 CJ-Series Relay Output Unit |
|---|---|
| Brand | OMRON |
| Model | CJ1W-OC201 |
| Category | PLCs & I/O |
| Outputs | 8 |
| Rated load | 250 V AC or 24 V DC, 2 A |
| Output type | Relay |
