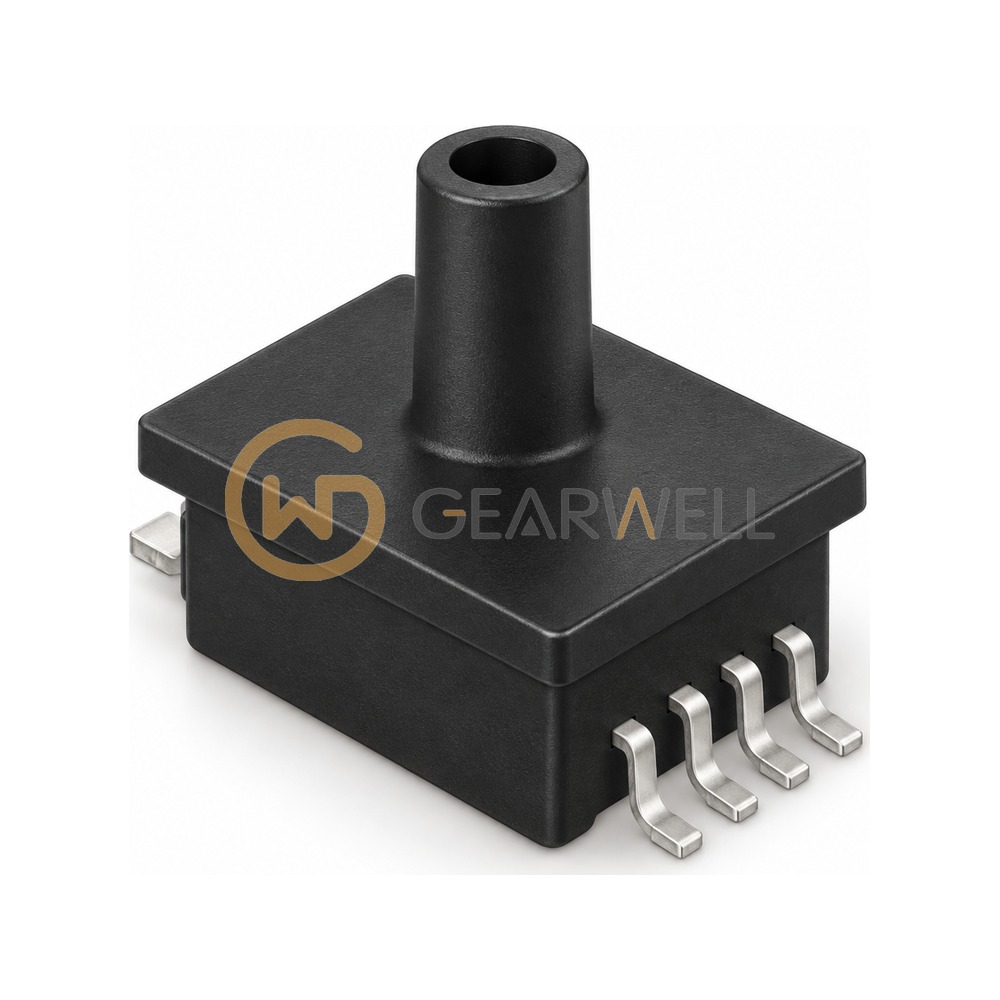

NXP MPXM2051GS 50 kPa Temperature Compensated Pressure Sensor
- Brand
- NXP
- Model
- MPXM2051GS
- GEARWELL SKU
- GWP-000015352
- Category
- Pressure, Flow & Temperature
Key specifications
- Linearity
- +/-0.3 %VFSS
- Sensitivity
- 0.8 mV/kPa
- Overpressure
- 200 kPa
- Pressure type
- Gauge, single port
- Response time
- 1.0 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NXP MPXM2051GS 50 kPa Temperature Compensated Pressure Sensor |
|---|---|
| Brand | NXP |
| Model | MPXM2051GS |
| Category | Pressure, Flow & Temperature |
| Linearity | +/-0.3 %VFSS |
| Sensitivity | 0.8 mV/kPa |
| Overpressure | 200 kPa |
| Pressure type | Gauge, single port |
| Response time | 1.0 ms |
| Pressure range | 0 - 50 kPa |
| Supply voltage | 10 (typ.) - 16 (max.) V DC |
| Full scale span | 40 (38.5 - 41.5) mV |
| Temperature compensation | 0 to +85 °C |
