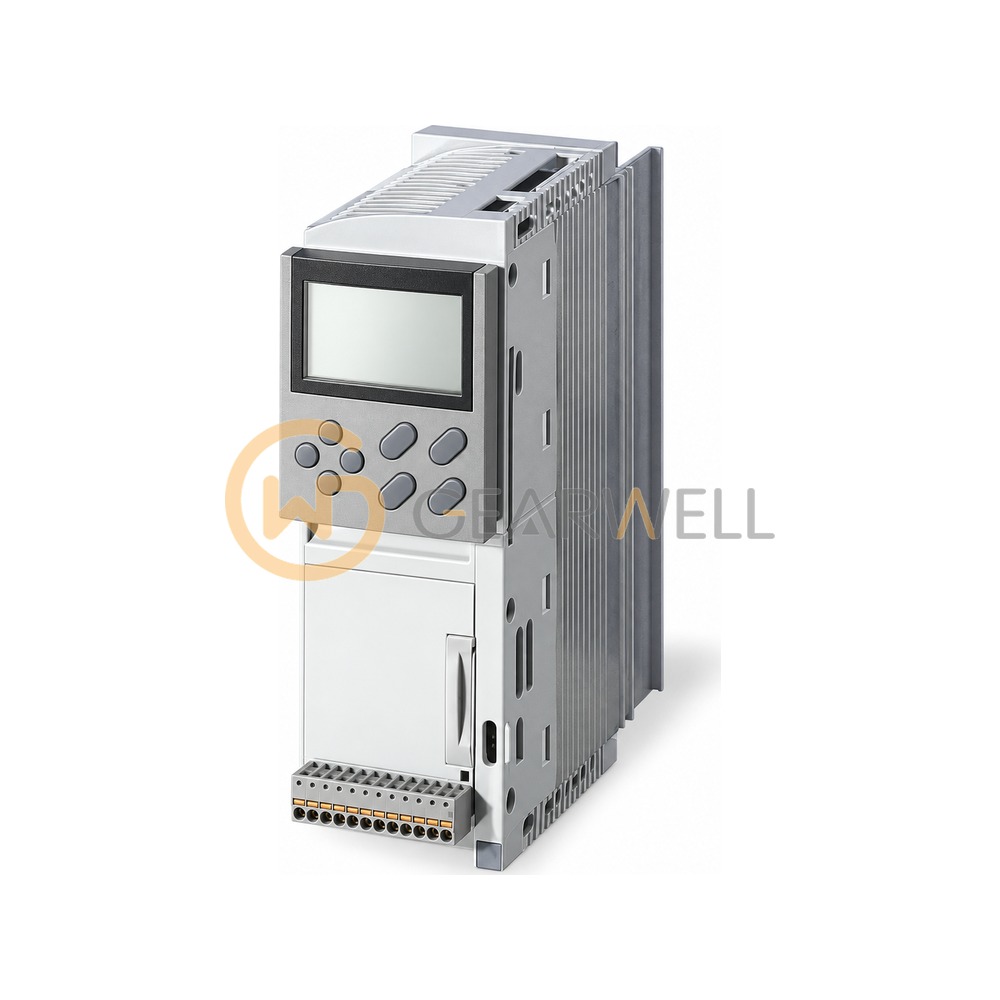

LENZE E82EV402K4C000 8200 vector Frequency Inverter 4 kW 400 V
- Brand
- LENZE
- Model
- E82EV402K4C000
- GEARWELL SKU
- GWP-000013262
- Category
- Variable Frequency Drives
Key specifications
- Series
- 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV113)
- Weight
- 2.9 kg
- Rated power
- 4.0 kW
- Variant "0xx"
- with integrated EMC filter (x4x would be the safe torque off variant)
- Mains voltage
- 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE E82EV402K4C000 8200 vector Frequency Inverter 4 kW 400 V |
|---|---|
| Brand | LENZE |
| Model | E82EV402K4C000 |
| Category | Variable Frequency Drives |
| Series | 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV113) |
| Weight | 2.9 kg |
| Rated power | 4.0 kW |
| Variant "0xx" | with integrated EMC filter (x4x would be the safe torque off variant) |
| Mains voltage | 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V |
| Type key decoded | E82 + E = built-in unit + V = vector + 402 = 4 kW + K + 4 = 400/500 V + C = device generation |
| Code suffix "000" last digit | as collected; not listed in the official type key |
| Rated output current IN / Imax (60 s) | 9.5 / 14.2 A |
| Rated mains current without / with mains choke | 12.3 / 8.8 A |
