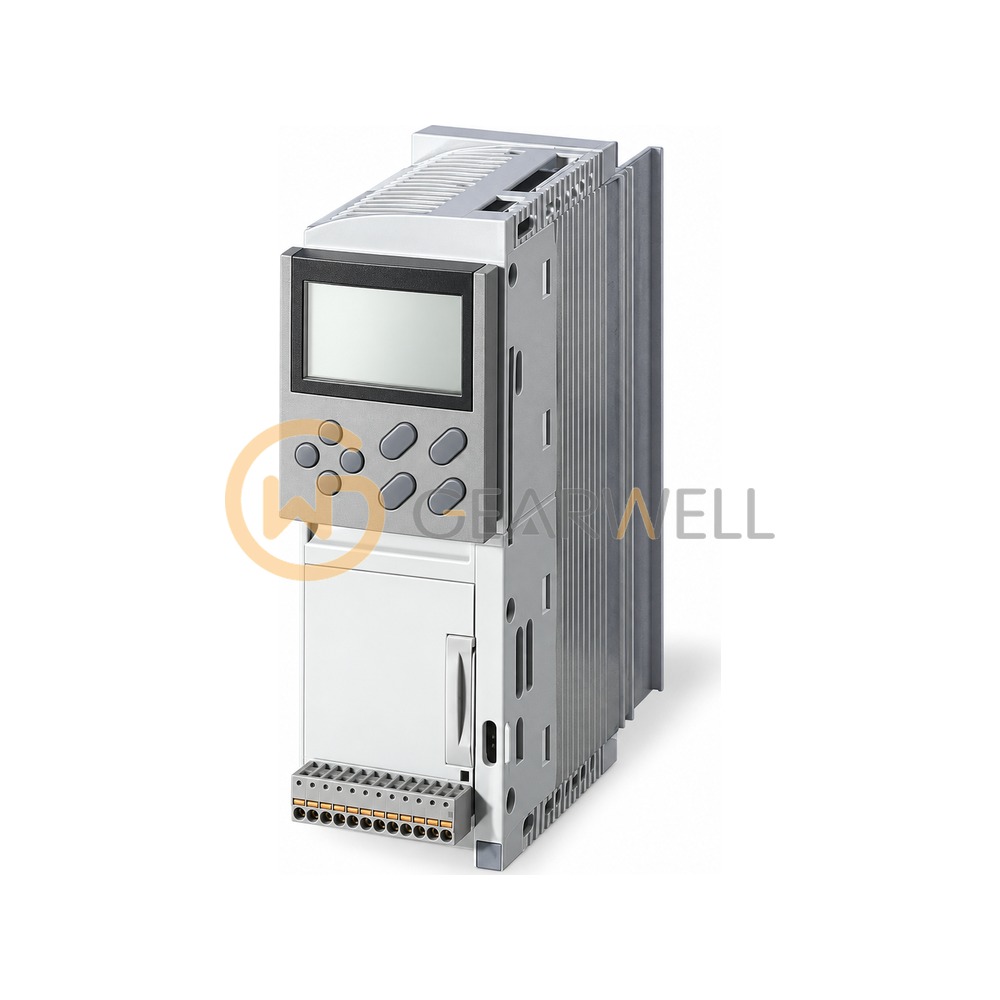

LENZE E82EV222K2B 8200 vector Frequency Inverter 2.2 kW 230 V

Key specifications

Series: 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222)
Rated power: 2.2 kW
Mains voltage: 1/N/PE or 3/PE AC 230/240 V (180 V -0 % ... 264 V +0 %), 45 ... 65 Hz; DC 325 V
Variant options: 0xx = integrated EMC filter / 2xx = without EMC filter / x4x = safe torque off (specify on order)
Type key decoded: E82 + E = built-in unit + V = vector + 222 = 2.2 kW + K + 2 = 230 V

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	LENZE E82EV222K2B 8200 vector Frequency Inverter 2.2 kW 230 V
Brand	LENZE
Model	E82EV222K2B
Category	Variable Frequency Drives
Series	8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222)
Rated power	2.2 kW
Mains voltage	1/N/PE or 3/PE AC 230/240 V (180 V -0 % ... 264 V +0 %), 45 ... 65 Hz; DC 325 V
Variant options	0xx = integrated EMC filter / 2xx = without EMC filter / x4x = safe torque off (specify on order)
Type key decoded	E82 + E = built-in unit + V = vector + 222 = 2.2 kW + K + 2 = 230 V
Device generation "B"	as collected; current Lenze documentation lists only generation C (E82EV222K2C) for 0.25 ... 11 kW
Rated output current IN / Imax (60 s)	9.5 / 14.2 A
Rated mains current with mains choke	18.0 (1-phase) / 9.0 (3-phase) A
