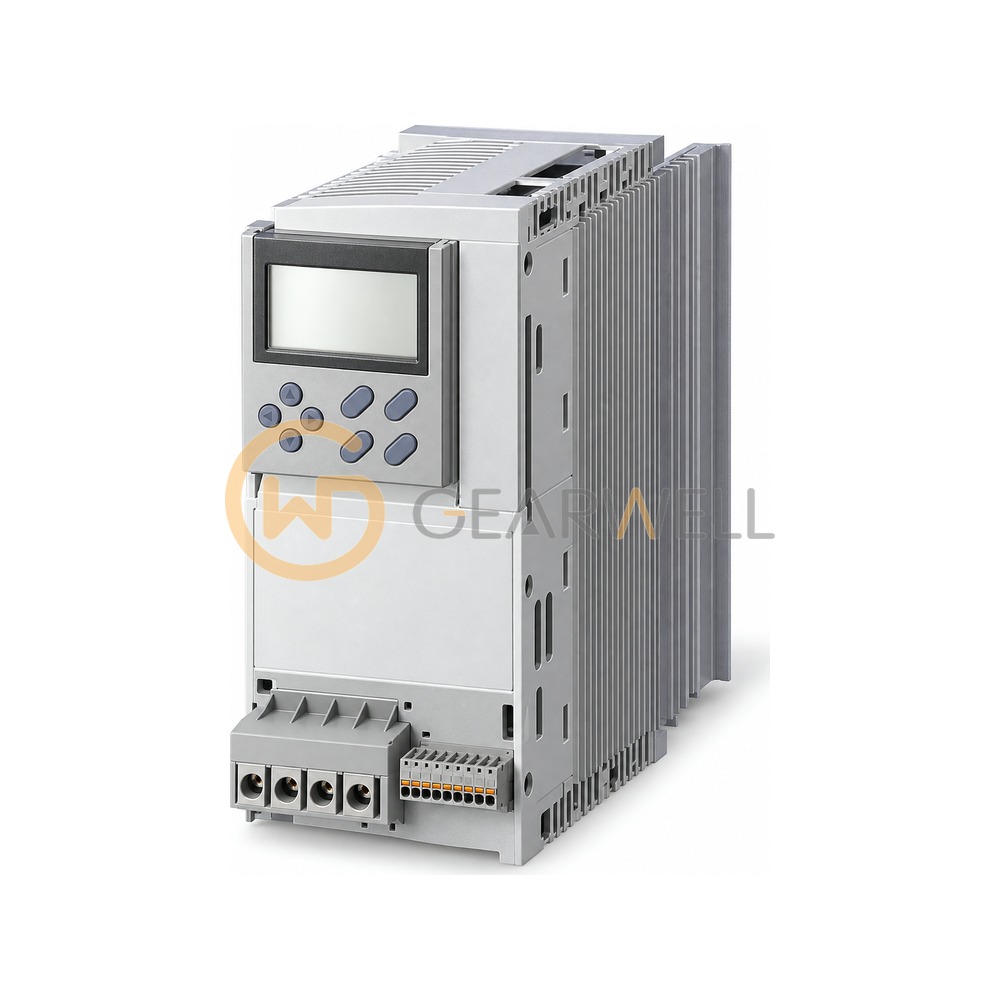

LENZE E82EV153K4B201 8200 vector Frequency Inverter 15 kW 400 V
- Brand
- LENZE
- Model
- E82EV153K4B201
- GEARWELL SKU
- GWP-000013260
- Category
- Variable Frequency Drives
Key specifications
- Series
- 8200 vector (15 ... 90 kW, mounting instructions EDK82EV903)
- Weight
- 13.5 kg
- Rated power
- 15 kW
- Variant "2xx"
- without integrated filters (1xx = for IT systems, 3xx = with footprint mains filter, x4x = safe torque off)
- Mains voltage
- 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE E82EV153K4B201 8200 vector Frequency Inverter 15 kW 400 V |
|---|---|
| Brand | LENZE |
| Model | E82EV153K4B201 |
| Category | Variable Frequency Drives |
| Series | 8200 vector (15 ... 90 kW, mounting instructions EDK82EV903) |
| Weight | 13.5 kg |
| Rated power | 15 kW |
| Variant "2xx" | without integrated filters (1xx = for IT systems, 3xx = with footprint mains filter, x4x = safe torque off) |
| Mains voltage | 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V |
| Type key decoded | E82 + E = built-in unit + V = vector + 153 = 15 kW + K + 4 = 400/500 V + B = device generation |
| Code suffix "201" last digit "1" | as collected; not listed in the official type key |
| Rated output current IN / Imax (60 s) | 32 / 48 A |
| Rated mains current without / with mains choke | 43.5 / 29 A |
