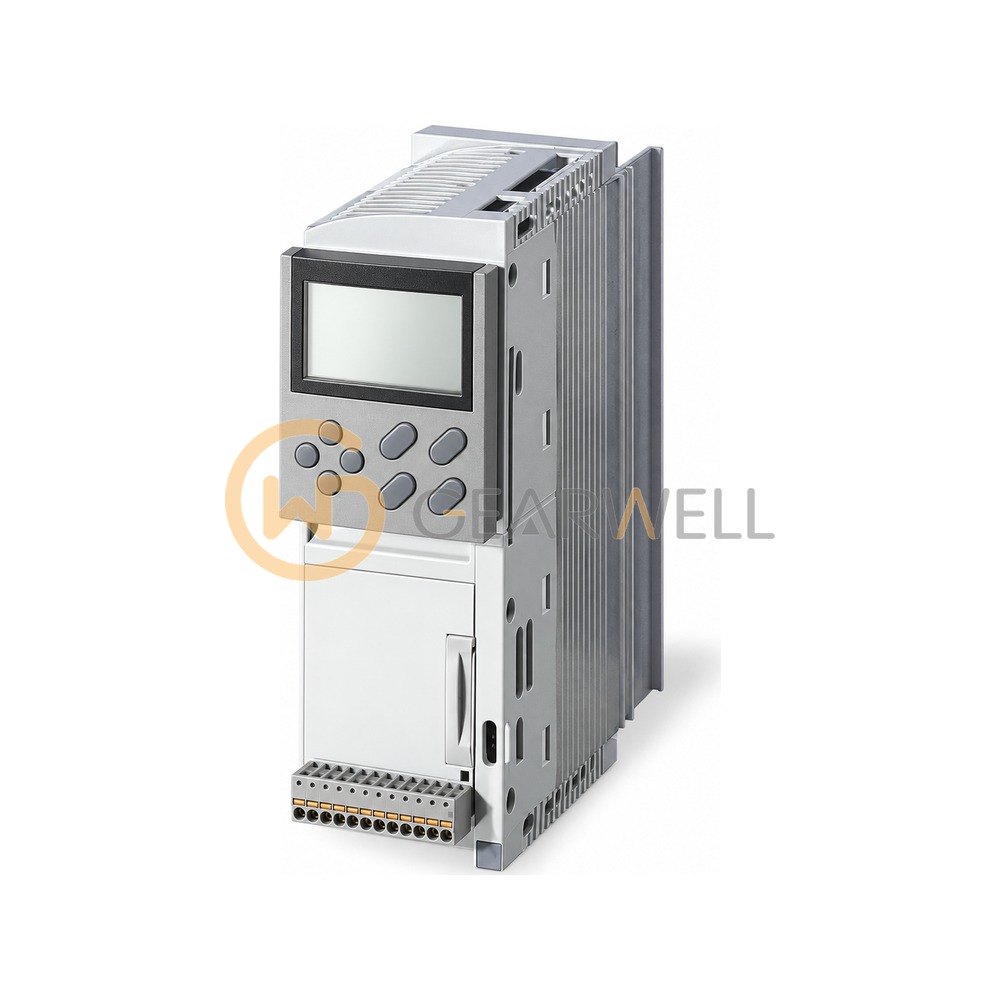

LENZE E82EV751K2B 8200 vector Frequency Inverter 0.75 kW 230 V
- Brand
- LENZE
- Model
- E82EV751K2B
- GEARWELL SKU
- GWP-000013264
- Category
- Variable Frequency Drives
Key specifications
- Series
- 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222)
- Weight
- 1.2 kg
- Rated power
- 0.75 kW
- Mains voltage
- 1/N/PE or 3/PE AC 230/240 V (180 V -0 % ... 264 V +0 %), 45 ... 65 Hz; DC 325 V
- Variant options
- 0xx = integrated EMC filter / 2xx = without EMC filter / x4x = safe torque off (specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE E82EV751K2B 8200 vector Frequency Inverter 0.75 kW 230 V |
|---|---|
| Brand | LENZE |
| Model | E82EV751K2B |
| Category | Variable Frequency Drives |
| Series | 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222) |
| Weight | 1.2 kg |
| Rated power | 0.75 kW |
| Mains voltage | 1/N/PE or 3/PE AC 230/240 V (180 V -0 % ... 264 V +0 %), 45 ... 65 Hz; DC 325 V |
| Variant options | 0xx = integrated EMC filter / 2xx = without EMC filter / x4x = safe torque off (specify on order) |
| Type key decoded | E82 + E = built-in unit + V = vector + 751 = 0.75 kW + K + 2 = 230 V |
| Device generation "B" | as collected; current Lenze documentation lists only generation C (E82EV751K2C) for 0.25 ... 11 kW |
| Rated output current IN / Imax (60 s) | 4.0 / 6.0 A |
| Rated mains current without / with mains choke | 9.0 / 7.5 (1-phase); 5.2 / 3.6 (3-phase) A |
