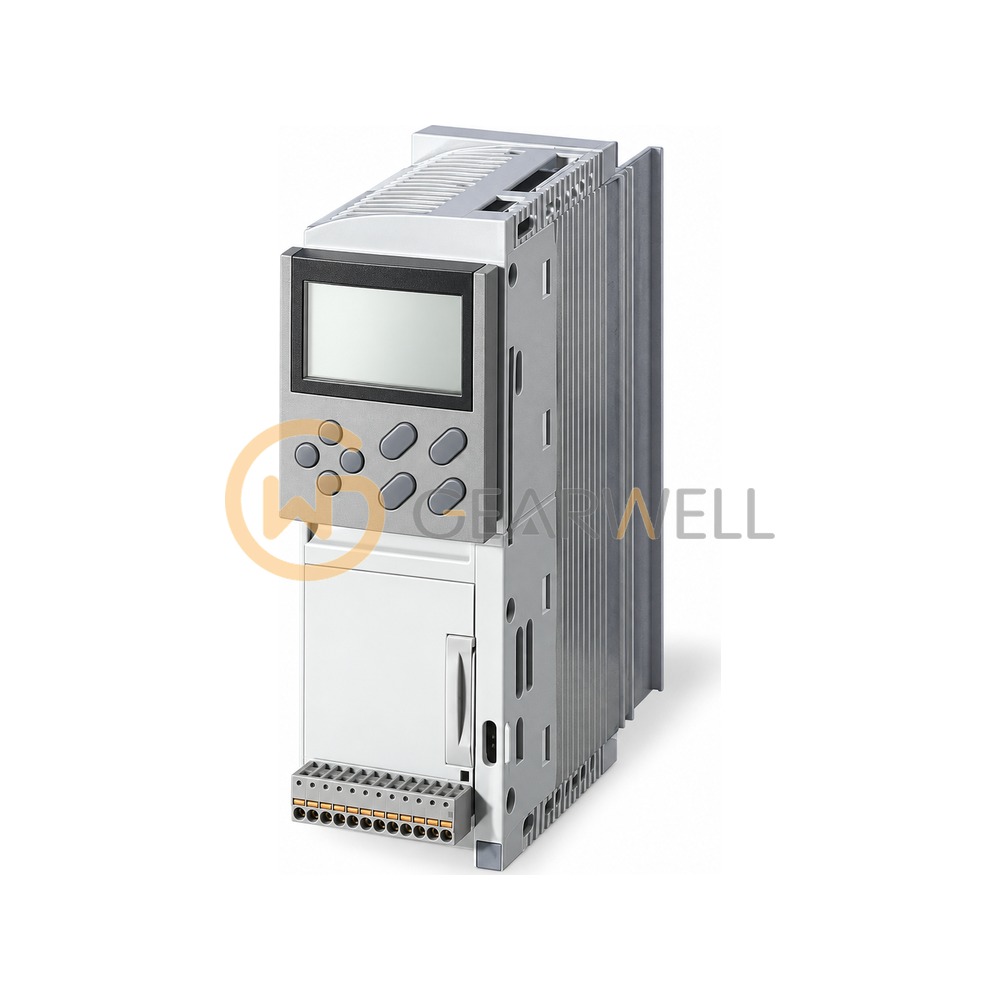

LENZE E82EV751-4C040 8200 vector Frequency Inverter 0.75 kW 400 V
- Brand
- LENZE
- Model
- E82EV751-4C040
- GEARWELL SKU
- GWP-000013263
- Category
- Variable Frequency Drives
Key specifications
- Series
- 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222)
- Rated power
- 0.75 kW
- Variant "04x"
- 0xx = integrated EMC filter; x4x = safe torque off (STO, up to PL d)
- Mains voltage
- 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V
- Type key decoded
- E82 + E = built-in unit + V = vector + 751 = 0.75 kW + 4 = 400/500 V + C = device generation
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE E82EV751-4C040 8200 vector Frequency Inverter 0.75 kW 400 V |
|---|---|
| Brand | LENZE |
| Model | E82EV751-4C040 |
| Category | Variable Frequency Drives |
| Series | 8200 vector (0.25 ... 11 kW, mounting instructions EDK82EV222) |
| Rated power | 0.75 kW |
| Variant "04x" | 0xx = integrated EMC filter; x4x = safe torque off (STO, up to PL d) |
| Mains voltage | 3/PE AC 400 V (320 V -0 % ... 440 V +0 %), 45 ... 65 Hz; DC 565 V |
| Type key decoded | E82 + E = built-in unit + V = vector + 751 = 0.75 kW + 4 = 400/500 V + C = device generation |
| Rated output current IN / Imax (60 s) | 2.4 / 3.6 A |
| Code "-" in place of "K" and last digit "0" | as collected; not listed in the official type key |
| Rated mains current without / with mains choke | 3.3 / 2.3 A |
