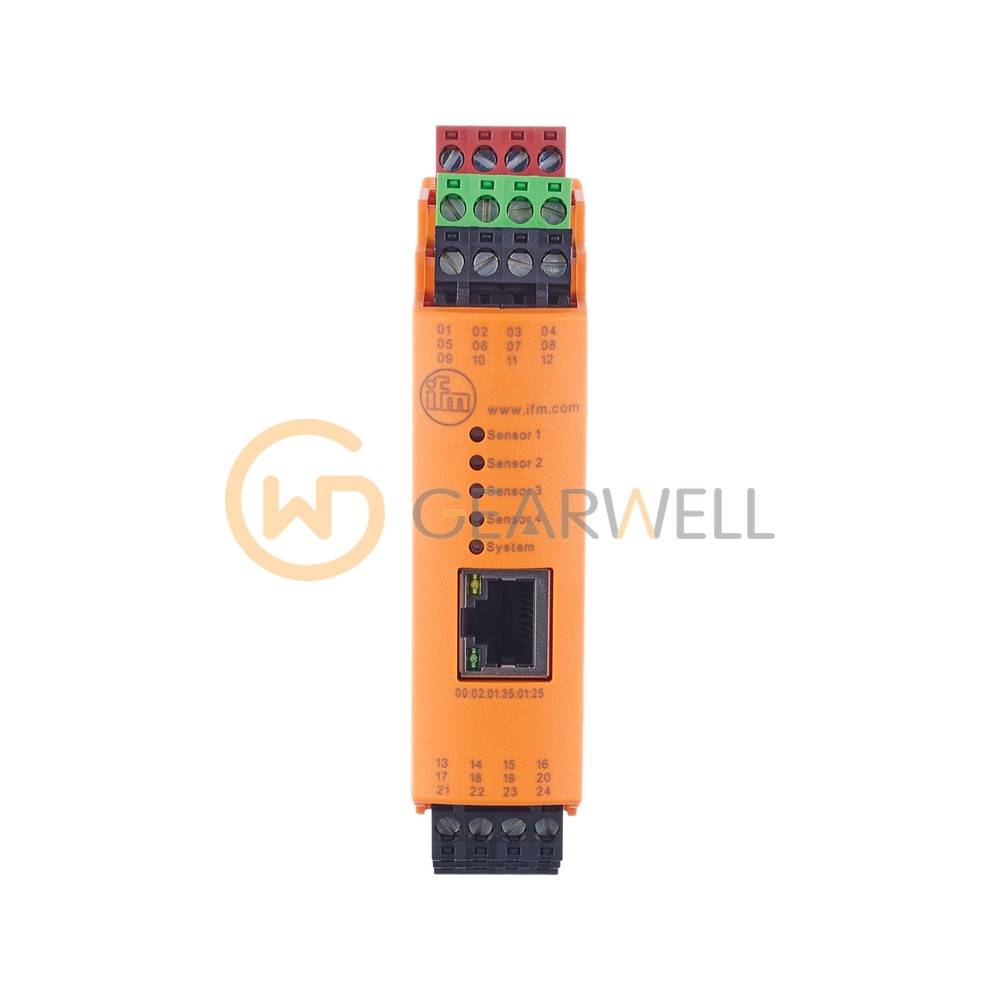

IFM VSE003 Diagnostic Electronics for Vibration Sensors
- Brand
- IFM
- Model
- VSE003
- GEARWELL SKU
- GWP-000008427
- Category
- Pressure, Flow & Temperature
Key specifications
- Weight
- 327 g
- Materials
- Housing: PA
- Dimensions
- 114.2 x 25.4 x 105.5 mm
- Protection
- IP 20
- Operating voltage
- 24 DC (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm VSE003 (DIAGNOSTIC ELECTRONICS) is diagnostic electronics for continuous vibration monitoring, mounted on a DIN rail and set up with the VES004 PC software. It has four sensor inputs (S1…S4) for 0…10 mA, IEPE or 4…20 mA signals with 16-bit resolution and inputs up to 12000 Hz, an HTL pulse input up to 100000 Hz, configurable PNP switching outputs and a 4…20 mA analog output. It connects over Ethernet (TCP/IP, 10/100 Mbit/s, RJ45), has a real-time clock and a history memory for 881664 data records, runs on 24 V DC, measures 114.2 x 25.4 x 105.5 mm and is rated IP20 for 0…70 °C ambient.
Technical reference
| Product name | IFM VSE003 Diagnostic Electronics for Vibration Sensors |
|---|---|
| Brand | IFM |
| Model | VSE003 |
| Category | Pressure, Flow & Temperature |
| Weight | 327 g |
| Materials | Housing: PA |
| Dimensions | 114.2 x 25.4 x 105.5 mm |
| Protection | IP 20 |
| Operating voltage | 24 DC (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) V |
| Ambient temperature | 0...70 °C |
| Current consumption | 200 (24 V DC) mA |
| Communication interface | Ethernet |
