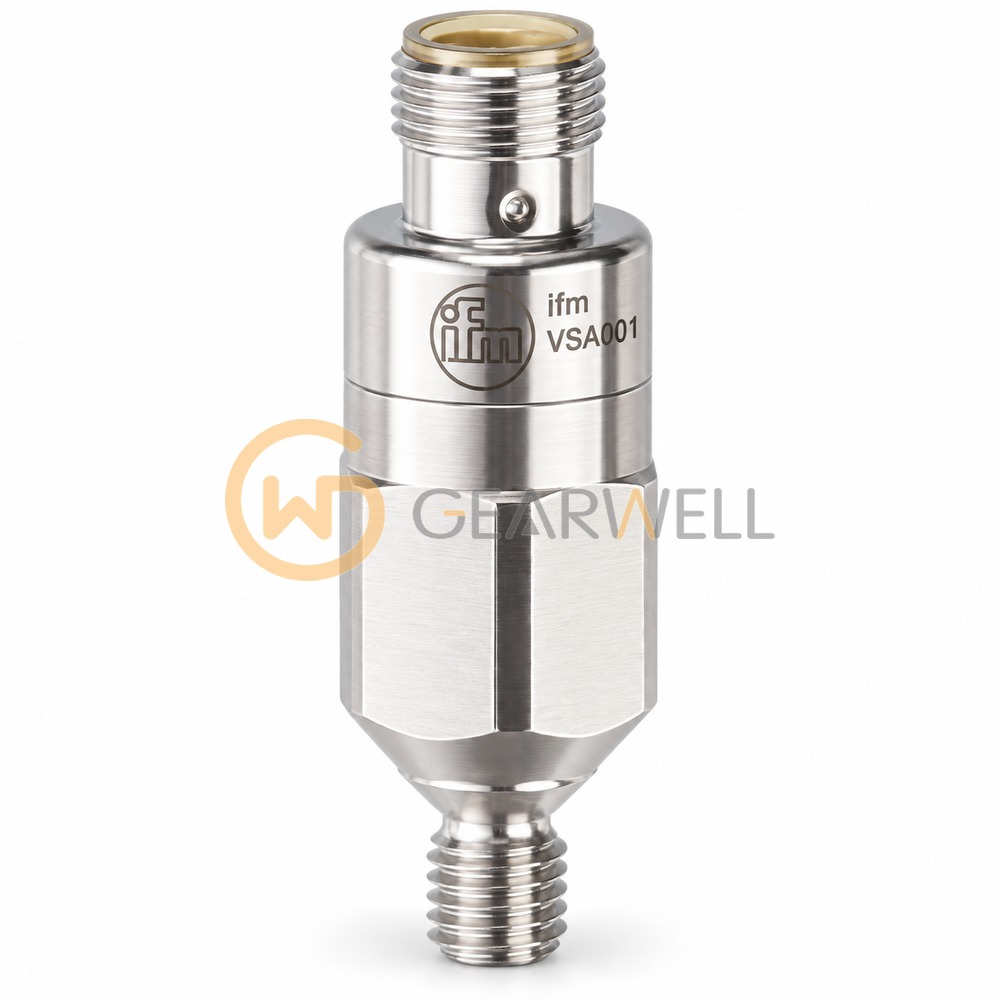

IFM VSA001 Vibration Acceleration Sensor
- Brand
- IFM
- Model
- VSA001
- GEARWELL SKU
- GWP-000004001
- Category
- Sensors & Instrumentation
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm VSA001 (VIBRATION SENSOR) is a capacitive MEMS accelerometer for connection to ifm VSE diagnostic electronics, measuring ±25 g over 1…6000 Hz with a sensitivity of 142 µA/g on a 0…10 mA output. It runs on 7.2…10.8 V DC, has a Ø 17 mm stainless steel (1.4404 / 316L) housing 53 mm long with an M8 x 1.25 mounting thread (tightening torque 8 Nm), connects through an M12 connector (A-coded, 4 contacts) for cable lengths up to 250 m and is rated IP67, IP68 and IP69K for -30…125 °C ambient. A conical washer is supplied.
Technical reference
| Product name | IFM VSA001 Vibration Acceleration Sensor |
|---|---|
| Brand | IFM |
| Model | VSA001 |
| Category | Sensors & Instrumentation |
