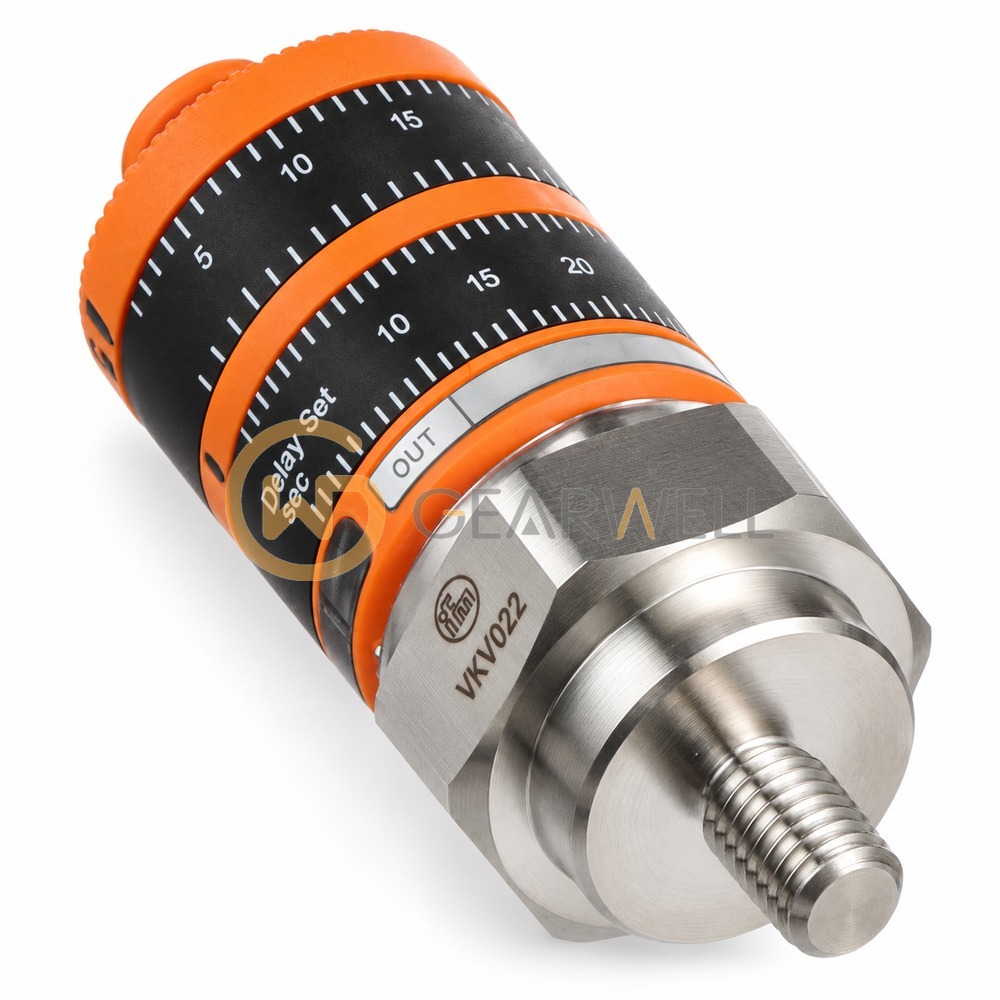

IFM VKV022 Vibration Monitor

Product overview

The ifm VKV022 (VIBRATION MONITOR) is a vibration monitor to DIN ISO 10816 with a MEMS sensor, measuring vibration velocity over 0…50 mm/s (RMS) in the 10…1000 Hz range. The switch point is set with a scaled setting ring; it has a normally closed PNP switching output rated at 500 mA and a 4…20 mA analog output, with a response time of 1…60 s and a measuring error under ±3 % of the final value. It mounts with an M8 x 1.25 thread (tightening torque 15 Nm), runs on 18…32 V DC, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…80 °C ambient.
