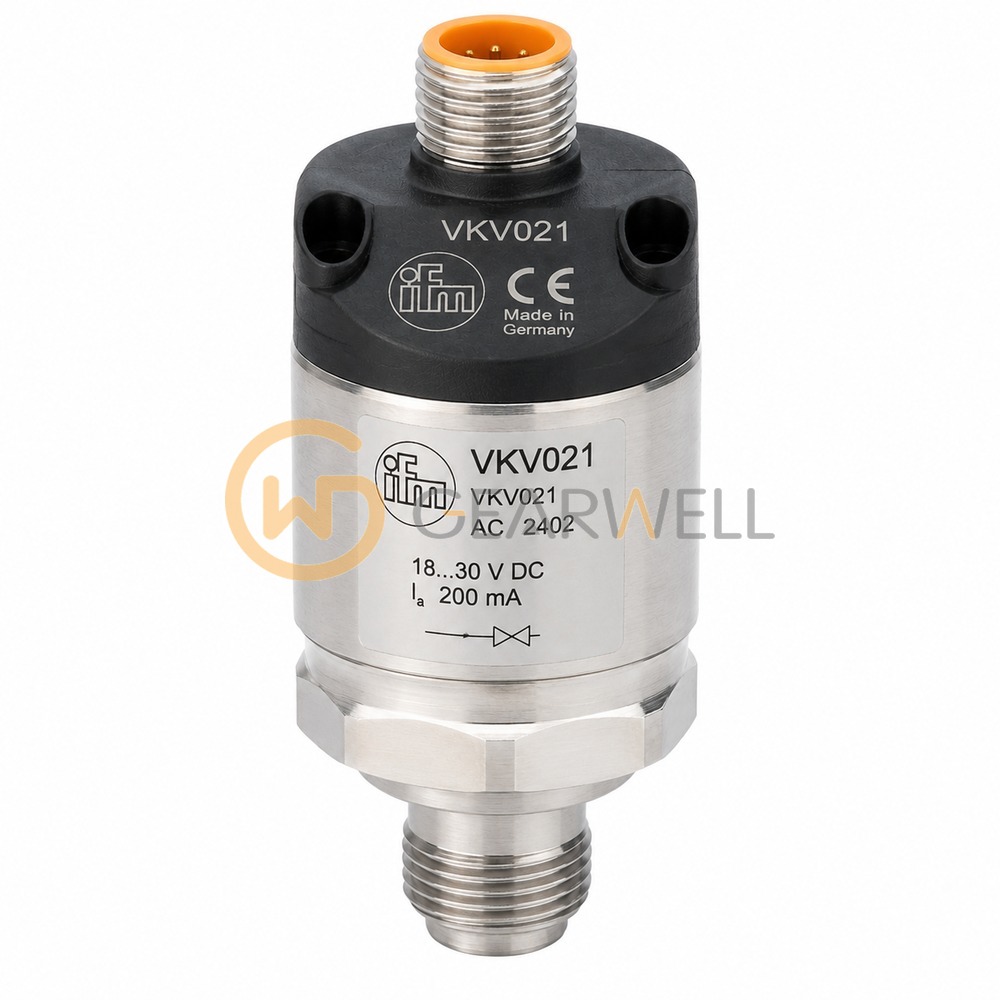

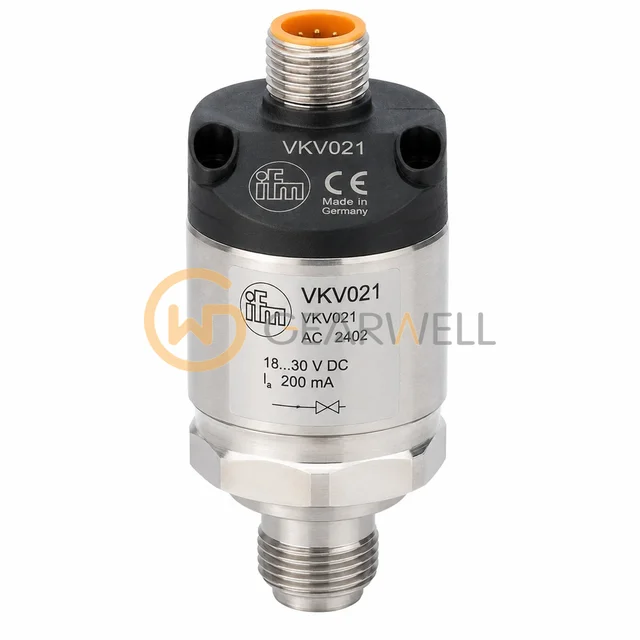

IFM VKV021 Vibration Monitor
- Brand
- IFM
- Model
- VKV021
- GEARWELL SKU
- GWP-000000524
- Category
- Pressure, Flow & Temperature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm VKV021 (VIBRATION MONITOR) is a vibration monitor to DIN ISO 10816 with a MEMS sensor, measuring vibration velocity over 0…25 mm/s (RMS) in the 10…1000 Hz range. The switch point is set with a scaled setting ring; it has a normally closed PNP switching output rated at 500 mA and a 4…20 mA analog output, with a response time of 1…60 s and a measuring error under ±3 % of the final value. It mounts with an M8 x 1.25 thread (tightening torque 15 Nm), runs on 18…32 V DC, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM VKV021 Vibration Monitor |
|---|---|
| Brand | IFM |
| Model | VKV021 |
| Category | Pressure, Flow & Temperature |
