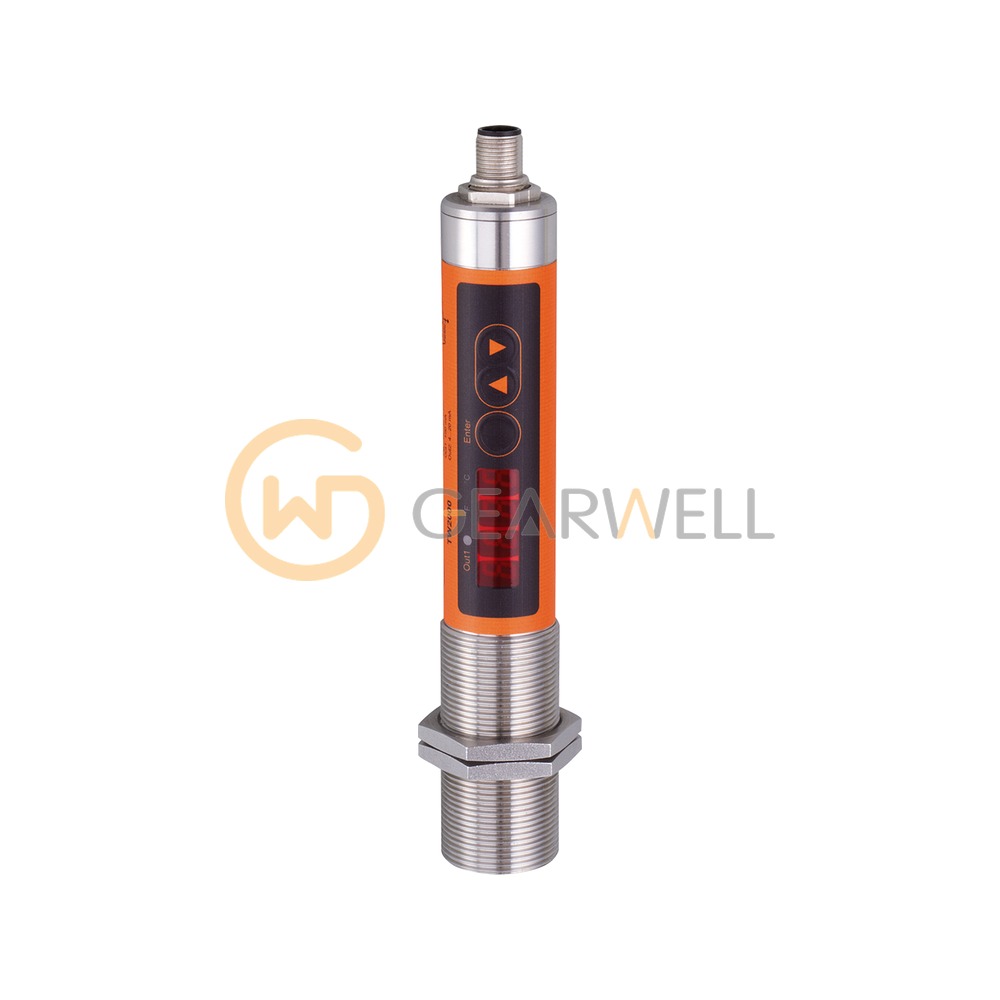

IFM TW2000 Infrared temperature sensor
- Brand
- IFM
- Model
- TW2000
- GEARWELL SKU
- GWP-000014137
- Category
- Pressure, Flow & Temperature
Key specifications
- Connector
- 1 x M12; coding: A; Contacts: 5
- Dimensions
- M30 x 1.5 / L = 189.5 mm
- Output signal
- switching signal; analog signal; IO-Link; (configurable)
- Response time
- 100 ms
- Measuring range
- 0...999.5 °C / 32...1831 °F
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm TW2000 (TW-030KLBM30-KFDKG/US) is an infrared temperature sensor with a measuring range of 0…999.5 °C, working in the 8…14 µm wavelength range with a response time of 100 ms. It provides 1 switching output (PNP), 1 analog output (4…20 mA) and IO-Link, with the switching output rated at 150 mA, runs on 18…32 V DC and connects through an M12 connector (A-coded, 5 contacts). ifm specifies an accuracy within ±1 % of the measured value, at least 2 K. The unit has an M30 x 1.5 thread, is 189.5 mm long and is rated IP65 for 0…65 °C ambient. ifm recommends a screened cable with the screen connected to the sensor housing; two lock nuts are supplied.
Technical reference
| Product name | IFM TW2000 Infrared temperature sensor |
|---|---|
| Brand | IFM |
| Model | TW2000 |
| Category | Pressure, Flow & Temperature |
| Connector | 1 x M12; coding: A; Contacts: 5 |
| Dimensions | M30 x 1.5 / L = 189.5 mm |
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Response time | 100 ms |
| Measuring range | 0...999.5 °C / 32...1831 °F |
| Operating voltage | 18...32 DC; (to SELV/PELV) V |
| Wave length range | 8...14 µm |
| Analog current output | 4...20 mA |
