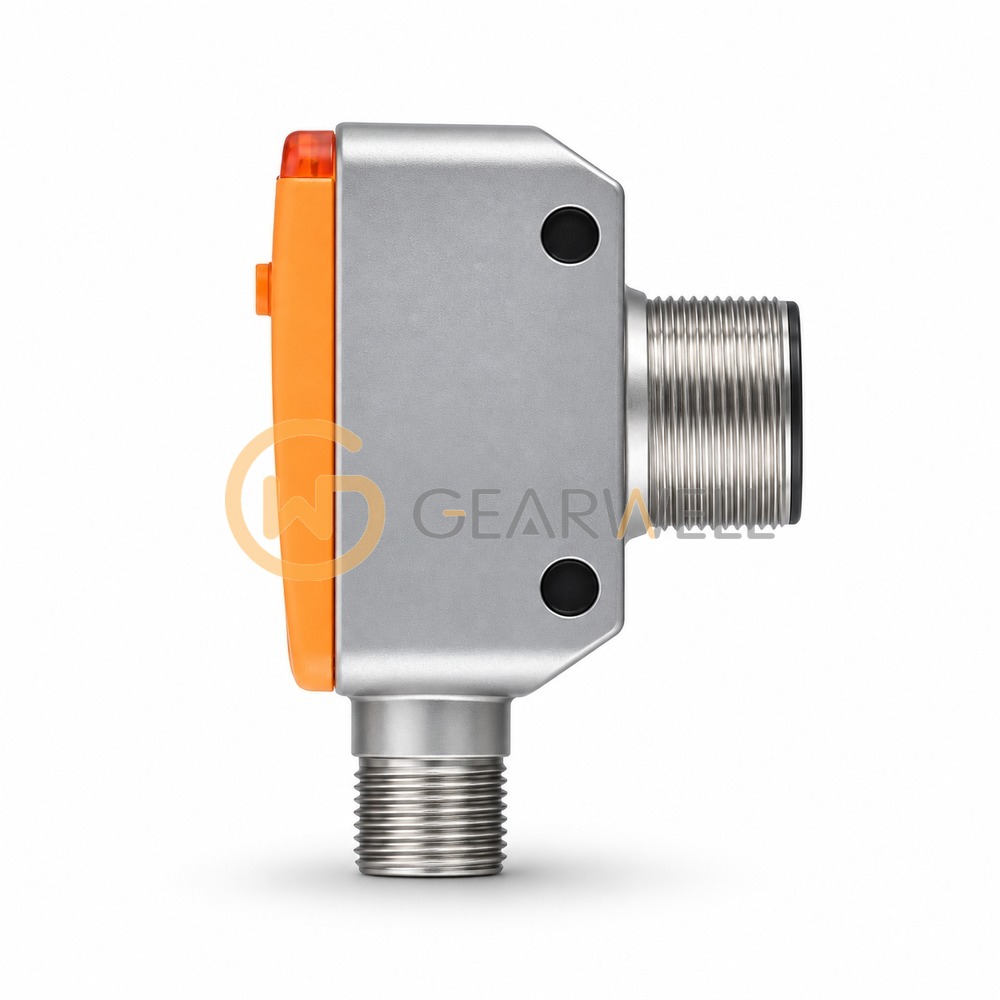

IFM UGT592 Ultrasonic Sensor
- Brand
- IFM
- Model
- UGT592
- GEARWELL SKU
- GWP-000000473
- Category
- Sensors & Instrumentation
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm UGT592 (UGQ00300EOKG/IO-Link/US) is an ultrasonic sensor in a housing measuring 53 x 20 x 37.7 mm. Its sensing range is 40…300 mm (target: 100 x 100 mm), with a blind zone of 40 mm, a 15° beam angle and a converter frequency of 300 kHz; temperature compensation is built in and switch points are taught. The PNP switching output is configurable as normally open or normally closed, rated at 100 mA and up to 8 Hz, on 10…30 V DC. The sensor has a stainless steel, PA and epoxy glass ceramic housing and connects through an M12 connector (A-coded, 4 contacts), and is rated IP67 for -20…70 °C ambient. It has UL approval under file E174191. Supplied with one stainless steel M18 lock nut.
Technical reference
| Product name | IFM UGT592 Ultrasonic Sensor |
|---|---|
| Brand | IFM |
| Model | UGT592 |
| Category | Sensors & Instrumentation |
