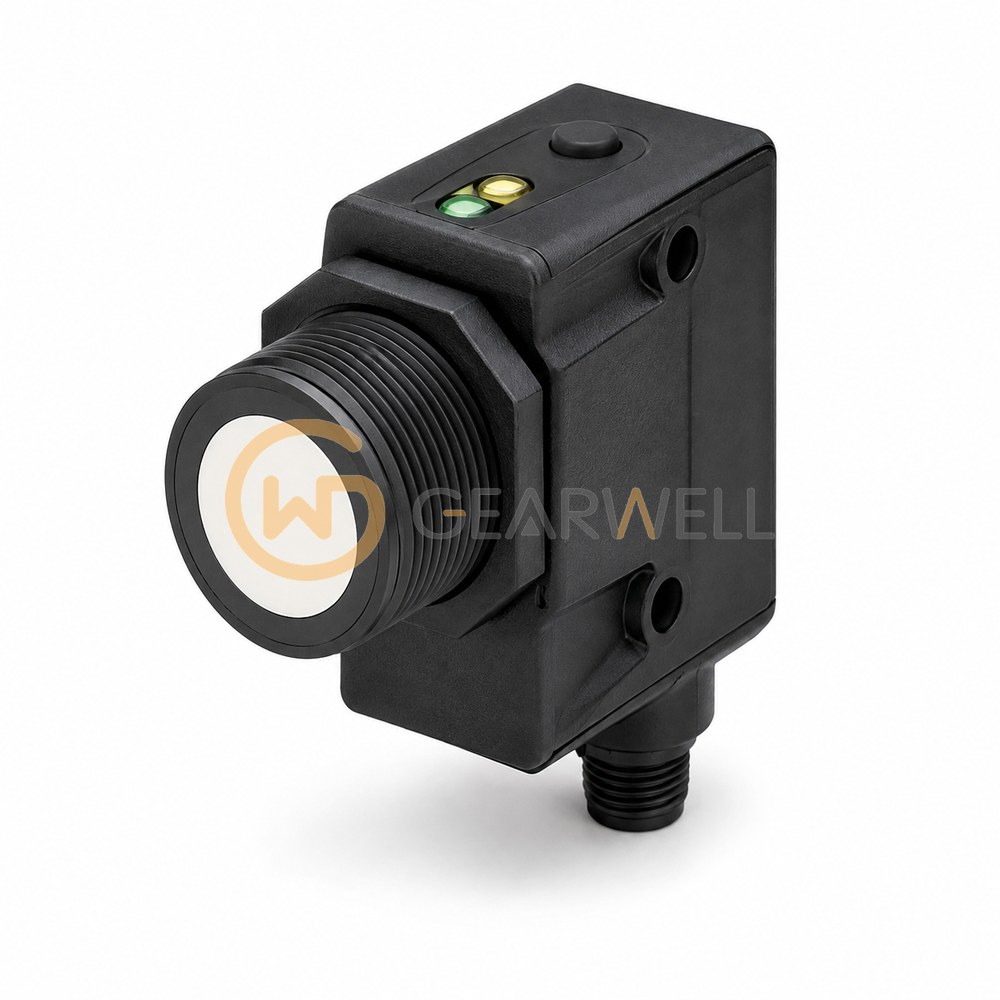

IFM UGT582 Ultrasonic sensor
- Brand
- IFM
- Model
- UGT582
- GEARWELL SKU
- GWP-000001549
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67
- Product type
- Ultrasonic sensor
- Output signal
- switching signal; analog signal
- Sensing range
- 60...800; (Target: 100 x 100 mm) mm
- Output function
- normally open / closed; (configurable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm UGT582 (UGQ00800E1KG/US) is an ultrasonic sensor in a housing measuring 53 x 20 x 37.7 mm. Its sensing range is 60…800 mm (target: 100 x 100 mm), with a blind zone of 60 mm, a 15° beam angle and a converter frequency of 230 kHz; temperature compensation is built in and switch points are taught. The PNP switching output is configurable as normally open or normally closed, rated at 100 mA and up to 5 Hz, plus a 4…20 mA analog output, on 10…30 V DC. The sensor has a stainless steel, PA and epoxy glass ceramic housing and connects through an M12 connector (A-coded, 4 contacts), and is rated IP67 for -20…70 °C ambient. It has UL approval under file E174191. Supplied with one stainless steel M18 lock nut.
Technical reference
| Product name | IFM UGT582 Ultrasonic sensor |
|---|---|
| Brand | IFM |
| Model | UGT582 |
| Category | Industrial Automation Parts |
| Protection | IP 67 |
| Product type | Ultrasonic sensor |
| Output signal | switching signal; analog signal |
| Sensing range | 60...800; (Target: 100 x 100 mm) mm |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC; (cULus - Class 2 source required) |
| Current consumption | < 35 mA |
